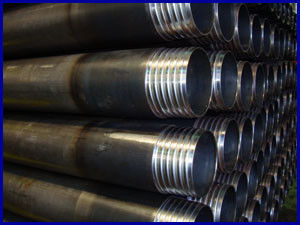

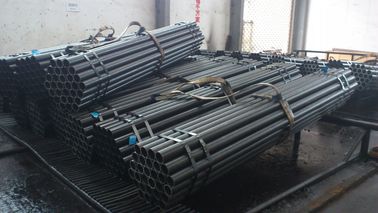

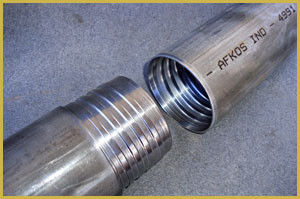

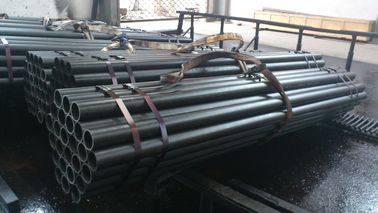

Large Diameter Mechanical Drill Steel Pipe , Hot rolled / Cold Drawn Steel Pipe

Basic Information
Model Number: GB/T9808-2008, JIS G3465-2006, ASTM A519
Detail Information
High Light:

oil drill pipe

,

cold drawn steel pipe


Product Description

Mining tubes with Alloy steel grade





Straightness, Concentricity, Mechanical Properties can meet the requirement of DCDMA (USA), BS4019 (UK), METRIC (SWEDEN)



Size range: O.D.:6-95mm     W.T.:1-10mm      L:max12000mm





Standard Producton Method Tube Size Tolerance
GB/T 9808-2008 Hot rolled OD (+1.0%D) +0.65
(-0.5%D) -0.35
WT ≤10 (+15%S)  +0.45
 (-10%S)  -0.35
>10 (+12.5%S, -10%S)
Cold drawn OD   ±0.50%D or ±0.20
WT   ±8%S or ±0.15
Q(N)/ XJY118-2010 Cold drawn OD OD ±0.40%D or ±0.20
WT WT ±7%S or ±0.15



Normal Sizes:
Designation Outside Diameter (mm) Inside Diameter (mm)
  Min Max Min Max
A Wireline 44.45 44.70 34.82 35.07
B Wireline 55.55 55.90 45.95 46.30
N Wireline 69.95 70.30 60.05 60.30
H Wireline 88.90 89.38 77.62 78.10
P Wireline 114.30 114.78 102.79 103.27



Mechanical Properties:
Stee Grade Tensile Strength
Mpa min
Yield Strength
Mpa min
Elongation
%  min
HRC Heat Treatment
T600 790 600 14 ~ N
T750 850 750 14 26-31 QT
T850 950 850 14 28-33 QT



Chemical composition
Stee Grade C Si Mn P max S max Cu max Cr Mo B
T600
(45MnMoB)
0.43-0.48 0.17-0.37 1.05-1.35 0.02 0.015 0.20 ~ 0.20-0.25 0.001-0.005
T750
(30CrMnSiA)
0.28-0.34 0.90-1.20 0.80-1.10 0.02 0.015 0.20 0.8-1.1 ~ ~
T850
4140
0.38-0.43 0.17-0.35 0.70-0.90 0.02 0.015 0.20 0.9-1.1 0.15-0.25 ~

Mechanical Properties:
Steel Grade Tensile Strength Mpa   Yield Point Mpa   Elongation % Heat treatment
Min
ZT380 640 380 14 Normlized
ZT490 690 490 12 Normlized
ZT540 740 590 12 Normlized
ZT590 770 590 12 Normlized
ZT640 790 640 12 QT
ZT740 840 740 10 QT
T850 950 850 15 QT



Applications:For Geological Drill underground for Oil and mineral, for mining
