Name: Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine
Brand: TORICH INTERNATIONAL LIMITED
SKU: DIN2391, EN10305-1, EN10305-4 etc.
Price: 900.00 USD
Availability: InStock

Home > products > Precision Steel Tube >

Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine

precision seamless pipe

precision pipes and tubes

Place of Origin:

China

Brand Name:

TORICH

Certification:

ISO 9001 ISO 14001 TS 16949 EN 10204.3.1 LR KR

Model Number:

DIN2391, EN10305-1, EN10305-4 etc.

Request A Quote

Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine

Product Details

Material:

Carbon Steel

Steel Grade:

St37.4, St35(E235), St45(E255), St52(E355),etc.

Standard:

DIN2391, EN10305-1, EN10305-4 Etc.

Shape:

Round

Outer Diameter:

4-60 Mm

Wall Thickness:

0.5-8mm

Application:

Auto Parts

Production Method:

Seamless Cold Drawing

Characteristic:

High Accuracy, Excellent Brightness,high Cleanness Inside Wall

Highlight:

precision seamless pipe

precision pipes and tubes

Payment & Shipping Terms

Minimum Order Quantity

5 tons

Price

USD 600-1200 ton

Packaging Details

oil antirust In hexagonal bundles

Delivery Time

35-60 days

Supply Ability

60000 tons per year

A500 Carbon Steel Square Tube High Strength Carbon Steel Structural Tubing For Building Structure

Get Best Price

video

AISI 4140 Seamless Tubing Medium Carbon Alloy Steel Seamless Pipe For Mechanical

Get Best Price

video

TP409 Ferritic Stainless Steel Seamless Tube For General Service

Get Best Price

video

ASME SA179 Seamless Carbon Steel Tubing Cold-Drawn Low-Carbon Steel Tube For Heat-Exchanger

Get Best Price

86-574-88086983

Contact Now

Product Description

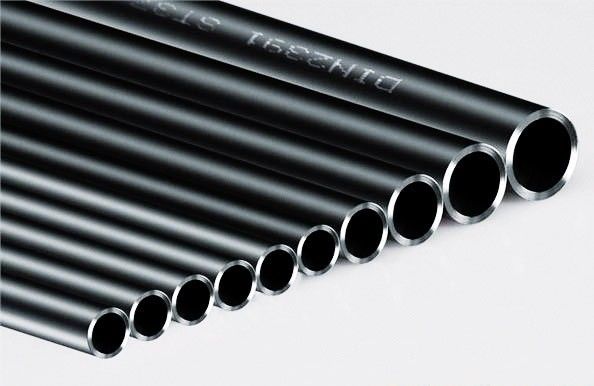

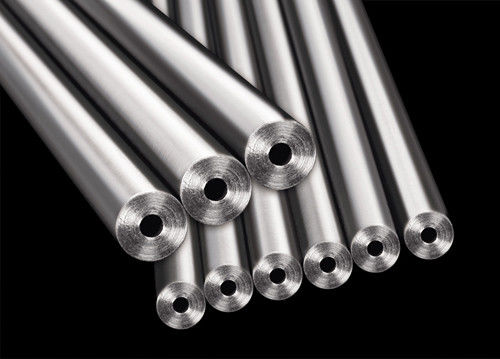

High Pressure Oil Tubes for Diesel Engine

EN10305-1, EN10305-4, DIN2391,

E235, E355, ST37.0, ST44.0, ST52.0

High Pressure Oil Tubes for Diesel Engine Galvanized Precision Tube , NBK Precision Steel Tube , Passivated Steel Tubes

High Pressure Oil Tubes for Diesel Engine

Production process:
Cold drawing bright heat treatment without oxidization 100%nondestructive testing inside flushing under the high pressure antirust oiling outer and inner surface.

Main Features:
high accuracy, excellent brightness, no oxidization on the outer and inner walls after heat treatment, high cleanness inside wall. The steel tube is able to stand high pressure. No deformation after cold bending, no crack after flaring and flattening . The complicated geometrical forming and machining can be realized.

Main Application:
to be used in hydraulic system, automobile parts and in the occasion where the high precision, brightness, cleanness and mechanical properties of the tube are required.
Standards: DIN2391, EN10305-1, EN10305-4 etc.
Steel Grade: St37.4, St35(E235), St45(E255), St52(E355),etc.
Outer Diameter: 4-60 mm
Wall Thickness: 0.5-8mm

Our products of Precision Carbon Steel Tube are widely used in:

Engineering machinery
Machine tool industry
Hydraulic industry
Special vehicle
Automobile pipeline
Heavy machinery
Compressor
Shipbuilding industry
Railway locomotive
Diesel engine
Utility boiler
Injection molding machine
Power equipment
Heavy duty automobile
Forging and stamping machine

Main Characteristics:

No Oxidation Layer on the Outer and Inner Walls

No Crack under Flaring and Flattening

No Leakage under High Pressure

No Distortion after Cold Bending

High Precision High Cleanness Excellent Brightness

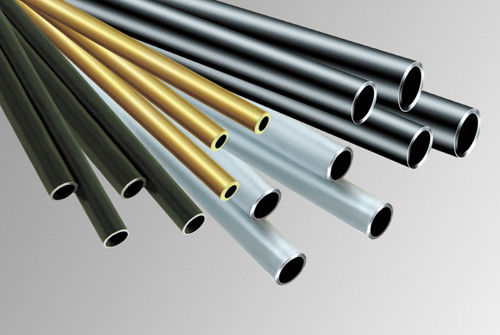

Precision Carbon Steel Tube in production before galvanizing:

Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine 2
