EN10305-1 Hydraulic Precision Seamless Steel Tube Cold Drawn E335 Pipe

EN10305-1 Hydraulic Precision Seamless Steel Tube Cold Drawn E335 Pipe

Brand Name: TORICH
Model Number: EN10305-1
MOQ: 500 kgs
Price: Negotiated
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50000 tons one year
Detail Information
Place of Origin:
China
Certification:
ISO 9001-2008 ISO14001
Material:
Carbon And Alloy Steel
Steel Grade:
E235 E355 E195
Shape:
Round
Standard:
EN 10305-1
Dimension:
OD6-380mm*WT-35mm*max12000mm
Manufacture:
Seamless Cold Drawn
Applications:
Hydraulic Systems
MTC:
EN10204 3.1
Packaging Details:
in wooden boxes
Supply Ability:
50000 tons one year
Highlight:

precision steel pipe

,

precision seamless pipe

Product Description

EN10305-1 Hydraulic Precision Seamless Steel Tube Cold Drawn E335 Pipe



TORICH is working on EN103051 precision seamless steel tube more than 20 years, with much experience in export.


1. Size range of precision seamless steel tube:

O.D.:6-380mm

W.T.:1-35mm

L:max12000mm

2.Ra roughness: max 0.8μm

3. Applications:  Hydraulic system
4.Steel Grade and Chemical Compositions:

              Steel Grade    C   Si Mn   P   S   Al
Steel Name Steel Number max max max max max min
     E215 1.0212  0.10  0.05 0.70  0.025 0.025 0.025
     E235 1.0308  0.17 0.35 1.20  0.025 0.025 -
     E355 1.0580  0.22 0.55 1.60  0.025 0.025 -

5.Mechanical properties:

                                                             Mechanical properties at room temperature
      Steel grade                                    Minimum values for the delivery condition
Steel Name Steel Nubmer      (+Cc)     (+LCc)          (+SR)    (+Ad)      (+N)  NBK
Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A %
     E215    1.0212  430 8 380 12 380 280 16 280 30 290-430 215 30
     E235    1.0308  480 6 420 10 420 350 16 315 25 340-480 235 25
     E355    1.0580  640 4 580 7 580 450 10 450 22 490-630 355 22

Note: Special steel grade is also available, according to customer request.

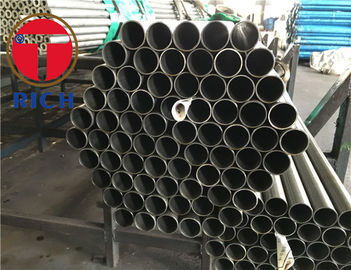

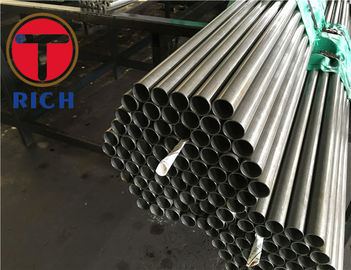

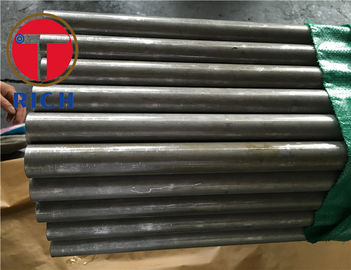

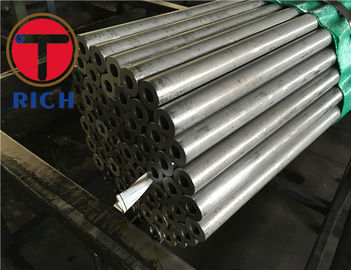

6.Product display after production:

 EN10305-1 Hydraulic Precision Seamless Steel Tube Cold Drawn E335 Pipe 0EN10305-1 Hydraulic Precision Seamless Steel Tube Cold Drawn E335 Pipe 1



EN10305-1 Hydraulic Precision Seamless Steel Tube Cold Drawn E335 Pipe 2  EN10305-1 Hydraulic Precision Seamless Steel Tube Cold Drawn E335 Pipe 3

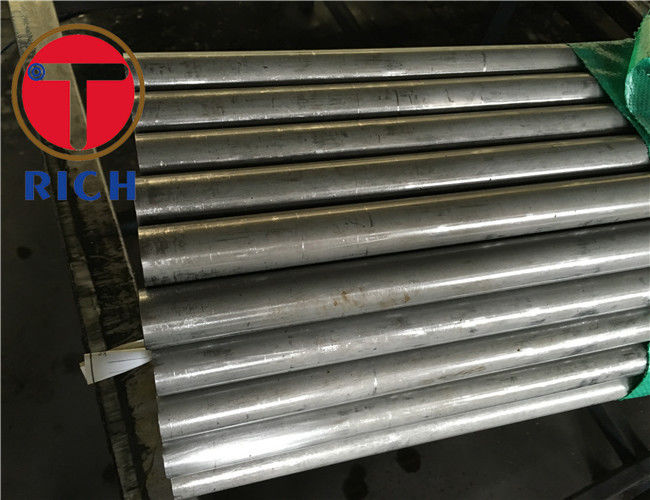

7. Container Loading and Ready for Shipment:

EN10305-1 Hydraulic Precision Seamless Steel Tube Cold Drawn E335 Pipe 4  EN10305-1 Hydraulic Precision Seamless Steel Tube Cold Drawn E335 Pipe 5

QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

8.Q&A

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your delivery term?

A: FOB, CIF, CFR,EXW,CPT,FCA

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us.
