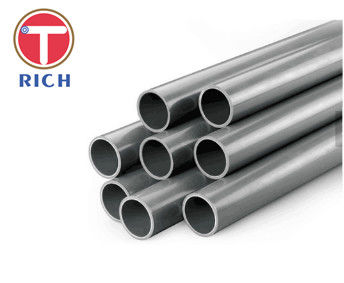

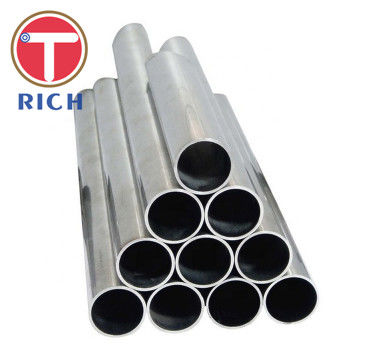

Bright Surface UNS N08800 ASTM B407 Incoloy 800 Tubing

ASTM B407 ASTM B163 Incoloy 800 909 825 840 tubing

B407 Standard Specification for Nickel-Chromium-Iron Alloy Seamless Pipe and Tube

Most common grades: (800H, 800HT)

The alloy has good corrosion resistance in high temperature steam, including steam air CO2 mixture. In some high temperature and high pressure water medium, its stress corrosion resistance is obviously better than 18-8 stainless steel and inconel600; in H2 + H2S medium, it also has good corrosion resistance, and in alkaline medium containing NaOH, it has good corrosion resistance The stress corrosion resistance is better than that of inconel600 and other high nickel alloys.

Chemical composition:

Incoloy 800

Ni=30.0～35.0 C≤0.10 S≤0.015 Cu<0.75
Cr=19.0～23.0 Si≤1.0 Al=0.15～0.60 Fe≥39.5
Mn≤1.5 Ti=0.15～0.60

Incoloy825

Ni(+Co)=38.0～46.0 Mo=2.5～3.5 Mn≤1.0 Al≤2.0
Fe≥22.0 Cu=1.5～3.0 S≤0.03 Ti=0.6～1.2
Cr=19.5～23.5 C≤0.05 Si≤0.5

Application:

Chemical industry

Nuclear generator

Nitric acid cooler, acetic anhydride cracking pipe

Heat exchange equipment

Delivery Condition:

Hot or cold rolled, heat treated, oxidized or pickled

ASTM B407

Reference Standard:

B829 Specification for general requirements for Nickel and Nickel Alloy seamless pipe and tube.

E140 Hardness conversation tables for material relationship among brinell hardness, vickers hardness,

rockwell hardness, superficial hardness, knoop hardness, scleroscope hardness, and leeb hardness.

Keywords: seamless pipe; seamless tube; UNS N08120; UNS N08800; UNS N08801; UNS N08810; UNS N08811;

UNS N08890; UNS N06811
