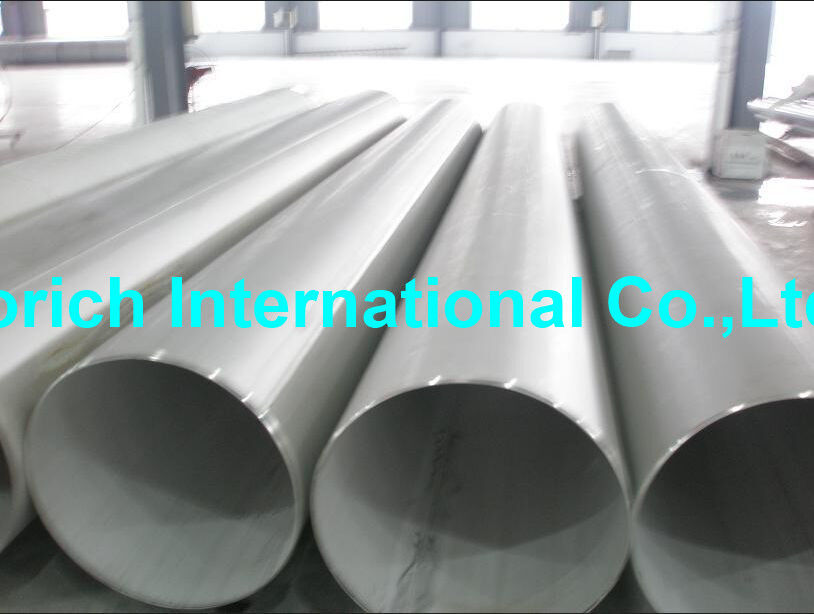

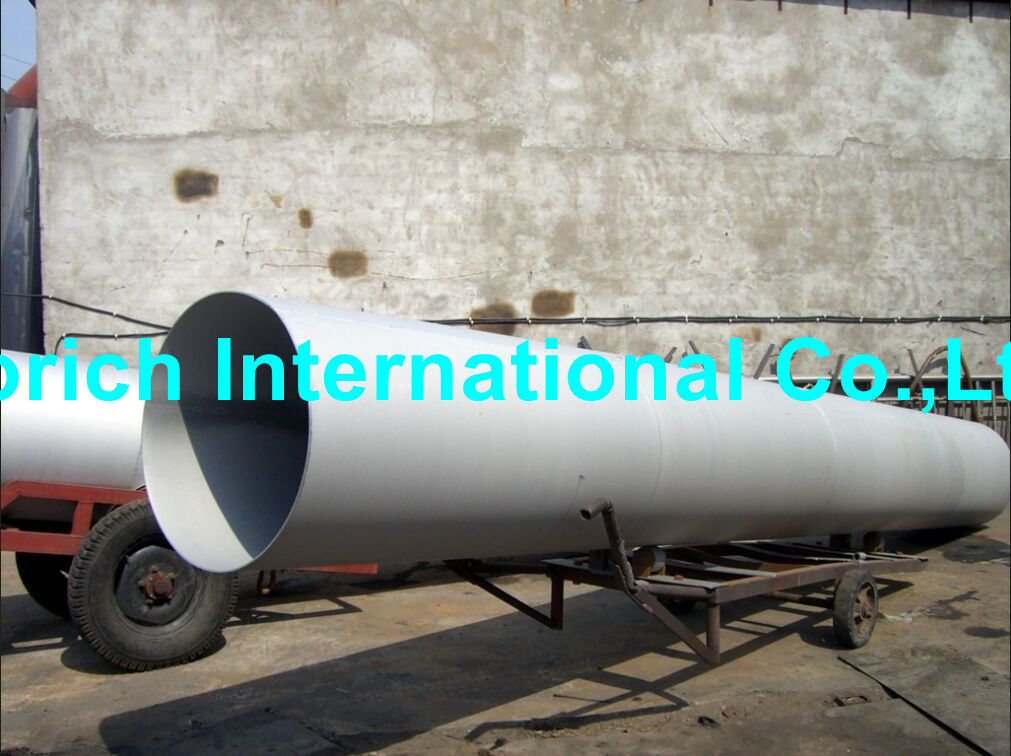

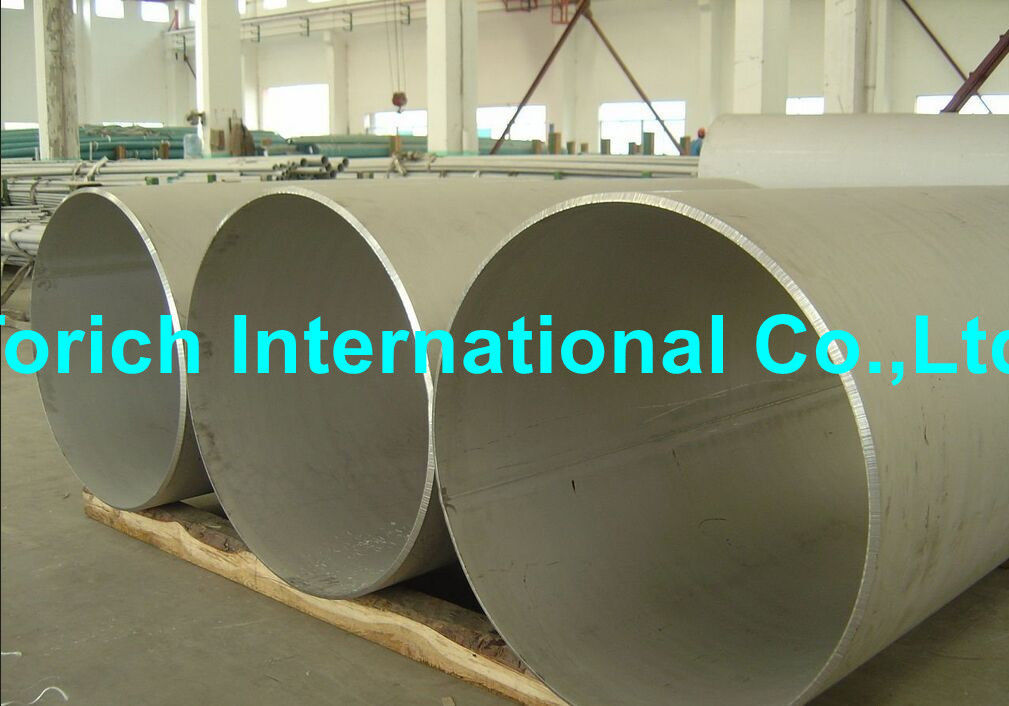

Name: ASTM A688 Inconel Tube Welded Austenitic Feedwarter Heater Stainless Steel Seamless Tubes
Brand: TORICH INTERNATIONAL LIMITED
SKU: Standard: ASTM A688
Price: 40,001.00 USD
Availability: InStock

Home > products > Nickel Alloy Tube >

ASTM A688 Inconel Tube Welded Austenitic Feedwarter Heater Stainless Steel Seamless Tubes

inconel 718 tube

inconel 601 tube

Place of Origin:

China

Brand Name:

Torich

Certification:

ISO9001:2008, ISO14001:2008, TS16949

Model Number:

Standard: ASTM A688

Request A Quote

ASTM A688 Inconel Tube Welded Austenitic Feedwarter Heater Stainless Steel Seamless Tubes

Product Details

Material:

Inconel Tube Austenitic Stainless Steel

Grade:

TP304, TP316

Type:

Seamless And Welded

Production:

Cold Finish And Welding

Highlight:

inconel 718 tube

inconel 601 tube

Payment & Shipping Terms

Minimum Order Quantity

1 tons

Packaging Details

In bundles with seaworthy packing

Inconel 601 Inconel Seamless Pipes Nickel Alloy For General Requirements

Get Best Price

video

Torich UNS N06600 N06601 Cold Finished Nickel Alloy ASTM B168 Steel Tube

Get Best Price

video

Torich ASTM B168 Cold Hot Finished Nickel Alloy Tubes and Tubing

Get Best Price

video

Torich ASTM B163 NO2200 Nickel Alloy Seamless Heat Exchanger Steel Tube

Get Best Price

86-574-88086983

Contact Now

Product Description

ASTM A688 Welded Austenitic Stainless Steel Feedwarter Heater Tubes

Size range: O.D.: 4.0-230mm W.T.:1-30mm L: according to customer requirement

Mechanical Requirement
Grade:	TP304	TP304L	TP304LN	TP316	TP316L	TP316LN	TP316LN	TPXM-29	TP304N
UNS	S30400	S30403	S30453	S31600	S31603	S31653	S31653	S24000	S30451
C, max	0.08	0.035	0.035	0.080	0.035	0.035	0.035	0.08	0.080
Mn, max	2.00	2.00	2.00	2.00	2.00	2.00	2.00	11.5-14.5	2.00
P, max	0.045	0.045	0.045	0.045	0.045	0.045	0.045	0.060	0.045
S, max	0.030	0.030	0.030	0.030	0.030	0.030	0.030	0.030	0.030
Si, max	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00
Ni	18.0-20.0	18.0-20.0	18.0-20.0	16.0-18.0	16.0-18.0	16.0-18.0	16.0-18.0	17.0-19.0	18.0-20.0
Cr	8.0-11.0	8.0-13.0	8.0-12.0	11.0-14.0	10.0-14.0	11.0-14.0	11.0-14.0	2.3-3.7	8.0-18.0
Mo	…	…	…	2.00-3.00	2.00-3.00	2.00-3.00	2.00-3.00	…	…
Nitrogen	…	…	…	…	…	…	…	…	…
Copper	…	…	…	…	…

Grade:	TP316N	…	…	…	…
UNS	S31651	N08367	N08926	S31254	S32654
C, max	0.070	0.030	0.020	0.020	0.020
Mn, max	2.00	2.00	2.00	1.00	2.0-4.0
P, max	0.045	0.040	0.030	0.030	0.030
S, max	0.030	0.030	0.010	0.100	0.005
Si, max	4.8-6.0	1.00	0.50	0.80	0.50
Ni	9.58.0	20.0-22.0	24.0-26.0	19.5-20.5	21.0-23.0
Cr	19.0-22.0	23.5-25.5	19.0-21.0	17.5-18.5	24.0-25.0
Mo	0.30-1.50	6.0-7.0	6.0-7.0	6.0-6.5	7.0-8.0
Nitrogen	…	…	…	…	0.45-0.55
Copper	…	…	…		0.30-0.60

Tensil Requirements
Grade and UNS	Tensile strength min ksi [Mpa]	Yield strength min ksi [Mpa]	Elongation in 2in or 50mm min %
304, 316 S30400, S31600	75 [515]	30 [205]	35
304L, 316L S30403, S31603	70 [485]	25 [175]	35
XM-29 S24000	100 [690]	55 [380]	35
304N, 316N S30451, S31651	80 [550]	35 [240]	20
304LN, 316LN S30453, S31653	75 [515]	30 [205]	35
N08367 t≤0.187	100 [690]	45 [310]	30
N08367 t＞0.187	95 [655]	45 [310]	30
N08926	94 [650]	45 [310]	35
S31254 t≤0.187	100 [690]	45 [310]	35
S21254 t＞0.187	95 [655]	45 [310]	35
S32654	120 [825]	65 [450]	40

Permissible Variations in Dimensions
Group	Size, Outside Diameter, in(mm)	Permissible Variations in Outside Diameter, in.[mm]	Permissible Variations in WT, %	Permisible Variations in Cut Length, in[mm] Over Under
1	Up to 1/2(12.7), excl	±0.005[0.13]	±15	1/8[3]	0
2	1/2 to 1 1/2(12.7 to 38.1 excl	±0.005[0.13]	±10	1/8[3]	0
3	1 1/2 to 3 1/2(38.1 to 88.9 excl	±0.010[0.25]	±10	3/16[5]	0
4	3 1/2 to 5 1/2(88.9 to 139.7 excl	±0.015[0.38]	±10	3/16[5]	0
5	5 1/2 to 5 1/2(139.7 to 230.2 excl	±0.030[0.76]	±10	3/16[5]	0
