ASTM A270 Stainless Steel Sanitary Pipe , Hot Finished Seamless Tube Food Grade

Basic Information
Place of Origin: CHINA
Brand Name: TORICH
Certification: ISO9001, TS16949
Model Number: ASTM A270
Minimum Order Quantity: 1tons
Price: negotiable
Packaging Details: in bundles with seaworthy packing, in wooden box
Delivery Time: 45-60 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 60000ton/year
Detail Information
Product Name: ASTM A270 Food Grade 316 Seamless Stainless Steel Sanitary Pipe Standard: ASTM A270
Technique: Cold Drawn Section Shape: Round
Certification: ISO9001, TS16949 Alloy Or Not: Stainless
Secondary Or Not: Non-secondary Special Tube: Food Grade Stainless Steel Pipe
Surface: Satin / Hairline Hea Treatment: Yes
High Light:

stainless steel round tube

,

stainless tube steel


Product Description

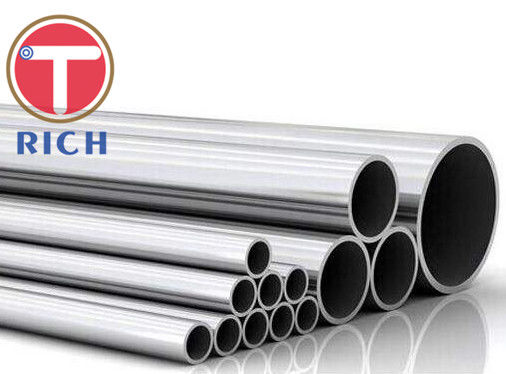

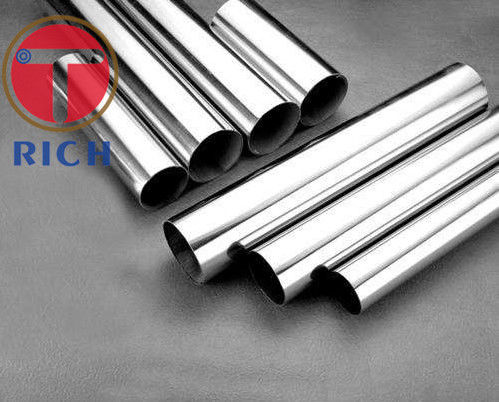

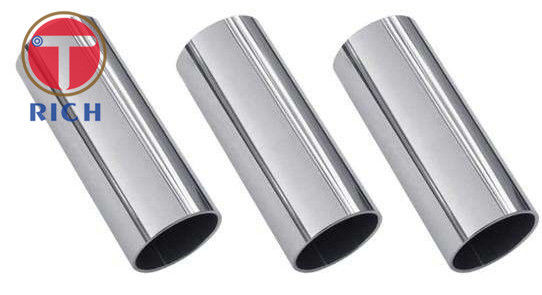

ASTM A270 Food Grade 316 Seamless Stainless Steel Sanitary Pipe

ASTM A270 Food Grade 316 Seamless Stainless Steel Sanitary Pipe



Application: Mainly used in beer, beverages, diary, bio-pharmaceuticals, daily, cosmetics, concentrated drying equipment industries.



Size Range:
OD:12-254mm

WT: 1-12mm

Length: 6000mm or per customer’s request



Material:

Grade: stainless steel 304, 316

Chemical Properties
  C Si Mn P S Cr N Mo
304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 18.0~20.0 8.0-10.5 -
316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 16.0~18.0 10.0-14.0 2.0-3.0



Manufacture:

Pipes shall be made by the seamless process.



Mechanical Properties:

  Mechanical Properties:
  Tensile Strength (Mpa) Yield Strength (Mpa) Hv Extension %
304 ≥ 520 ≥ 205 <200 ≥35
316 ≥ 520 ≥ 205 <200 ≥35



Surface:

180G, 320G, 400G Satin / Hairline



Packing:

With strong wood structure box packing by containers loading and shipping.

Or as customer's requirement.


Test:

  • PMI test
  • Hydraulic test
  • 100%Inner cleaned by sponge
  • 100%Dimension test
  • 100%Surface test

ASTM A270 Food Grade 316 Seamless Stainless Steel Sanitary Pipe



Food Grade 316 Stainless Steel Tube
