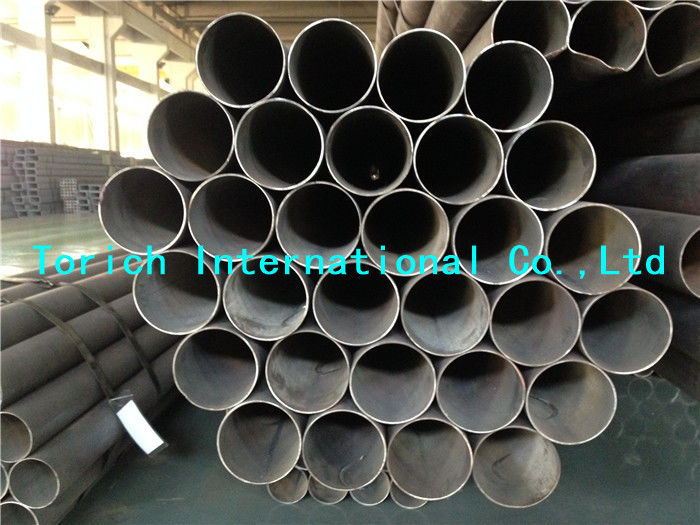

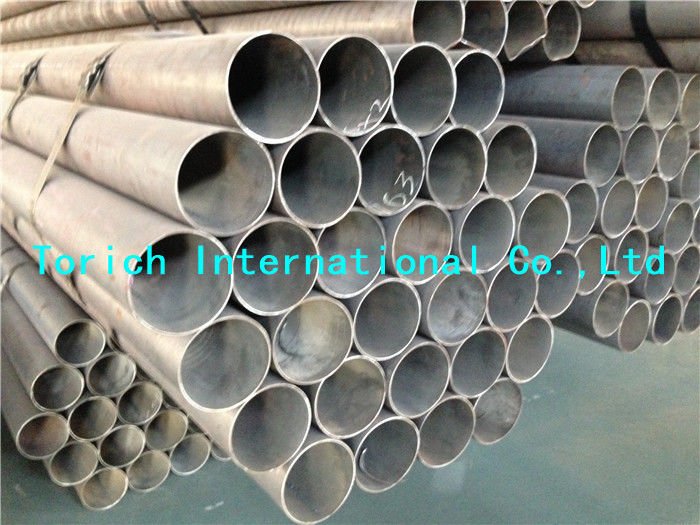

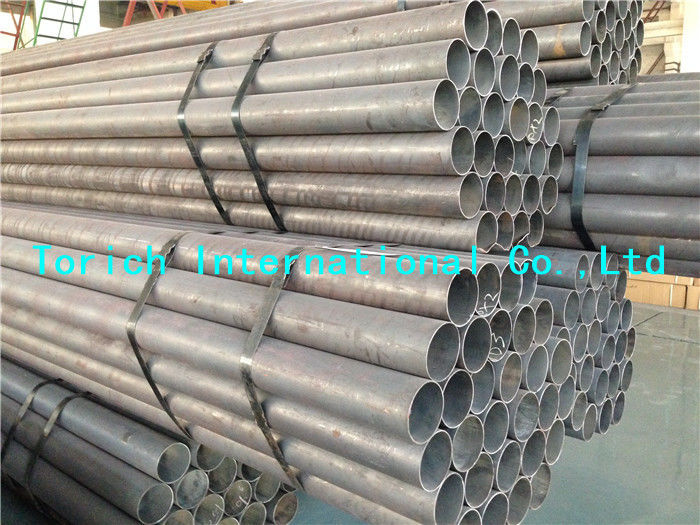

A369/A369M FPA , FPB , FP1 , FP2 Carbon and Ferritic Seamless Alloy Steel Pipe

Basic Information
Place of Origin: China
Brand Name: Torich
Certification: ISO 9001:2008 , TS16949 , DNV , GL , PED
Model Number: A369/A369M
Minimum Order Quantity: 5MT
Price: negotiable
Packaging Details: In bundles with seaworthy packing
Delivery Time: 25~40days
Payment Terms: L/C, T/T
Supply Ability: 6000MT/Month
Detail Information
Product Name:: Alloy Steel Tube Section Shape:: Round
Material: Carbon And Ferritic Alloy Steel Grade: FPA FPB FP1 FP2
High Light:

alloy steel seamless tube

,

seamless alloy steel pipe


Product Description

A369/A369M  FPA , FPB , FP1 , FP2 Carbon and Ferritic Alloy Steel Forged and Bored Pipe





Carbon and Ferritic Alloy Steel Forged and Bored Pipe for

High-Temperature Service



Testing:

Additional Tension Test

Additional Flattening or Bend Tests

Ultrasonic Tests

Hydrostatic Test

Metal Structure and Etching Tests



TABLE 1 Chemical Requirements



Grade

Composition

FPA

FPB

FP1

FP2

Carbon

0.25max

0.25max

0.10-0.20

0.10-0.20

Manganese

0.27-0.93

0.29-1.06

0.30-0.80

0.30-0.61

Phosphorus,max

0.035

0.035

0.025

0.025

Sulfur,max

0.035

0.035

0.025

0.025

Silicon

0.10min

0.10min

0.10-0.50

0.10-0.30

Chromium

0.50-0.81

Molybdenum

0.44-0.65

0.44-0.65

Grade

FP5

FP9

FP11

FP12

Carbon

0.15max

0.15max

0.05-0.15

0.05-0.15

Manganese

0.30-0.60

0.30-0.60

0.30-0.60

0.30-0.61

Phosphorus,max

0.025

0.030

0.025

0.025

Sulfur,max

0.025

0.030

0.025

0.025

Silicon

0.50max

0.50-1.00

0.50-1.00

0.50max

Chromium

4.00-6.00

8.00-10.00

1.00-1.50

0.80-1.25

Molybdenum

0.45-0.65

0.90-1.10

0.44-0.65

0.44-0.65

Grade

FP21

FP22

FP91

FP92

Carbon

0.05-0.15

0.05-0.15

0.08-0.12

0.07-0.13

Manganese

0.30-0.60

0.30-0.60

0.30-0.60

0.30-0.60

Phosphorus,max

0.025

0.025

0.025

0.020

Sulfur,max

0.025

0.025

0.025

0.010

Silicon

0.50max

0.50max

0.20-0.50

0.50max

Chromium

2.65-3.35

1.90-2.60

8.00-9.50

8.50-9.5

Molybdenum

0.80-1.06

0.87-1.13

0.85-1.05

0.30-0.60







Others:

W 1.50-2.00







Ni 0.40 max

V 0.15-0.25







V 0.18-0.25

Cb 0.15-0.25







Cb 0.06-0.10

N 0.030-0.070







N 0.03-0.07

Ni 0.04 max







AI 0.04 max

AI 0.040max









B 0.001-0.006



TABLE 2 Tensile Requirements



Grade

FPA

FPB

FP1,FP2

FP12

FP91

FP92

All Others

Tensile strength,min,

Ksi,[MPa]

48[330]

60[415]

55[380]

60[415]

85[585]

90[620]

60[415]

Yield strength,min,

Ksi,[MPa]

30[210]

35[240]

30[210]

32[220]

60[415]

64[440]

30[210]

                            Elongation Requirements

Grade

FPA

FPB

FP91 and FP92

All Others

Elongation in 2 in. or 50mm,min %:

Longitu-dinal

Trans-verse

Longitu-dinal

Trans-

verse

Longitu-

dinal

Trans-

verse

Longitu-

dinal

Trans-

verse

35

25

30

17

27

18

30

20

Basic minimum elongation for wall 5⁄16 in.

28

20

22

12

20

13

22

14

[8mm]and over in thickness, strip tests, and for all small sizes tested in full-section When standard round 2-in. or 50-mm gage length test specimen is used
