GB/T 3077 38CrMoAL Cold Drawn Carton Seamless Alloy Steel Pipe For Automobile Industry
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5 Ton | Price : | negotiable |
---|---|---|---|
Packaging Details : | Packing in wooden, hexagonal box or other seaworthy ways | Delivery Time : | 30 days |
Payment Terms : | T/T L/C D/P D/A WesternUnion MoneyGram Others | Supply Ability : | 60000 Ton/Year |
Place of Origin: | china | Brand Name: | Torich |
---|---|---|---|
Certification: | ISO9001 | Model Number: | A 556 / A 556M |
Detail Information |
|||
Color: | Black | OD: | 50mm-120mm |
---|---|---|---|
ID: | 5mm-12mm | Material: | Carbon Steel Tube |
Technique: | Cold Drawing | Shape: | Round |
High Light: | seamless steel pipe,seamless carbon steel tube |
Product Description

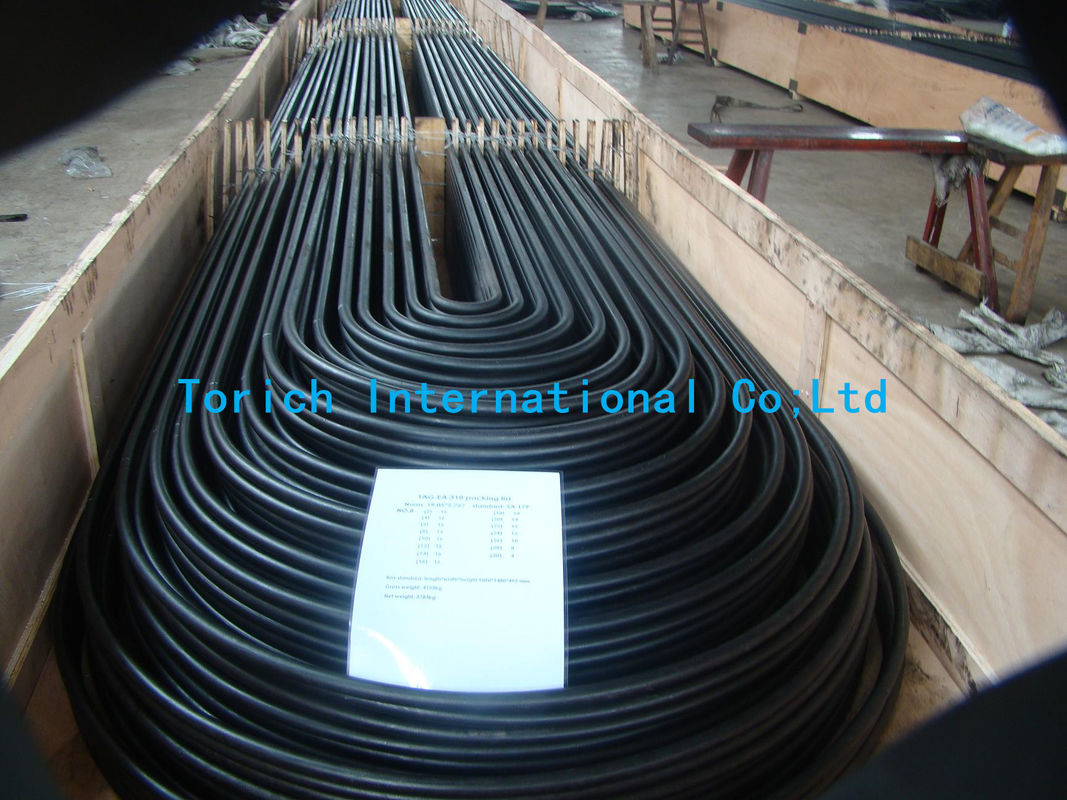

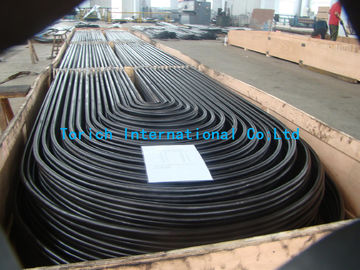

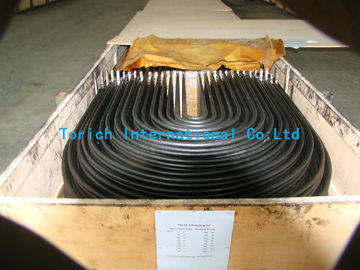

A 556/A 556M Cold-Drawn Carbon Feedwater Heater Seamless steel Tubes
1. Referenced Documents
1.1 ASTM Standards:
A 450/A 450M Specification for General Requirements for Carbon, Ferritic Alloy, and Austenitic Alloy Steel Tubes E 30 Test Methods for Chemical Analysis of Steel, Cast Iron, Open-Hearth Iron, and Wrought Iron
2. Manufacture
2.1 Manufacture—Tubes shall be made by the seamless process and shall be cold drawn.
2.2 Heat Treatment:
2.2.1 Cold-drawn tubes shall be heat treated after the final cold-draw pass at a temperature of 1200°[640°C] or higher to ensure ductility satisfactory for rolling into tube sheets and to meet mechanical properties as specified.
2.2.2 If stress-relief anneal of the U-bends is specified, the anneal shall consist of heating the bent portion within a range of 1100 to 1200°F [585 to 640°C].
3. Chemical Composition
3.1 The steel shall conform to one of the requirements as to chemical composition as prescribed in Table 1. 3.2 When a grade is ordered under this specification, supplying an alloy grade that specifically requires the addition of any element other than those listed for the ordered grade in
Element | Composition, % | ||
---|---|---|---|
Grade A2 | Grade B2 | Grade c2 | |
Carbon, max | 0.18 | 0.27 | 0.3 |
Manganese | 0.27-0.63 | 0.29-0.93 | 0.29-1.06 |
Phosphorus | 0.035 | 0.035 | 0.035 |
Sulfur, max | 0.035 | 0.035 | 0.035 |
Silicon, min | ... | 0.10 | 0.10 |
4. Permissible Variations in Dimensions (Fig. 1)
4.1 Permissible variations from the specified outside diametershall not exceed 0.004 in. [0.10 mm] for tubing under1.0-in. [25.4-mm] outside diameter nor 0.006 in. [0.15 mm]for tubing 1.0 in. [25.4 mm] to 1.25 in. [31.7 mm] inclusive.These tolerances do not apply to the bent portion of theU-tubes. At the bent portion of a U-tube for R = 2 D orgreater neither the major nor minor diameter of tube shalldeviate from nominal by more than 10 %. If 1 ⁄ D is specified,tolerances could be greater.
4.2 Permissible variations from the specified minimum wallthickness shall not exceed +20 % or −0. The wall thickness of
Grade A2 | Grade B2 | Grade C2 | |
---|---|---|---|
Tensile strength, min, ksi [MPa] | 47[320] | 60[410] | 70[480] |
Yield strength, min, ksi [MPa] | 26[180] | 37[260] | 40[280] |
Elongation in 2 in. or 50 mm, min, % (longitudinal) |
35 | 30 | 30 |
Grade A2 | HR B 72 |
---|---|
Grade B2 | HR B 79 |
Grade C2 | HR B 89 |
the tube in U-bent section shall be not less than valuedetermined by:
tf T 2R / 2R D (1)
where:
t = wall thickness after bending, in. [mm],
T = specified minimum tube wall thickness, in. [mm],
R = centerline bend radius, in. [mm], and
D = nominal outside tube diameter, in. [mm].
