Large Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic Cylinder

Large Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic Cylinder

MOQ: 5 ton
Price: USD1900-1950per ton
Standard Packaging: Oil protection in bundles or in carton boxes or seaworthy packing
Delivery Period: 30-45 days
Payment Method: L/C, T/T, D/A, D/P, Western Union,
Supply Capacity: 6000MT/Month
Detail Information
Place of Origin
China
Brand Name
Torich
Certification
GB/T 19001-2008 , ISO 9001:2008 , TS16949
Model Number
GB/T3639、GB/T8713、EN10305-1:2002、EN10305-2:2002、 ASTM A519-2006、ASTM A513-2007、GB/T1591-2008、GB/T17396-2009
Type::
Hydraulic Cylinder Tube
Material::
20#、45#、Q345B,25Mn、27SiMn、E355
I.D.::
40-400mm
W.T.::
≥5mm
Technique::
Cold Drawn
Length:
Up To 12000mm According To Customer's Requirement
Place Of Origin:
China
Surface Treatment:
Oiled
Highlight:

honed hydraulic cylinder tubing

,

hydraulic cylinder pipe

Product Description

Seamless Cold Drawn Steel Tube For Hydraulic Cylinder And Pneumatic Cylinder







Standard :  GB/T3639, GB/T8713, EN10305-1:2002, EN10305-2:2002,
                      ASTM A519-2006, ASTM A513-2007, GB/T1591-2008, GB/T17396-2009

Material:       20#, 45#, Q345B, Q345D, 25Mn, 27SiMn, E355





 Hydraulic and pneumatic cylnder tube standard/size/tolerance


 Working method


Tube ID

(mm)

 Length

(m)


Straightness
(mm/m)

 Tolerance

on ID

 Tolerance

on WT


 ID Roughness

(um)

Cold Draw 40-400 ≤12m 0.2-0.5  / ±5% ≤1.6
Cold Rolled 40-150 ≤12m 0.2-0.5  / ±5% ≤0.8
Cold Draw-Honed 40-400 ≤8m 0.2-0.3 H8-H9 ±5% ≤0.4
Cold Draw-Rolling 50-300 ≤8m 0.2-0.3 H8-H9 ±5% ≤0.4
Deep hole boring-Roing  250-400 ≤8m 0.2-0.3 H8-H9 ±8% ≤0.8
Deep hole boring-Honed Roing 250-400 ≤8m 0.2-0.3 H8-H9 ±8% ≤0.4



 Mechancial property


                   Final supply                      condition







Steel grade

Cold finished(hard)(BK) (Cold drawn and stress-relieved(BK+S)

T.S

bN/mm2

 Elogation  5% T.S bN/mm2 Y.S Bn/mm2  Elogation 5% Hardness HB  Impact value(-20℃)J
20 ≥550 ≥8 ≥520 ≥400 ≥15 170 /
45 ≥680 ≥5 ≥630 ≥520 ≥12 190 /
Q345B ≥660 ≥8 ≥620 ≥520 ≥15 190 /
Q345D ≥660 ≥8 ≥620 ≥520 ≥15 190 ≥27
25Mn ≥640 ≥8 ≥620 ≥510 ≥15 190 /
27SiMn ≥780 ≥5 ≥700 ≥580 ≥10 210 /
E355 ≥700 ≥8 ≥650 ≥580 ≥15 195 ≥27



 Chemecal composition


Steel grade
C Si Mn P S Cr Ni Cu V
20 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 ≤0.25 ≤0.30 ≤0.25 /
45 0.42-0.50 0.17-0.37 0.50-0.80 ≤0.035 ≤0.035 ≤0.25 ≤0.30 ≤0.25 /
Q345B ≤0.20 ≤0.50 ≤0.17 ≤0.035 ≤0.035 ≤0.30 ≤0.50 ≤0.30 ≤0.15
Q345D ≤0.18 ≤0.50 ≤0.17 ≤0.030 ≤0.025 ≤0.30 ≤0.50 ≤0.30 ≤0.15
25Mn 0.24-0.32 1.10-1.40 1.10-1.40 ≤0.035 ≤0.035 ≤0.30 ≤0.30 ≤0.20 /
27SiMn 0.22-0.29 0.17-0.37 0.70-1.0 ≤0.035 ≤0.035 ≤0.25 ≤0.30 ≤0.25 /
E355 ≤0.22 ≤0.50 ≤1.60 ≤0.035 ≤0.025 / / / /



(Tolerance on ID) um

ID Size (Tolerance on ID)um
H7 H8 H9 H10
30 +21
0
+33
0
+52
0
+84
0
>30-50 +25
0
+39
0
+62
0
+100
0
>50-80 +30
0
+46
0
+74
0
+120
0
>80-120 +35
0
+54
0
+87
0
+140
0
>120-180 +40
0
+63
0
+100
0
+160
0
>180-250 +46
0
+72
0
+115
0
+185
0
>250-315 +52
0
+81
0
+140
0
+210
0
>315-400 +57
0
+89
0
+170
0
+230
0

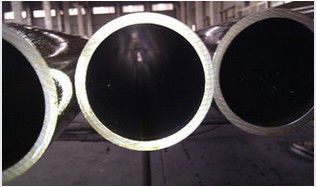

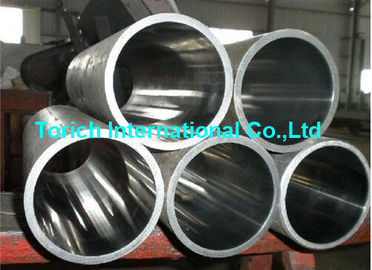

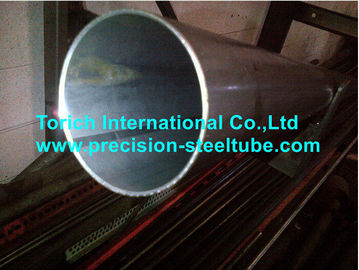

  Large Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic Cylinder
