18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft

Name: 18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft
Brand: TORICH INTERNATIONAL LIMITED
SKU: 18CrNiMo7-6
Price: 2,550.00 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	18CrNiMo7-6
MOQ:	1Ton
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	60000 Ton/Tons per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang/China

Certification:

ISO9001 ISO14001 TS16949

Features:

No Deformation In Cold Bending

Processing:

COLD DRAWN

Technical:

Cold Drawn Or Cold Rolled

Technology:

Hot Rolled Cold Rolled

Alloy Or Not:

Is Alloy,

Section Shape:

Round,Rectangular

Special Pipe:

Thick Wall Pipe

Pipe Type:

API Pipe

Sample:

Free Sample Is Available

Material:

Alloy Steel

Application:

Engine Drive Shaft

Standard:

ASTM,DIN,GB,JIS,API

Thickness:

0.1mm-60mm

Certification:

API,CE,ISO,ISO9001-2008,ISO9001

Technique:

Cold Drawn,Hot Rolled,Cold Rolled,ERW,Hot Rolled/Cold Drawn

Surface Treatment:

Galvanized,customerized

Grade:

18CrNiMo7-6

Alloy Or Not:

Non-alloy,Is Alloy,NON -alloy

Standard2:

EN 10084

Outer Diameter(round):

30 - 625 Mm

Special Pipe:

Thick Wall Pipe,API Pipe,Precision Steel Tube,precision Seamless Pipe,cold Drawn

Secondary Or Not:

Non-secondary

Grade Group:

16Mn

Length:

6M Or As Requirement,As Customer's Require

Product Name:

Steel Tubes,Cold Drawn Precision Round Carbon Steel Tube,

Type:

Seamless,

Packaging Details:

In bundles or in wooden boxes.

Supply Ability:

60000 Ton/Tons per Year

Highlight:

Alloy Structural Steel Pipe

18CrNiMo7-6 Case Hardened Tubing

Engine Drive Shaft Case Hardened Tubing

Product Description

18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft 0

18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft

Material Specification

18CrNiMo7-6 is a high-quality alloy structural steel known for its excellent case hardening properties. It is widely used in the manufacturing of engine drive shafts due to its superior strength, toughness, and wear resistance. This steel grade is particularly suitable for components that require high surface hardness and a tough core.

Key Features

High Strength and Toughness: Offers excellent mechanical properties, making it ideal for demanding applications.
Wear Resistance: Provides superior wear resistance due to its case hardening capabilities.
Good Machinability: Despite its hardness, it can be machined effectively.
Versatility: Suitable for various applications beyond engine drive shafts, including gears and other mechanical components.

Chemical Composition

The chemical composition of 18CrNiMo7-6 is crucial for its performance characteristics. Below is a table detailing its typical composition:

Element	Composition (%)
Carbon (C)	0.15 - 0.21
Silicon (Si)	0.15 - 0.40
Manganese (Mn)	0.50 - 0.90
Phosphorus (P)	≤ 0.025
Sulfur (S)	≤ 0.035
Chromium (Cr)	1.50 - 1.80
Nickel (Ni)	1.40 - 1.70
Molybdenum (Mo)	0.25 - 0.35

Mechanical Properties

The mechanical properties of 18CrNiMo7-6 are essential for its application in structural components. Here is a table summarizing its typical mechanical properties:

Property	Value
Tensile Strength	800 - 1100 MPa
Yield Strength	≥ 600 MPa
Elongation	≥ 10%
Hardness (after case hardening)	58 - 62 HRC

Similar Standards and Steel Grades

18CrNiMo7-6 is comparable to several international standards and steel grades. Here are some equivalents:

ASTM: AISI 9310
EN: 18CrNiMo7-6
GOST: 18ХНМФА
JIS: SNCM420
GB: 20CrNiMo

Application

18CrNiMo7-6 is primarily used in the automotive and aerospace industries for components that require high strength and wear resistance. Its applications include:

Engine Drive Shafts: Due to its high strength and toughness, it is ideal for drive shafts that undergo significant stress.
Gears: Used in the manufacturing of gears that require a hard surface and a tough core.
Bearings: Suitable for bearings that need to withstand high loads and rotational speeds.
Mechanical Components: Utilized in various mechanical components where durability and reliability are critical.

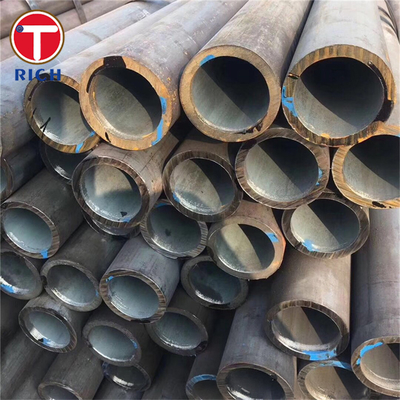

18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft 1

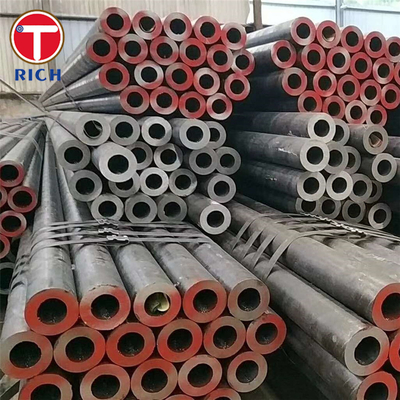

18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft 2

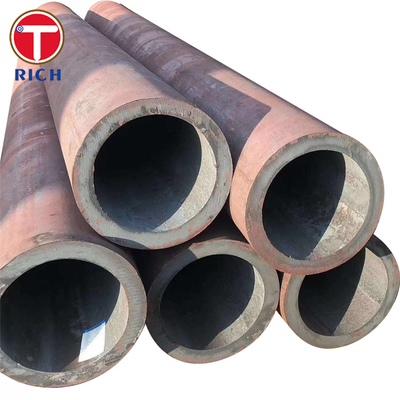

18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft 4

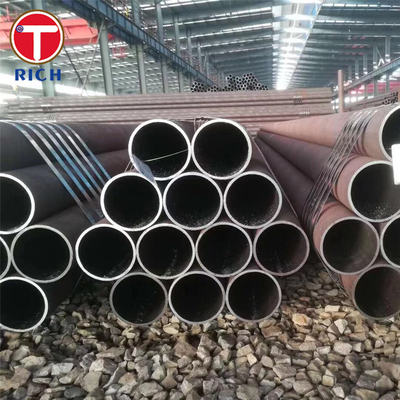

18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft 6

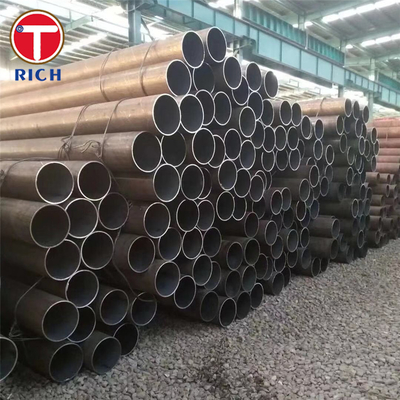

18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft 7

TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and

trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and

credibility among domestic and foreign customers.

The company's production plant covers an area of over 10,000 square meters, with an annual production

capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.

The group holds shares in more than ten domestic production entities, whose main products include

seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.

Over the past 30 years, the company has been gradually developing new technologies and materials to meet

the growing needs of customers and various diversified needs, exporting to more than 56 countries and still

increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.

18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft 8

18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft 11

18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft 12

18CrNiMo7-6 Case Hardened Tubing Alloy Structural Steel Pipe For Engine Drive Shaft 13

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
