Steel Tube Machining Seamless Cold Drawn For Bending Low Carbon Sae J524

Product Description

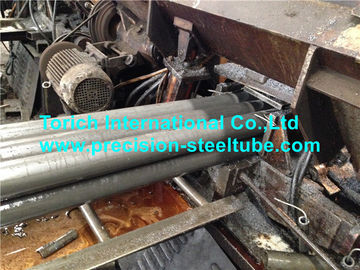

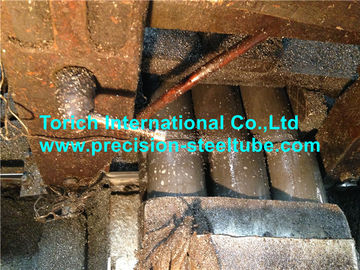

SAE J524 Low Carbon Seamless Steel Tube Machining for Bending

Quick Detail:

Standard:  SAE J524 Seamless Steel Tubing
J524 Seamless Low Carbon Steel Tubing Annealed for Bending and Flaring

Applications:  for Bending and Flaring to auto parts


Size range: O.D.:6-88.9mm     W.T.:1-15mm      L: According to customer Order

Manufacture:
The tubing is cold drawn size and after forming shall be annealed in such a manner as  to produce finished product which meet the SAE J524 requirement and customer's requirement.

DIMENSIONS AND TOLERANCES

Material:

Tubing made from low-carbon steel confirmting to the following chemical compostion.

MECHANICAL PROPERTIES:

The finished tubing have mechanical properties of following table:

Quality:

Lengths of finished tubing is reasonably stragiht and have smooth ends free from burrs.

Tubing is free from scale and injurious defects and have a workmanlike finish.

Surface imperfections such as handling marks, die marks, or shallow pits shall not be considered injurious

defects provided the imperfections are within the tolerance specified for diameter and wall thickness.

The removal of such surface imperfections is not required.

PERFORMANCE REQUIREMENTS:

The finished tubing satisfactorily meet the following performance tests in SAE J1677

• Flattening test
• Flaring test
• Reverse Flattening test
• Expansion Test
• Hardness Test
• Tensile Test
• Elongation Test
• Pressure Proof Test


SAE PUBLICATIONS FOR RELATED STNADARDS:

SAE J409    Product Analysis - Permissible Variations from Specified Chemical Analysis of a Heat or Cast
                   Cast of Steel
SAE J1677  Test and Procedures for Steel and Copper Nickel Tubing

SAE J514    Hydraulic Tube Fittings

SAE J533    Flares for Tubing

SAE J1065  Norminal Reference Working Pressure for Steel Hydraulic Tubing

SAE J1453  Fitting - O Ring Face Seal

SAE J2551  Recommended Practices for Fluid Conductor Metallic Tubing Applications

SAE J2592  Carbon Steel Tubing for General Use - Understanding Nondestructive Testing for Carbon
                   Steel Tubing

SAE J2658  Metallic Tube Conductor Assemblies for Fluid Power and General Use - Test Methods
                   for Hydraulic Fluid Power Metallic Tube Assemblies



ASTM  Publications:
ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Tubing

ASTM A519 Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing

ASTM A450/ A-450M  Standard Specifications for General Requirements for Carbon, Ferritic Alloy and
                                   Austenitic Alloy Steel Tubing

ISO Publications:

ISO 3304     Plain end seamless precision steel tubes, technical conditions for delivery

ISO 5598     Fluid power systems and components - Vocabulary

ISO 8434-2  Metallic tube connections for fluid power and general use - Part: 2  37° flare fittings

ISO 8434-3  Metallic tube connections for fluid power and general use - Part: 3 ORFS fittings

ISO 10583   Hydraulic fluid power - Test methods for tube connections

ISO 10763   Hydraulic fluid power - Plain-end, seamless and welded steel tubes - Dimensions and

                    nominal working pressure.
