| Place of Origin: | China |
|---|---|
| Brand Name: | TORICH |
| Certification: | ISO 9001-2008 TS16949 ISO 14001 NK RINA |
| Model Number: | EN10305-1 |
| Minimum Order Quantity: | 5 Ton |
| Price: | negotiable |
| Packaging Details: | Packing in wooden, hexagonal box or other seaworthy ways |
| Delivery Time: | 30 days |
| Payment Terms: | T/T L/C D/P D/A WesternUnion MoneyGram Others |
| Supply Ability: | 60000 Ton/Year |
| Material: | Carbon Steel | Steel Grade: | E235, E355,E215 Etc |
|---|---|---|---|
| Outside Diameter: | 6-380mm | Wall Thickness: | 1-35mm |
| Length: | According To Customer's Request | Shape: | Round |
| Producction Method: | Seamless Cold Drawn And Cold Rolling | Standard: | EN10305-1 |
| Usage: | For Gas Cylinder Applications, Oil Cylinders/Telescopic Cylinders | ||
| High Light: | precision stainless steel tubing,seamless carbon steel tube |
||

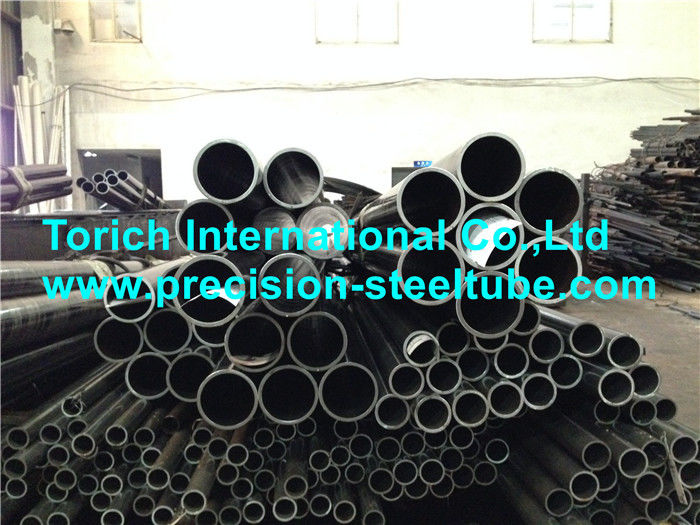

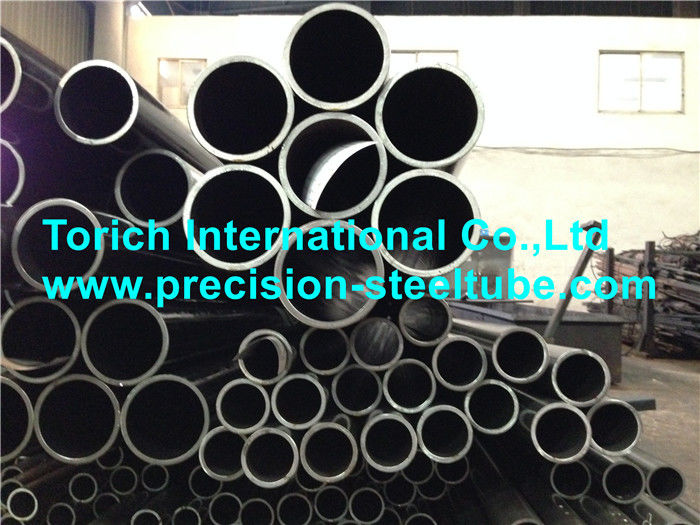

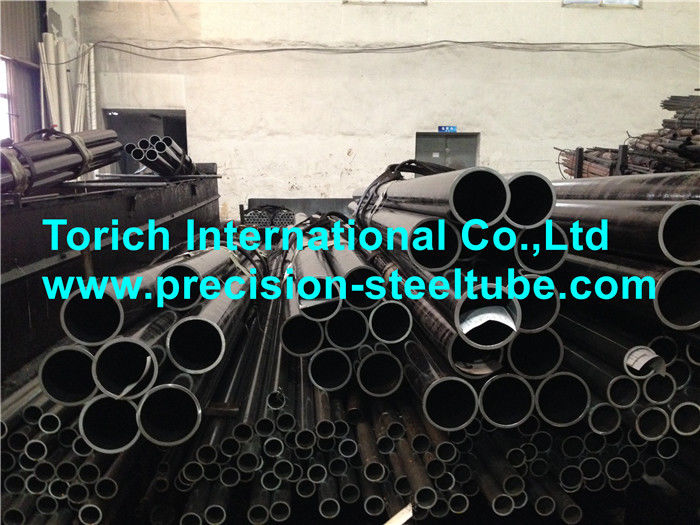

EN10305-1 Telescopic Cylinders Gas Cylinder Tube with Cold Processing Production
Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes
Steel Tubes for precision applications.
Applications: for Gas Cylinder Applications, Oil Cylinders/Telescopic Cylinders
Size Range: O.D.:6-380mm W.T.:1-35mm L:max12000mm
Steel Grade: E235, E355,E215 etc
Steel Grade and Chemical Compositions:
| Steel Grade | C | Si | Mn | P | S | Al | |
| Steel Name | Steel Number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
| Mechanical properties at room temperature | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
Note: Special steel grade is also available, according to customer request.
aRm: tensile strength; ReH: upper yield strength; A: elongation after fracture
b 1Mpa=1N/mm2
c Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strength.
For calculation purposes the following relations are recommended:
for delivery condition +C: ReH ≥0.8 Rm
for delivery condition +LC: ReH ≥0.7 Rm
d For calculation purposes the following relation is recommended:ReH≥0.5Rm
e For tubes with outside diameter ≤30mm and wall thickness ≤3mm the ReH minimum values are 10Mpa lower than the values given in this Table
f For tubes with outside diameter＞160mm: ReH≥420Mpa
