316 Stainless Steel Quilted Grinding Hydraulic Cylinder Pipe
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5 tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | Packing in bundles or as per clients' demand | Delivery Time : | 5-8 weeks days |
Payment Terms : | L/C, T/T | Supply Ability : | 5000tons per year |
Place of Origin: | China | Brand Name: | Torich |
---|---|---|---|
Certification: | IS09001 ISO14001 TS16949 | Model Number: | EN10305-1 |
Detail Information |
|||
Section Shape: | Round | Alloy Or Not: | Non-alloy |
---|---|---|---|
Technique: | Cold Drawn | Thickness: | 4 - 50 Mm |
Standard: | DIN,ASTM | Outer Diameter(round): | 30 - 250 Mm |
Application: | Hydraulic Pipe | Standard2: | DIN 2391 |
Special Pipe: | Seamless Tube | ||
High Light: | En10305 Seamless Pipes,SRB Seamless Pipes,Hot Rolled Hydraulic Cylinder Tube |
Product Description
60X50 H8 Hot Rolled Cold Rolled En10305 St52 E355 BKS SRA Seamless ID Honing/SRB Seamless Pipes
Quick detail :
Origin | China |
Brand name | Torich |
Certificate | ISO9001 TS16949 |
Material | St37.4 St52 ,E355,S45C,1020, |
Product name | 60X50 H8 Hot Rolled Cold Rolled En10305 St52 E355 BKS SRA Seamless ID Honing/SRB Seamless Pipes |
Capacity | Burnished Honed Cutting Chamfering |
Basic introduction
Production method:Seamless Cold drawning,Burnished,Honed
Material of Hydraulic Cylinder Line Tubing:
E195,E235,E355,St37.2 St52 etc.
Shape of Honed tubes :Round etc
Regular size:
60X50
75X60
75X65
80X70
95X80
100X90
105X80
105X90
120X110mm
etc
Steel grade Name |
Steel Number |
C(% max) | Si(% max) | Mn(% max) | P(% max) | S(% max) |
E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.015 |
E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.015 |
E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.015 |
Yield strength (min Mpa) |
Tensile strength (min Mpa) |
Elongation (min %) |
215 | 290-430 | 30 |
235 | 340-480 | 25 |
355 | 490-630 | 22 |
What we can do :
Burnished Honed Cutting Chamfering
Feature:
Compared with the traditional honing process, the fine boring and rolling pipe has the following advantages:
(1) Improve processing efficiency: the processing speed is nearly 20 times that of honing
(2) Improve surface hardness: The surface hardness increases by more than 50%.
(3) Machining accuracy: Machining accuracy can reach IT8 level, and surface roughness can reach Ra0.05-0.4μm
(4) Working environment: low noise, no pollution, saving labor cost
(5) Reasonable processing procedure: Scraping and rolling can be arranged as the last procedure to be processed after other procedures (such as oil port hole drilling, welding, threading, etc.) are completed.

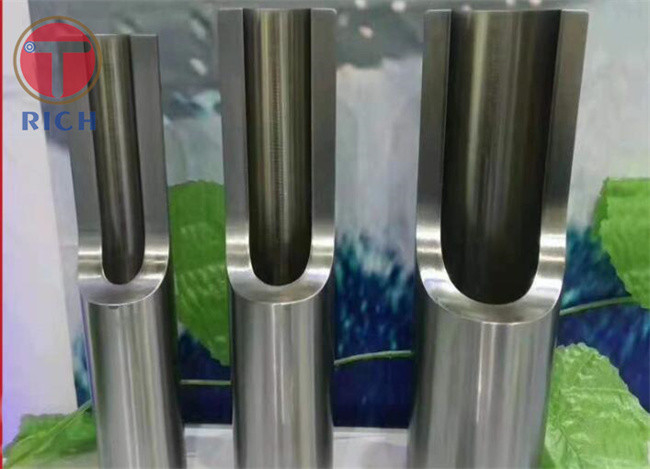

Product show:
Packaging:Wooden cases or according to client’s requirements
Shipping: Land transportation/Ocean transportation
Equipments:
