316 Stainless Steel Quilted Grinding Hydraulic Cylinder Pipe
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1Ton | Price : | USD900-1500 Per Ton |
|---|---|---|---|
| Packaging Details : | Woven bag or wooden case | Delivery Time : | 20-30 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 50000 Ton per years |
| Place of Origin: | China | Brand Name: | Torich |
|---|---|---|---|
| Certification: | ISO9001 |
|
Detail Information |
|||
| Product Name: | Chrome Plated Rod Piston Rod For Hydraulic Pneumatic Cylin | Material: | ST52,CK45,4140 |
|---|---|---|---|
| Keyword: | Chrome Plated Rod | Shape: | Round |
| Usage: | Hydraulic Pneumatic Cylinders | MOQ: | 1Ton |
| Packing: | Woven Bag | OD: | 6-500mm |
| Length: | 1-12 | Brand: | TORICH |
| High Light: | ST52 Chrome Plated Rod,500mm Chrome Plated Rod,Chrome Plated Hydraulic Cylinder Tube |
||
Product Description

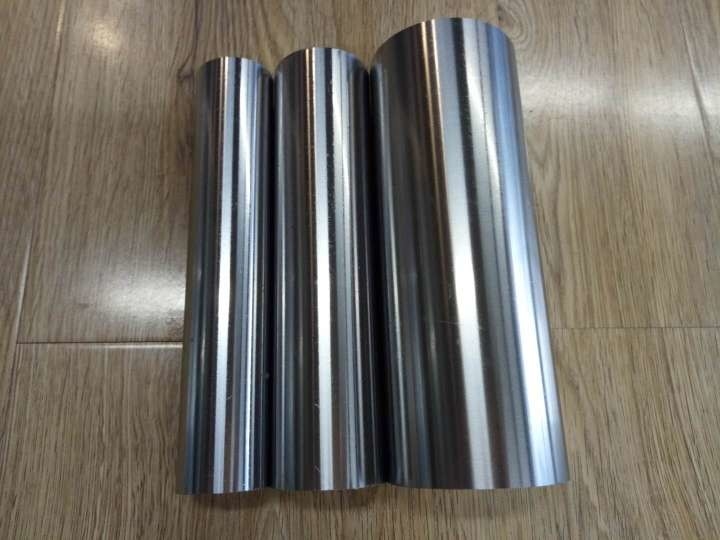

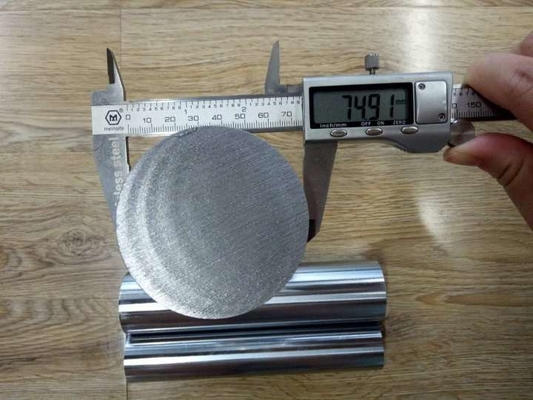

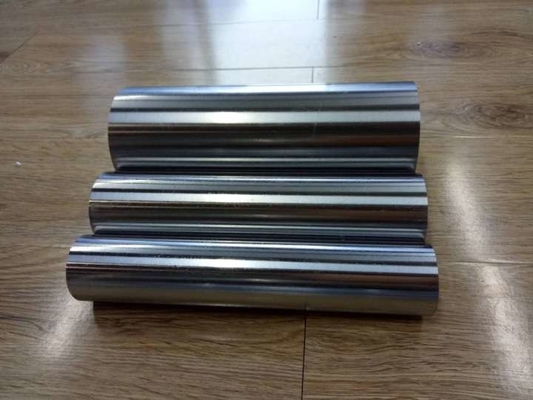

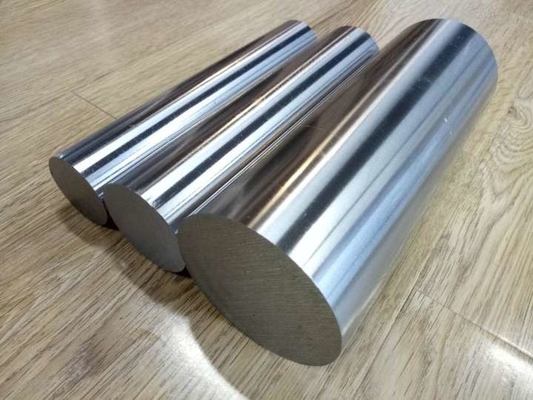

Chrome Plated Rod Piston Rod for Hydraulic Pneumatic Cylinders
Main Process:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging
| Product Name | Chrome Plated Rod/Bar |
| Material |
CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Stainless Steel 304/316/2205, etc. |
| Delivery Condition |
Hard Chrome Piston Rod ( HRC 15-20) |
| Straightness: |
<= 0.2/1000 |
| Roughness: | Ra <= 0.2u |
| Diameter |
As customer’s needs |
| Chrome layer | 20 micron (min) to 100 micron |
| Length | max 13m |
| Roundness |
DIN2391, EN10305, GB/T 1619 |
| Tolerance | ISO f7/h8/g6 |
| Shape | Round |
| Protection: | anti-rust oil on outside surface,hard cardboard sleeve protection |
| Used | Hydraulic Cylinders |
| Packing: | wooden case |
