316 Stainless Steel Quilted Grinding Hydraulic Cylinder Pipe
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 2 tons | Price : | USD2000-2100 per ton |
|---|---|---|---|
| Packaging Details : | Oil protection in bundles or in carton boxes or wooden boxes,accroding to customer's requirement. | Delivery Time : | 30-45 days |
| Payment Terms : | L/C, T/T, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 35 tons |
| Place of Origin: | China | Brand Name: | Torich |
|---|---|---|---|
| Certification: | ISO 9001 ISO 14001 TS 16949 EN 10204.3.1 ABS DNV | Model Number: | CK45 ST52 20MNV6 42CRMO4 40CR |
|
Detail Information |
|||
| Type:: | Hydraulic Cylinder Tube | Steel Grade:: | CK45, ST52, 20MnV6,42CrMo4, 40Cr |
|---|---|---|---|
| I.D.:: | 40-400mm | W.T:: | ≥5mm |
| Alloy Or Not:: | Non-alloy | Length:: | Up To 12000mm According To Customer's Requirement |
| Surface Treatment :: | Chromed, Nickeled | ||
| High Light: | st52 hydraulic cylinder honed tube,torich hydraulic cylinder honed tube |
||
Product Description
40Cr Hard Chrome Rod CK45 Hydraulic Cylinders for ST52 Honing Machine Cylinder
1. Quick details:
| SUPPLY CONDITION | Ground and chrome plated |
| CHROME THICKNESS | 20 to 30 micron |
| SURFACE ROUGHNESS | Ra≤0.2 micron and Rt≤2 micro |
| TOLERANCE ON DIA | ISO f7 on the diameter |
| OVALITY | Half of the tolerance ISO f7 |
| STRAGHNESS | ≤0.2MM/M |
| SURFACE HARDNEDD | 850-1150 HV(vickers 100g) |
| COHESION | No craks,breaking or detaching after thermic shock(warming up at 3200 celsius degrees and cooling in water) |
| POROSITY | Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10 |
| CORROSION RESISTANCE | Test in natural salt spray according to ASTM B117-120hours |
| Results evaluation | accordin to ISO4540 RATING7-10 |
| WELDABILITY | Good |
| PACKING | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| CERTIFICATE | All certificate related with material heat treatment and plating is required |
2.Product Details:
(1)Material: CK45;ST52;20MnV6;42CrMo4;40Cr
(2)Production:Seamless
(3)Chemical components:
| CHEMICAL COMPOSITION(%) | ||||||||||
| Steel Grade | C% | Mn% | Si% | S% | P% | V% | Ni% | Cr% | Mo% | Cu% |
| CK45 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | / | ≤0.25 | ≤0.25 | / | ≤0.25 |
| ST52 | ≤0.22 | ≤1.6 | ≤0.55 | ≤0.04 | ≤0.04 | 0.02-0.15 | / | / | / | / |
| 20MnV6 | 0.17-0.24 | 1.30-1.70 | 0.10-0.50 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 | ≤0.30 | / | ≤0.30 |
| 42CrMo4 | 0.38-0.45 | 0.5-0.8 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.07-0.12 | ≤0.03 | 0.90-1.20 | 0.15-0.25 | ≤0.03 |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | / | ≤0.30 | 0.80-1.1 | / | ≤0.03 |
| MECHANICAL PROPERTIES | ||||||||||
| Material | Tensile Strength Rm (Mpa) |
Yield Strength Rel (Mpa) |
Elogation A% |
CHARPY | CONDITION | |||||
| CK45 | 610 | 355 | 15 | >41J | Normalized | |||||
| CK45 | 800 | 540 | 20 | >41J | Q+T | |||||
| ST52 | 500 | 355 | 22 | Normalized | ||||||
| 20MnV6 | 750 | 590 | 12 | >41J | Normalized | |||||
| 42CrMo4 | 980 | 850 | 14 | >47J | Q+T | |||||
| 40Cr | 1000 | 800 | 10 | Q+T | ||||||

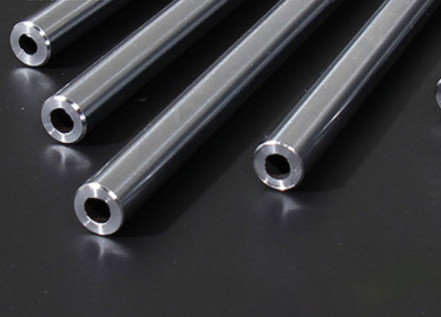

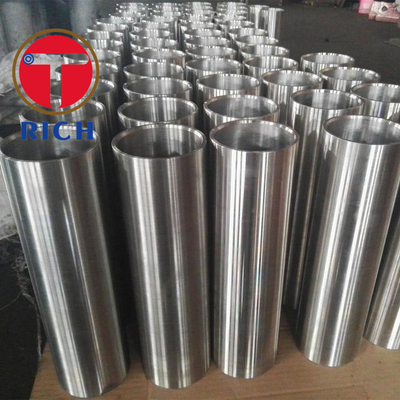

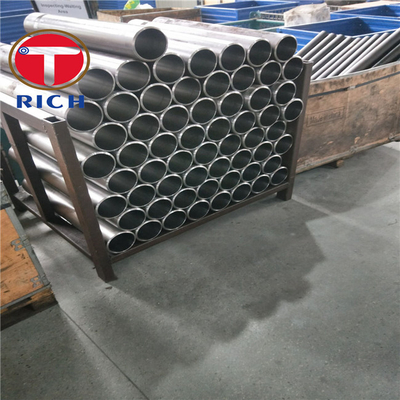

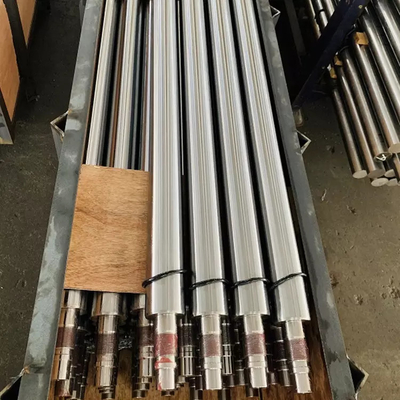

3.Product show:
4.QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
