316 Stainless Steel Quilted Grinding Hydraulic Cylinder Pipe
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5Tons | Price : | USD1000-1500 |
|---|---|---|---|
| Packaging Details : | Hydraulic Cylinder Honed Tube Packing: antirust protection, In hexagon bundles, in wooden box | Delivery Time : | 45-50 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 3000 Tons per Month |
| Place of Origin: | Zhejiang, China (Mainland) | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | EN10305 |
|
Detail Information |
|||
| Surface: | Bright | Shape: | Round |
|---|---|---|---|
| OD: | 5-420mm | WT: | 0.5-50mm |
| Material: | E195, E235, E355 | Usage: | Hydraulic Cylinder |
| High Light: | TORICH Hydraulic Cylinder Tube,E355 Hydraulic Cylinder Tube,EN10305 Hydraulic Cylinder Tube |
||
Product Description

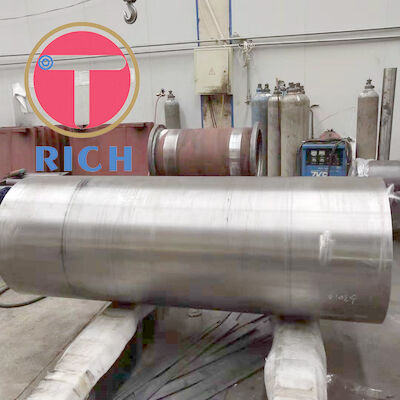

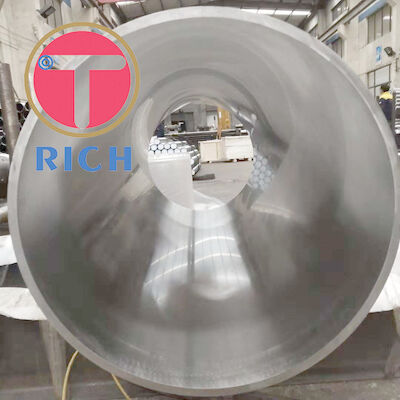

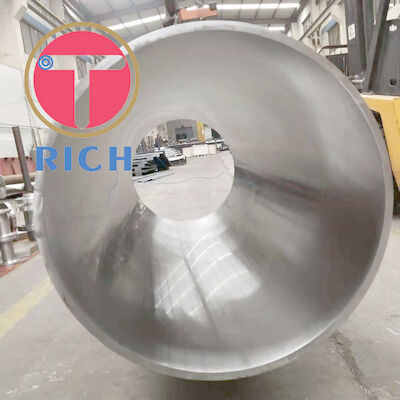

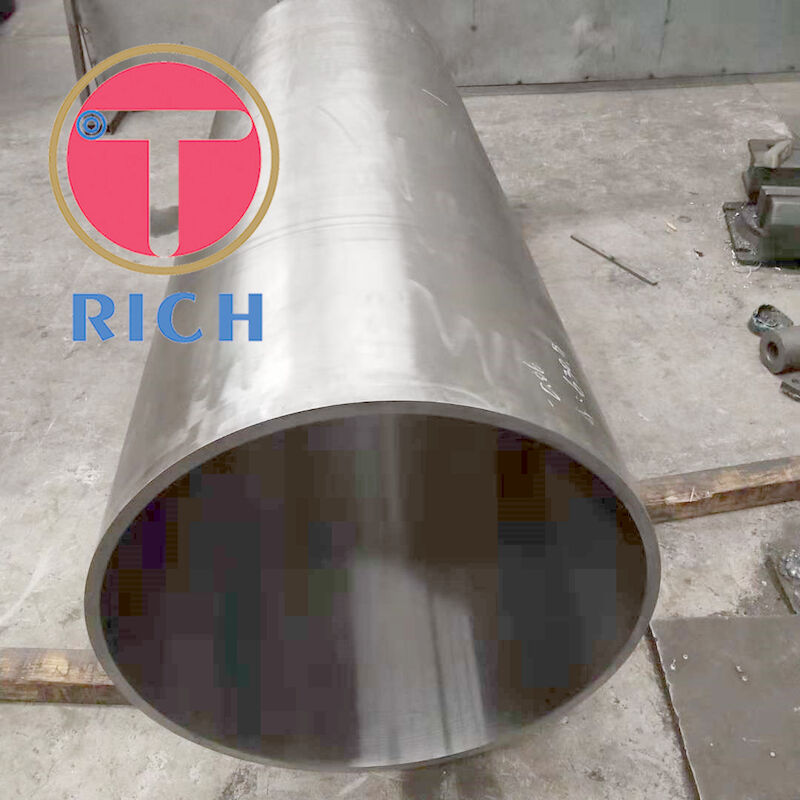

TORICH E355 EN10305 Seamless Pipe Hydraulic Cylinder Honed Tube
Material:
Carbon steel,alloy steel, stainless steel
Standard&Grade:
DIN2391-2 ST52,EN10305-1 E355,C45E,25CrMo4,42CrMo4, CK45,E410, E470,ASTM A519 SAE1020,
SAE1026,SAE1045,SAE1518,SAE1541, SAE4130,SAE4140,SAE4145,SAE4340,etc.
Size Range:
ID of 300mm max for cold drawing,
ID of 500mm for deep hole boring
ID Tolerance:
ISO H8
Manufacture Method:
Cold drawn, hot rolled+deep hole bored
End finish:
Plain ends with square cuts,free of burrs
Bore Roughness:
Ra0.30um max for honed tubes, Ra0.25um Max for Skived&roller burnished tubes
End finish:
Plain ends with square cuts,free of burrs
Usage:
Hydraulic cylinder, Pneumatic Cylinder
Certification:
ISO9001, SGS,
Product Feature:
1.High precision (can cut the costs of machining) .
2.Excellent surface finish
3.Good mechanical performance (Aneal ,Bright Anealing,QT heatment on steel tubes to reach customers' Mechanical requsts. )
1.+C /BK
No heat treatment after final cold drawing process.
2.+LC/BKW
After the final heat treatment there's a suitable drawing pass.
3.+SA/BKS
After the final cold drawing process there's a stress relief heat treatment in controlled atmosphere.
4.+A/GBK
After the cold drawing process the tubes are annealed in a controlled atmosphere.
5.+N/NBK
After the final cold drawing operation the tubes are normalized in a controlled atmosphere.
The honing process makes :
1.Smooth surface finishes inside bores
2.Hold precise tolerances on bore diameters
ID H7 H8 H9
ID roughness 0.2-0.8μm
ID max 630mm
Two thin chips are cut at high feed rate while the tool passes through the workpiece.producing super finish surface,with a bore precise tolerance .
ID H7 H8 H9
ID roughness 0.2-0.8μm
ID max 630mm
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Packing Details : In bundles or in wooden boxes packaging of honed tube
Delivery Details : 30-60days
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
