S45C 304 300mm Hydraulic Cylinder Tube
Basic Properties
Place of Origin:
Zhejiang China
Brand Name:
TORICH
Certification:
ISO 9001
Model Number:
DIN CK45
Trading Properties
Minimum Order Quantity:
1 Ton
Price:
USD 1500-2000 Per Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
500 Tons Per Month
Product Summary
S45C 304 HYDRAULIC CYLINDER HARD CHROME PLATED PISTON ROD Manufacturing Main Process Description: 1. Hydraulic Steel Raw Material Cutting 2. CNC Machining + Hollow Machining 3. Induction Hardening 4. Chrome Plating 5. Dehydrogenation and Tempering 6. Polish and Superfinish Polish 7. 100% Inspection ...
Product Details
Highlight:
304 Hydraulic Cylinder Tube
,S45C Hydraulic Cylinder Tube
,300mm Hydraulic Cylinder Tube
Size:
12-300mm
Material:
20#,45#,40Cr,46CrMo4 Or As Required
Technique:
Cold Drown/peeling
Tolerance:
ISO F7
Chrome Layer Thickness:
15-30μm
Leeb Hardness:
20-60HRC
Application:
Cylinder Tube
Roughness:
Ra ≤0.2u
Straightness:
≤ 0.2/1000
Length:
Max 16m
Product Description

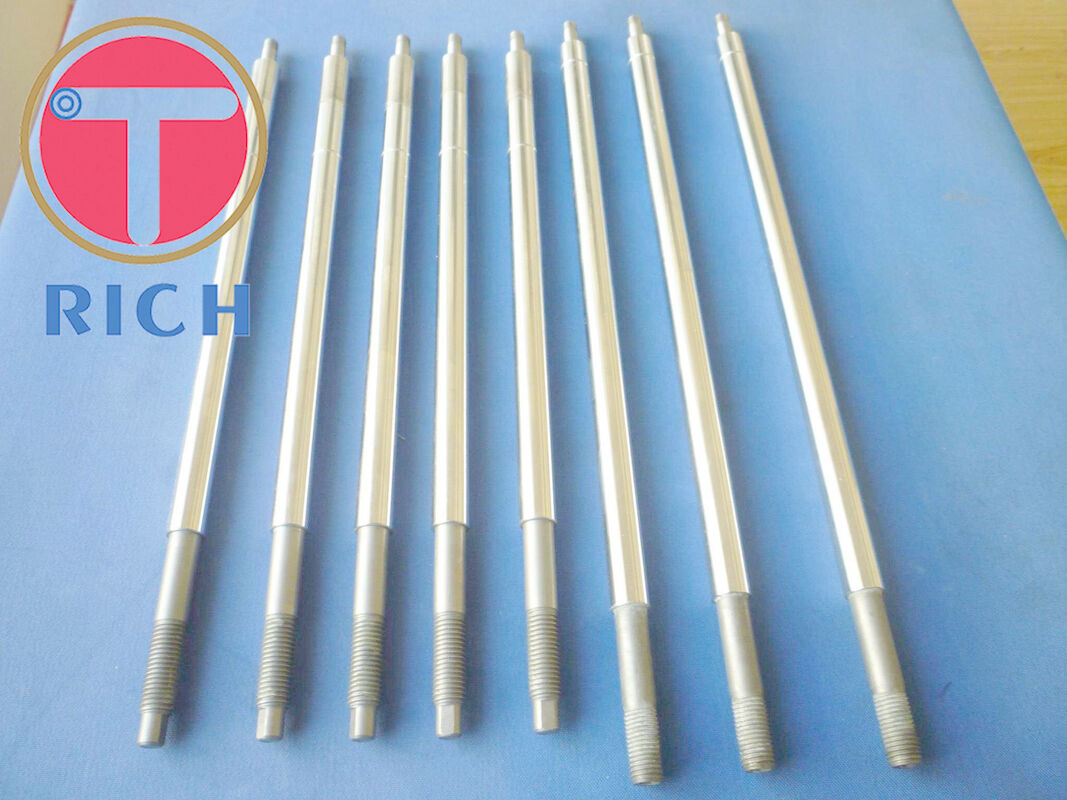

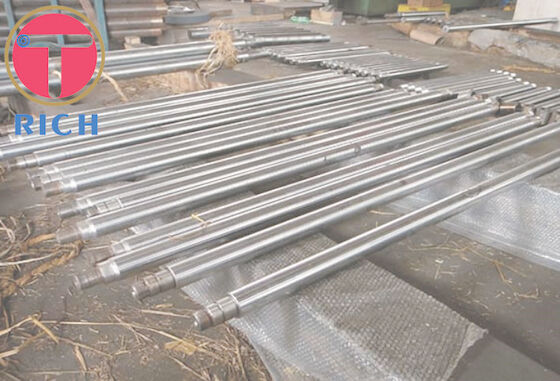

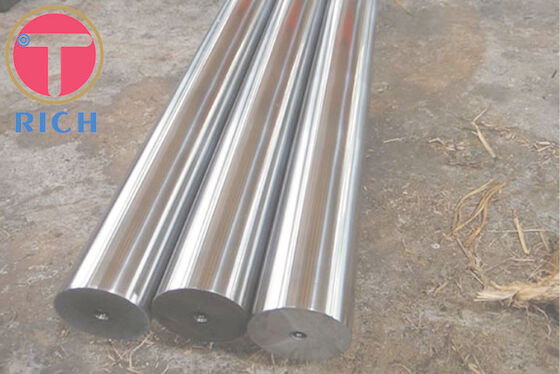

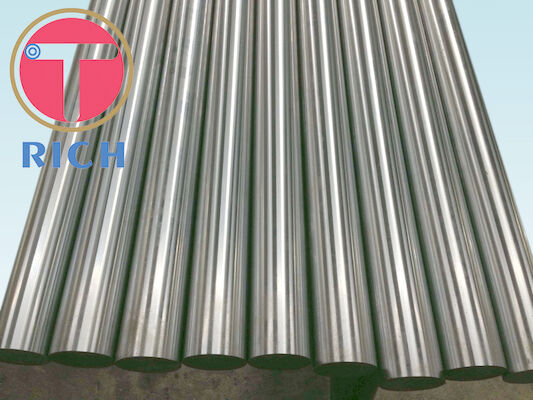

S45C 304 HYDRAULIC CYLINDER HARD CHROME PLATED PISTON ROD
Manufacturing Main Process Description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + Hollow Machining
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging
| Dimension | φ6-250mm |
| Grade | CK45 Hydraulic Hard Chrome Plated Piston Rod |
| Color | Natural Color |
| Tolerance | ISOf7/Customized Requirement |
| Roundness | ≤1/2 Of Diameter Tolerance |
| Standard Length | <φ30mm,2-3meters/On Request Cut Length ≥φ30mm,3-6meters/On Request Cut Length Customized Requirement |
| Surface Roughness | Ra≤0.2 |
| Chrome Layer Thickness | <φ20mm:min15μm ≥φ20mm:min:20μm |
| Chrome Layer Hardness | HV850~HV1050 |
| Straightness | 0.15/1000mm |
| Evaluation Corrosion Test | ISO 10289:1999,IDT |
| Delivery Condition | NORMAL, Q+T, INDUCTION HARDENED |
| Advantage | We inspect each product before package and we give the reasonable price |
