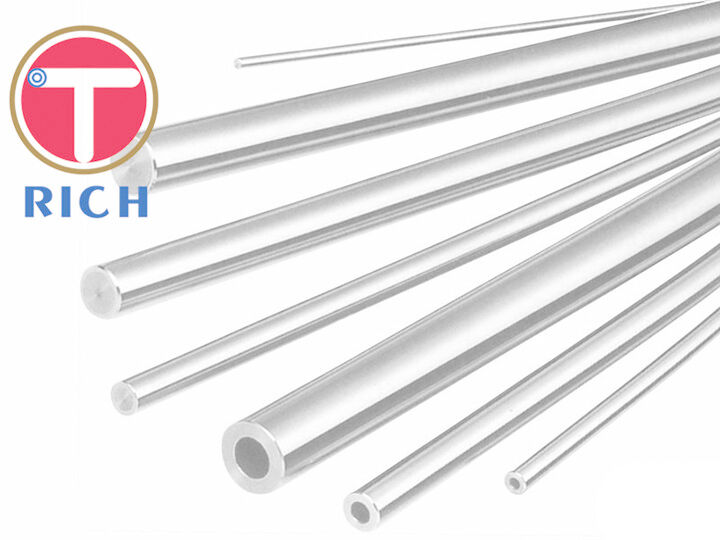

316 Stainless Steel Quilted Grinding Hydraulic Cylinder Pipe
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 1 Ton | Price : | USD 1500-2000 Per Ton |
---|---|---|---|
Packaging Details : | In bundles | Delivery Time : | 4-6 Weeks |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 500 Tons Per Month |
Place of Origin: | Zhejiang China | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | DIN CK45 |
Detail Information |
|||
Size: | 12-300mm | Material: | 20#,45#,40Cr,46CrMo4 Or As Required |
---|---|---|---|
Technique: | Cold Drown/peeling | Tolerance: | ISO F7 |
Chrome Layer Thickness: | 15-30μm | Leeb Hardness: | 20-60HRC |
Application: | Cylinder Tube | Roughness: | Ra ≤0.2u |
Straightness: | ≤ 0.2/1000 | Length: | Max 16m |
High Light: | 12mm Hydraulic Cylinder Tube,Hardened Chromium Hydraulic Cylinder Tube,CK45 Hydraulic Cylinder Tube |
Product Description

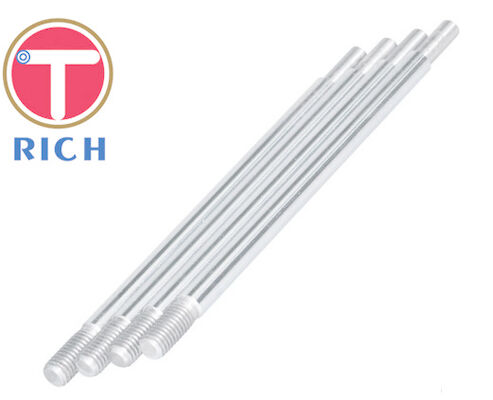

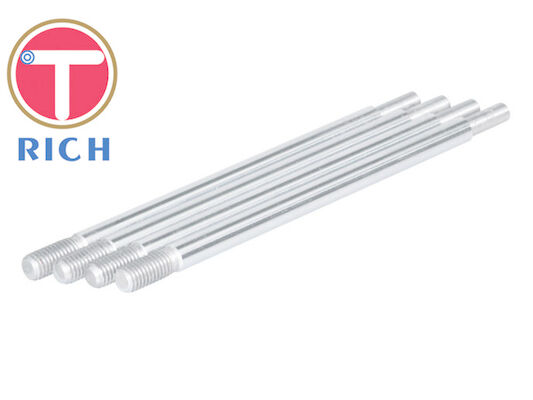

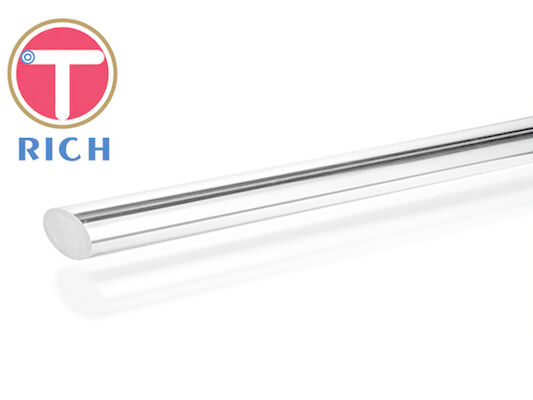

INDUCTION HARDENED CHROMIUM HYDRAULIC CYLINDER PISTON ROD
Outer Diameter: Ø 6mm-30mm
Total Length: 100mm -550mm
Steel Material: 45# DIN CK45/JIS 45C and 35# DIN CK35/JIS 35C
Chrome Thickness: 10~25 μm
Chrome Hardness: 850 HV Min
Roughness: Ra 0.2 Micron Max
Straightness: 0.2/1000mm
Yield Strength: According to the steel material and customer requirement
Tensile Strength: According to the steel material and customer requirement
Elongation: According to the steel materia
Bend Test : According to customer requirement
Supply condition:
1. Hard Chrome Plated
2. Induction Hardened
3. Dehydrogenation & Tempered
Manufacturing Main Process Description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + Hollow Machining
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging
