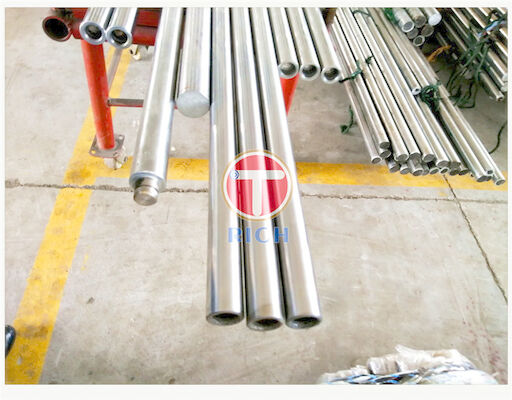

Bright Finished Polished 4130 4140 42CrMo4 QT Hydraulic Ck45 C45E Hard Chrome Round Bar/Steel Bar/Piston Rod
Product Details
4140 Steel Round Bar
,4130 Steel Round Bar
,Torich Steel Round Bar
TORICH bright finished polished 4130 4140 42CrMo4 QT Hydraulic Ck45 C45E Hard chrome round bar/steel bar/piston rod
OD: 6-300mm
Length:1-9m
Material:CK45/ST52/20MnV6/42CrMo/40Cr/Bearing steel/stainless steel/4140 4130 45# 1045 S45C GCr15
Chrome thickness :20-30 micron
Hardness of the chrome layer:800HV(min)
Heat treatment: QT Annealing
Straight:0.2/1000mm
Surface roughness:Ra 0.2 micron(max)
Surface coating: Hard chromed
Tolerance f7
Yield Strength:≥350Mpa
Tensile Strength:≥580Mpa
Elongation:≥15%
Supply condition:1.Hard chrome plated
2.Induction hardened
3.Quenched&Tempered
4.Induction hardened with Q&T
Description:
Material
| Material | C% | Mn% | Si% | S% | P% | V% | Cr% |
| Ck45 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 |
| ≤0.25 |
| ST52 | ≤0.22 | ≤1.6 | ≤0.55 | ≤0.04 | ≤0.04 | 0.02-0.15 |
|
| 20MnV6 | 0.17-0.24 | 1.30-1.70 | 0.10-0.50 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 |
| 42CrMo4 | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.07-0.12 | 0.90-1.20 |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 |
| 0.80-1.10 |
4. Mechancial Properties
| Material | T.S N/MM2 | Y.S N/MM2 | E%(MIN) | CHARPY | CONDITION |
| CK45 | 610 | 355 | 15 | >41J | NORMALIZE |
| CK45 | 800 | 630 | 20 | >41J | Q + T |
| ST52 | 500 | 355 | 22 |
| NORMALIZE |
| 20MnV6 | 750 | 590 | 12 | >40J | NORMALIZE |
| 42CrMo4 | 980 | 850 | 14 | >47J | Q + T |
| 40Cr | 1000 | 800 | 10 |
| Q + T |
Feature
High tolerance
Small quantity is available
Custom made according to customer‘s order
Application:
Hydraulic pneumatic,linear axis ,rof construction machinery,plastic machinery,guded,package mechinery,print machinery ,machinery axis,inear motion.
Packing :
cotton wooden boxes.
-
