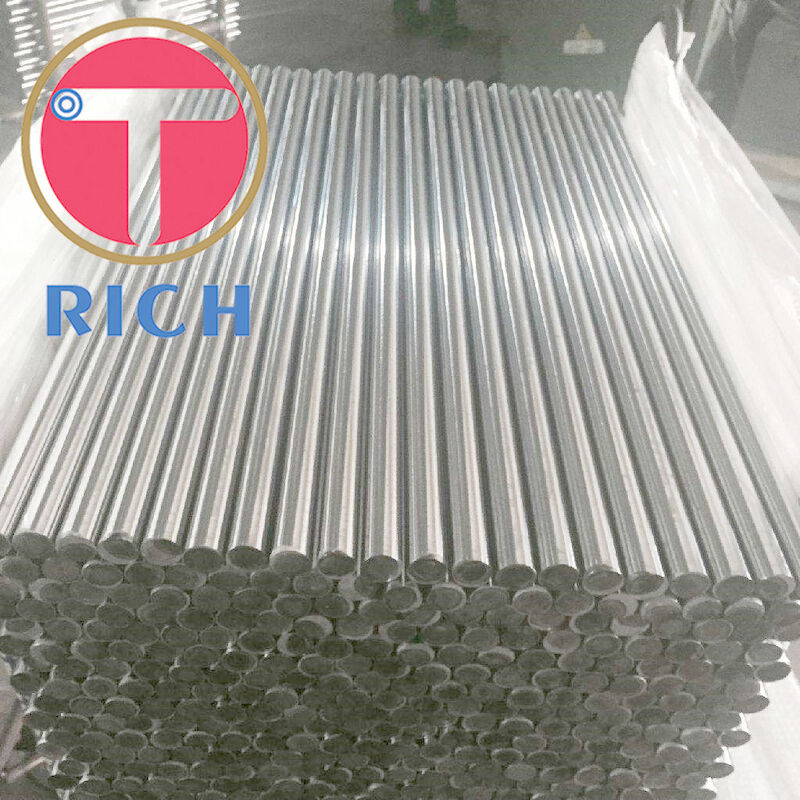

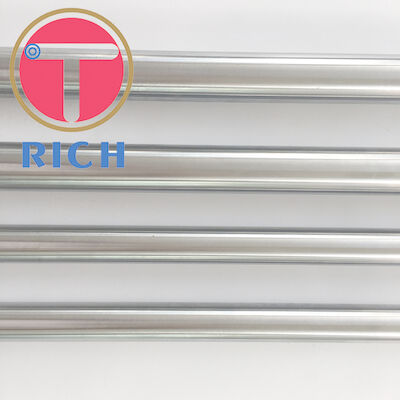

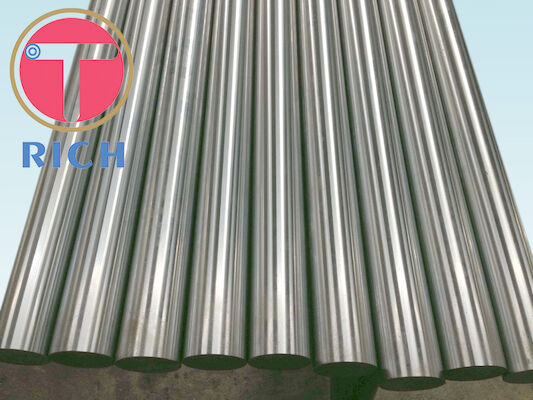

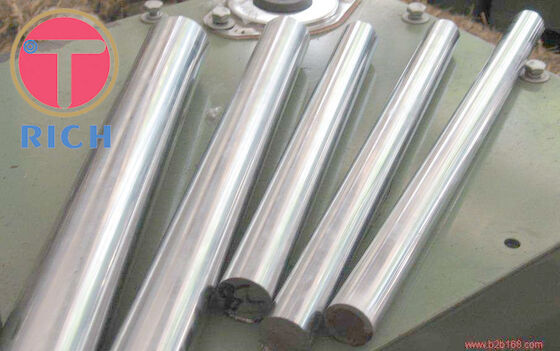

1045 40Cr 2Cr13 Hydraulic Cylinder Piston Rod
Basic Properties
Place of Origin:
Zhejiang
Brand Name:
TORICH
Certification:
ISO
Model Number:
1045 40Cr 2Cr13
Trading Properties
Minimum Order Quantity:
1 Tons
Price:
USD 1050-1300 Per Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000 Tons Per Month
Product Summary
Chrome Plated Rod Specification Material: CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 42CrMo Diameter: Φ 6-500 mm Length: max 16m Chrome layer: 20 micron (min) Hardness of the chrome layer: 800HV-1150HV Roughness: Ra ≤0.2u Straightness: ≤ 0.2/1000 Diameter tolerance: ISO f7 Roundness: the deviation of ...
Product Details
Highlight:
2Cr13 Hydraulic Cylinder Piston Rod
,40Cr Hydraulic Cylinder Piston Rod
,1045 Hydraulic Cylinder Piston Rod
Type:
Hydraulic Power Units
Material:
CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 42CrMo
Hardness::
Temper And Annealing
Diameter:
Φ 6-500 Mm
Length:
Max 16m
Chrome Layer:
20 Micron (min)
Roughness:
Ra ≤0.2u
Straightness:
≤ 0.2/1000
Diameter Tolerance:
ISO F7
Product Description
Chrome Plated Rod Specification
- Material: CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 42CrMo
- Diameter: Φ 6-500 mm
- Length: max 16m
- Chrome layer: 20 micron (min)
- Hardness of the chrome layer: 800HV-1150HV
- Roughness: Ra ≤0.2u
- Straightness: ≤ 0.2/1000
- Diameter tolerance: ISO f7
- Roundness: the deviation of roundness is 50% of the diameter tolerance at the most.
- Supply condition: Hard chrome plated/ Hardened and tempered/ Induction hardened
- Packing: Anti rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden case.
| Product name | piston rod |
| Size | 12-300mm |
| Material | 20#,45#,40Cr,46CrMo4 or as required |
| Technique | cold drown/peeling |
| Tolerance | ISO f7 |
| Chrome layer thickness | 15-30μm |
| Leeb hardness | 20-60HRC |
| Application | cylinder tube |
Packaging Details
1.Coated by antirust oil.
2.Sheathed by paper carton tube, both end covered by roundness paper carton.
3. Cotton rope twined and bundled without interspace, to avoid any surfaced scratched.
4. Plastic film covered overall of bundled bars, to keep seal.
5. (Options) Woven tarpaulin covered overall of bundled bars, to keep packing clear.
6. Lifting belts on the middle of bundled bars.
7. (Options) Wooden box packed.
We adopted the precision cold drawn, honing and polishing to manufacture the Precision Slender Shaft (Piston Rod), every technical target meets the national standard.
And our products are widely used in domestic hydraulic pneumatic, textile industry, print, plastic machine industry.
The Piston Pole
Rod diameter: Φ6-Φ300mm
Material quality: 45# 2Cr13
Supply status: cold-drawing, material adjustment
No surface treatment
surface Cr-plating or
Nickel-phosphorus plating
