Detail Information |
|||
Model Number: | ASTM A270 | Product Name: | ASTM A270 Sanitary Stainless Tubing |
---|---|---|---|
Technique: | Cold Rolled | Surface Treatment: | Polished |
Section Shape: | Round | Material: | TP304, TP304L, TP316, TP316L, 2205 |
WT: | 5 - 40mm | OD: | 25 - 300mm |
Usage: | Medical Equipment Industry | Brand: | Torich |
High Light: | ASTM A270 Stainless Steel Tube,OD300mm Stainless Steel Tube,OD300mm stainless steel round pipe |
Product Description
ASTM A270 Sanitary Stainless Tubing
Product Name
|
Austenitic and Ferritic/Austenitic Stainless Steel Sanitary Tubing
|
Standard
|
ASTM A270
|
Reference Standard
|
ASTM A262, A480/A480M, A923, A967, A1060/A1060M, E527, ASME B46.1
|
Size
|
OD: 25-300mm WT: 5-40mm Length : 1-12m
|
Type
|
Seamless and Welded
|
Material
|
TP304, TP304L, TP316, TP316L, 2205
|
Test
|
Reverse Flattening Test, Hydrostatic or Nondestructive Electric Test
|
Application
|
Use in the dairy and food industry
|
Chemical Composition
Element
|
TP304
|
TP304L
|
TP316
|
TP316L
|
2205
|
C, max
|
0.08
|
0.035
|
0.08
|
0.035
|
0.030
|
Mn, max
|
2.00
|
2.00
|
2.00
|
2.00
|
2.00
|
P, max
|
0.045
|
0.045
|
0.045
|
0.045
|
0.030
|
S, max
|
0.030
|
0.030
|
0.030
|
0.030
|
0.020
|
Si, max
|
1.00
|
1.00
|
1.00
|
1.00
|
1.00
|
Ni
|
8.0-11.0
|
8.0-12.0
|
10.0-14.0
|
10.0-14.0
|
4.5-6.5
|
Cr
|
18.0-20.0
|
18.0-20.0
|
16.0-18.0
|
16.0-18.0
|
22.0-23.0
|
Mo
|
|
|
2.0-3.0
|
2.0-3.0
|
3.0-3.5
|
N
|
|
|
|
|
0.14-0.20
|
Cu
|
|
|
|
|
|
Tensile and hardness requirements
Grade
|
UNS Designation
|
Tensile Strength min, ksi [MPa]
|
Yield Strength min, ksi [MPa]
|
Elongation in 2 in
min, %
|
Rockwell Hardness Number, max
|
TP304
|
S30400
|
75 [515]
|
30 [205]
|
35
|
B90
|
TP304L
|
S30403
|
70 [485]
|
25 [170]
|
35
|
B90
|
TP316
|
S31600
|
75 [515]
|
30 [205]
|
35
|
B90
|
TP316L
|
S31603
|
70 [485]
|
25 [170]
|
35
|
B90
|
2205
|
S32205
|
95 [655]
|
70 [485]
|
25
|
C30.5
|

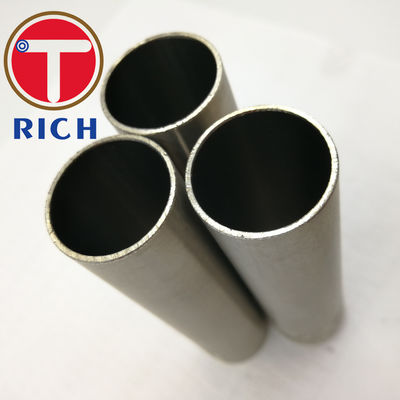

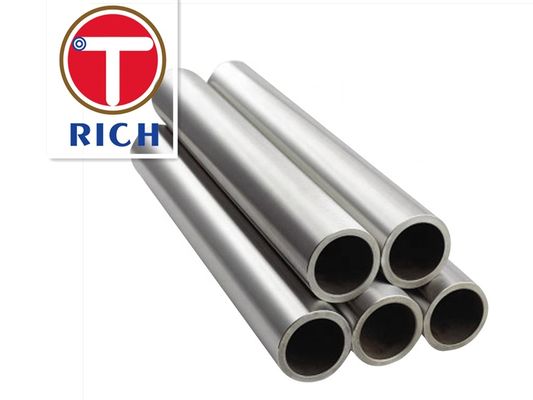

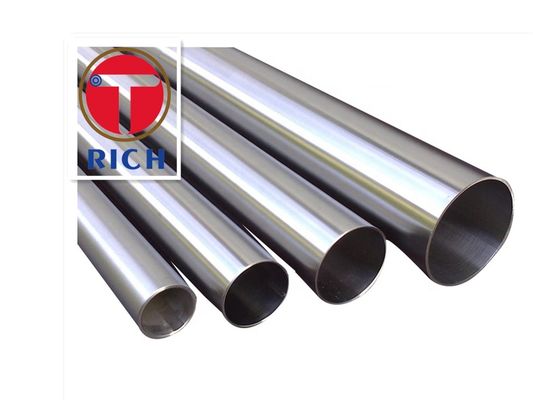

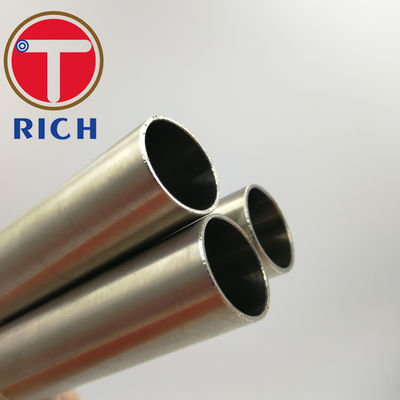

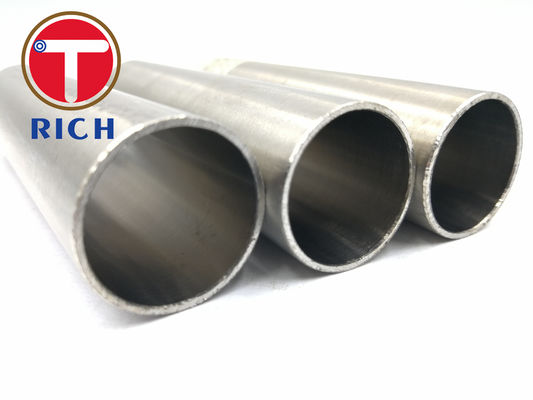

Product Pictures
Company Introduction
QUALITY CONTROL
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects
