Precision Low Carbon Steel Heat Exchanger Tubes ASTM A178 Welded For Boiler Pipe

Brand Name:	TORICH
Model Number:	ASTM SA213 T5
MOQ:	5 Tons
Price:	USD 750-800 Per Ton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 Tons Per Month

Detail Information

Place of Origin:

Zhejiang

Certification:

ISO

Standard:

ASTM A106-2006, GB 5310-1995

Grade Group:

A53-A369

Thickness:

2.11 - 140 Mm

Outer Diameter(Round):

88.9 - 1219 Mm

Section Shape:

Round

Application:

Boiler Pipe

Packaging Details:

Anti Rust Oil Protection, in seaworthy packing

Supply Ability:

100 Tons Per Month

Highlight:

Product Description

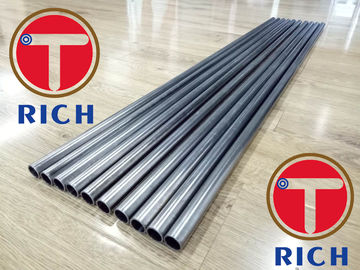

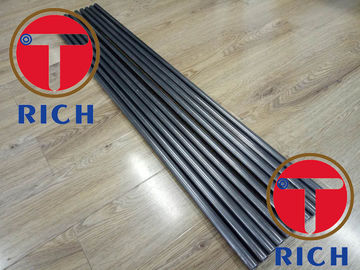

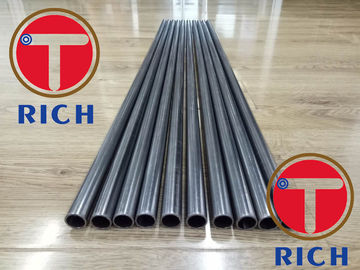

TORICH Low carbon steel Precision ASTM A178 Welded and Drawn Boiler Tubes

1. Available Size Range:

OD		Thickness
mm	inch	mm	SCH
88.9~1422	3''~ 56''	2.11~140	≥SCH10
*If the steel grades and size you are looking for are not listed above, please contact us for further information .

2. Application

Power plant; Chemical Fertilizer; Petrochemicals; Offshore Oils; Gas Productions; Refineries and etc.

3. Standards

ASTM A106 ——Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service

ASTM A335 /ASTM A213 ——Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service

4. Steel pipes No. of main production:

ASTM A335 Grade P5 /T5, P9 / T9, P11, P12, P22, P91, P92

ASTM A106 Grade B, C

5. Dimensional Tolerance

6. Chemical Composition:

High Pressure Boiler Tube Chemical Requirements
Standard	Grade	UNS Designation	Composition, %
Standard	Grade	UNS Designation	C	Mn	P	S	Si	Cr	Mo	Ni	V	Others
ASTM A335	P5/T5	K41545	0.15max	0.30-0.60	0.025	0.025	0.50max	4.00-6.00	0.45-0.65			...
	P9/T9	S50400	0.15max	0.30-0.60	0.025	0.025	0.25-1.00	8.00-10.00	0.90-1.10			...
	P11	K11597	0.05-0.15	0.30-0.60	0.025	0.025	0.50-1.00	1.00-1.50	0.44-0.65			...
	P12	K11562	0.05-0.15	0.30-0.61	0.025	0.025	0.50 max	0.80-1.25	0.44-0.65			...
	P22	K21590	0.05-0.15	0.30-0.60	0.025	0.025	0.50 max	1.90-2.60	0.87-1.13			...
	P91	K91560	0.08-0.12	0.30-0.60	0.02	0.01	0.20-0.50	8.00-9.50	0.85-1.05	0.4	0.18-0.25	N 0.030-0.070
												Al 0.02max
												Cb 0.06-0.10
												Ti 0.01 max
												Zr 0.01max
	P92	K92460	0.07-0.13	0.30-0.60	0.02	0.01	0.50 max	8.50-9.50	0.30-0.60	0.4	0.15-0.25	N 0.03-0.07
												Al 0.02 max
												Cb 0.04-0.09
												W 1.5-2.00
												B 0.001-0.006
												Ti 0.01 max
												Zr 0.01 max
ASTM A106	Grade B		0.3	0.29–1.06	0.035	0.035	0.1	0.4	0.15	0.4	0.08
ASTM A106	Grade C		0.35	0.29–1.06	0.035	0.035	0.1	0.4	0.15	0.4	0.08

7. Mechanical Properties
