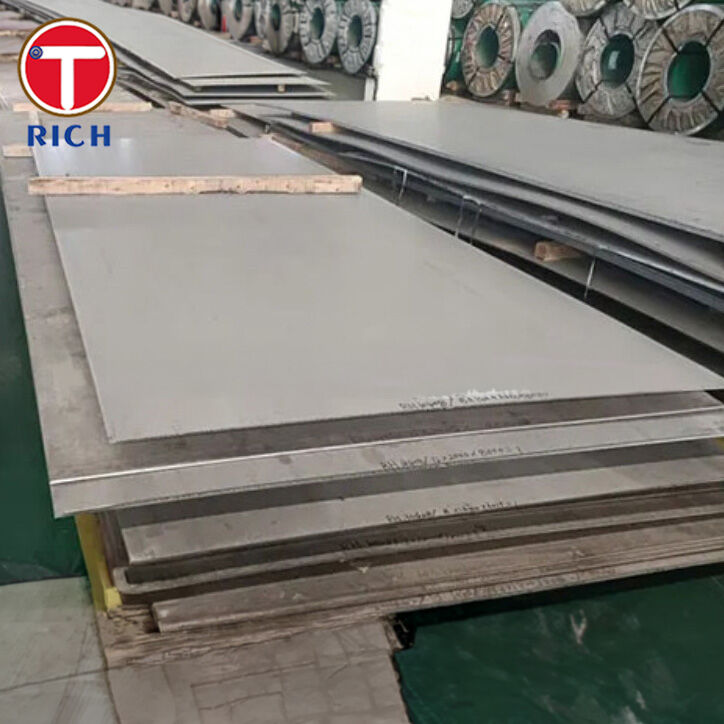

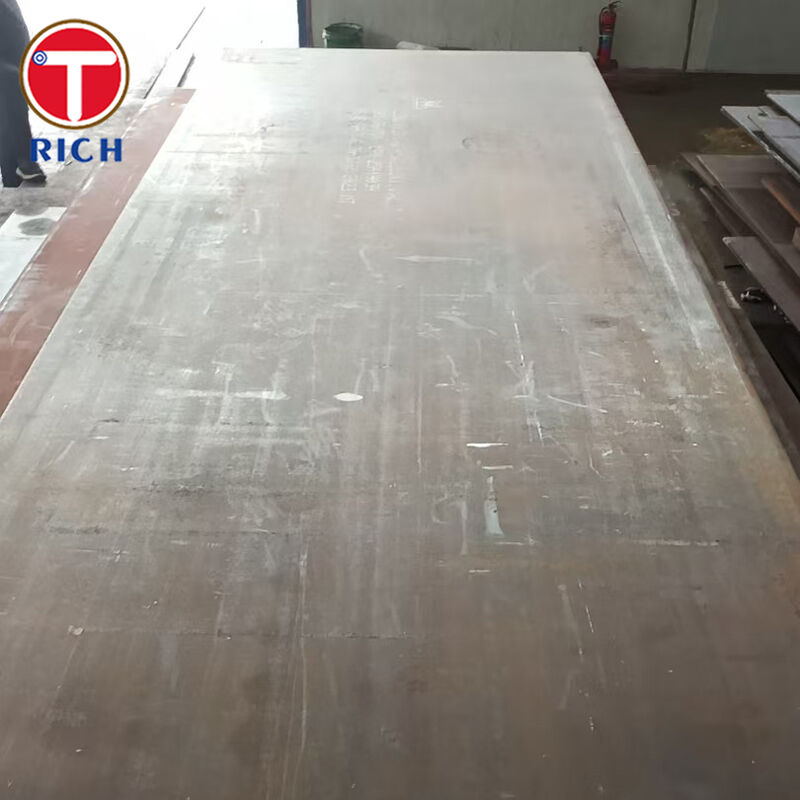

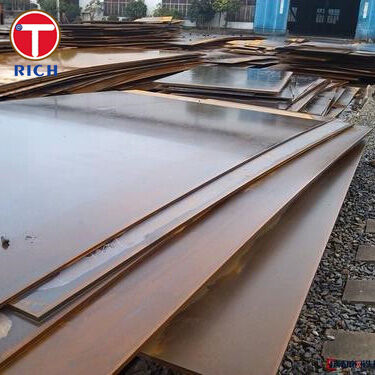

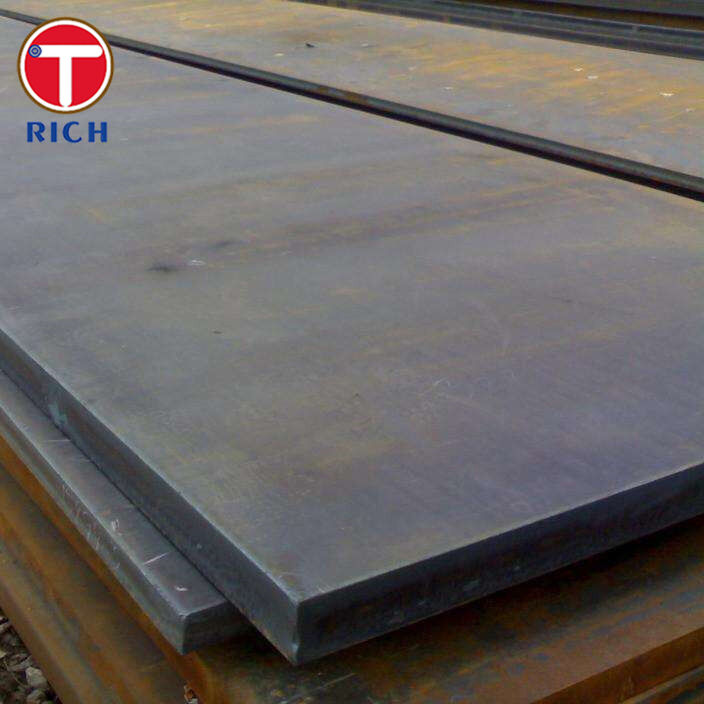

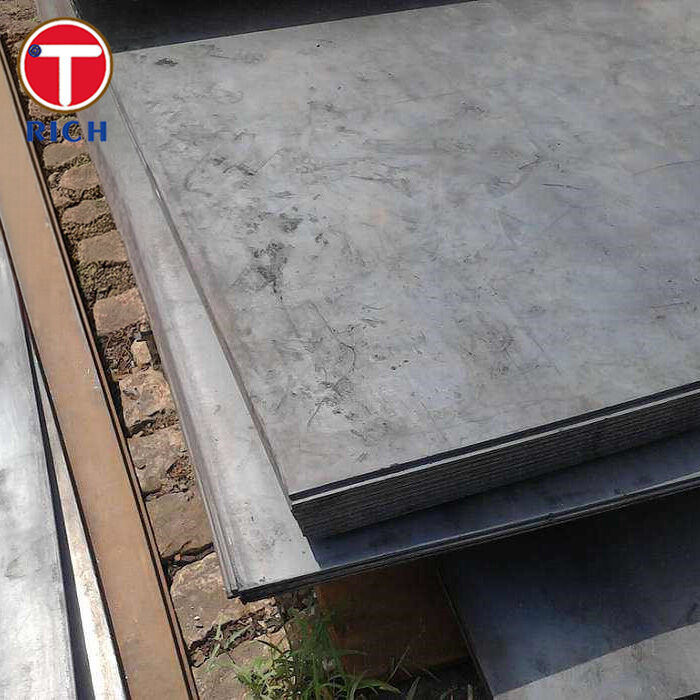

ASTM A131 Grade AH32 Hot Rolled Steel Plate High Strength 315 MPa Yield with Charpy V-notch Impact Toughness for Shipbuilding

ASTM A131 Grade AH32 is a higher-strength structural shipbuilding steel plate developed for welded hull structures, deck structures, offshore support components, and other marine load-bearing parts that require a minimum yield strength of 315 MPa together with defined Charpy V-notch impact toughness. Under ASTM A131/A131M, AH32 belongs to the higher-strength ship steel family, while class approval is normally issued by recognized classification societies such as ABS, BV, CCS, DNV, KR, LR, NK, and RINA according to the project's vessel class requirements.

• Higher structural strength for weight-efficient marine design
  AH32 has a specified minimum yield strength of 315 MPa (46 ksi) and tensile strength of 440-590 MPa under ASTM A131, making it suitable for primary welded structures where ordinary-strength Grade A/B/D/E plate would be insufficient.
• Defined low-temperature notch toughness for marine service
  For AH32 plate, a typical listed Charpy V-notch requirement is 23 ft-lb longitudinal / 16 ft-lb transverse at 32 °F (0°C) for full-size specimens within the listed thickness range, supporting safer structural performance under dynamic marine loading.
• Controlled chemistry for weldability
  AH32 chemistry is limited to C max 0.18%, P max 0.035%, S max 0.035%, with alloy control including Cr max 0.20%, Ni max 0.40%, Cu max 0.35%, Mo max 0.08% and grain-refining elements such as V, Nb, and Al. SSAB also lists CEV max 0.36 for AH32 plate in its offered range, which is useful for weld procedure planning and heat input control.
• Suitable for welded ship panel fabrication
  ASTM A131 ship structural steels are intended primarily for ship construction, and AH32 is widely used in hull and offshore structural fabrication where class traceability, impact performance, and weld consistency are critical.

• Clear class-approval route instead of "mill-only" supply
  Professional buyers usually care first about whether the plate can be accepted by the target class society, not only whether it meets a chemical sheet. IACS confirms that major societies such as ABS, BV, CCS, DNV, KR, LR, NK, and RINA are recognized member organizations in the global class framework. We therefore position AH32 supply around class-compatible documentation, inspection records, and order-specific society endorsement, rather than only nominal grade compliance.
• Chemistry focused on weldability and fabrication stability
  Buyers of AH32 commonly worry about crack sensitivity during panel welding and block assembly. ASTM A131 controls carbon, phosphorus, sulfur, and alloy additions, while commercial AH32 data also shows CEV control around 0.36 max in the offered plate range. This supports more stable WPS qualification, more predictable preheat control, and lower fabrication risk than loosely specified non-class structural plate.
• Mechanical properties tied to impact testing, not tensile data alone
  Another common concern is that some suppliers emphasize yield and tensile values but understate impact-test obligations. ASTM A131 differentiates marine grades by toughness class, and SSAB's published ASTM A131 data shows explicit CVN temperatures and absorbed-energy thresholds for A/B/D/E and AH32 families. That means procurement can be aligned with actual service temperature and structural zone, not just strength level.

Specific product example:
Bulk carrier deck longitudinal reinforcement plate -- AH32 hot rolled plate is suitable for deck strength members that require improved yield strength and verified notch toughness while maintaining good weldability for large block fabrication.

The table below summarizes five commonly referenced ASTM A131 grades for buyer comparison. Values are specification limits or formula requirements as listed in referenced grade data.
