TP304 TP316 Stainless Steel Tube Boiler Heat Exchanger Pipe ASTM A213
Product Details:
|
|
Place of Origin: | CHINA |
---|---|
Brand Name: | TORICH |
Certification: | ISO9001, TS16949 |
Model Number: | ASTM A270 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1tons |
Price: | negotiable |
Packaging Details: | in bundles with seaworthy packing, in wooden box |
Delivery Time: | 45-60 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 60000ton/year |
Detail Information |
|||
Product Name: | ASTM A270 Food Grade 316 Seamless Stainless Steel Sanitary Pipe | Standard: | ASTM A270 |
---|---|---|---|
Technique: | Cold Drawn | Section Shape: | Round |
Certification: | ISO9001, TS16949 | Alloy Or Not: | Stainless |
Secondary Or Not: | Non-secondary | Special Tube: | Food Grade Stainless Steel Pipe |
Surface: | Satin / Hairline | Hea Treatment: | Yes |
High Light: | stainless steel round tube,stainless tube steel |
Product Description

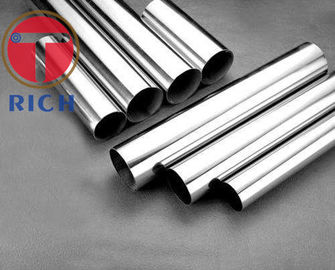

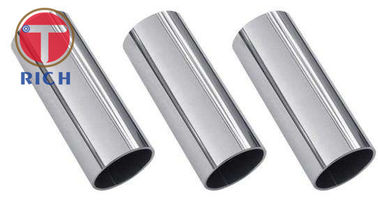

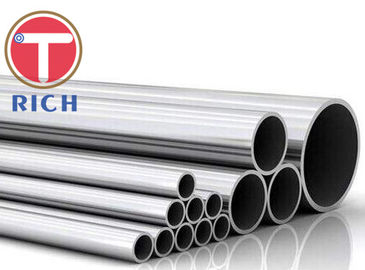

ASTM A270 Food Grade 316 Seamless Stainless Steel Sanitary Pipe
ASTM A270 Food Grade 316 Seamless Stainless Steel Sanitary Pipe
Application: Mainly used in beer, beverages, diary, bio-pharmaceuticals, daily, cosmetics, concentrated drying equipment industries.
Size Range:
OD:12-254mm
WT: 1-12mm
Length: 6000mm or per customer’s request
Material:
Grade: stainless steel 304, 316
Chemical Properties | ||||||||
C | Si | Mn | P | S | Cr | N | Mo | |
304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.0~20.0 | 8.0-10.5 | - |
316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.0~18.0 | 10.0-14.0 | 2.0-3.0 |
Manufacture:
Pipes shall be made by the seamless process.
Mechanical Properties:
Mechanical Properties: | ||||
Tensile Strength (Mpa) | Yield Strength (Mpa) | Hv | Extension % | |
304 | ≥ 520 | ≥ 205 | <200 | ≥35 |
316 | ≥ 520 | ≥ 205 | <200 | ≥35 |
Surface:
180G, 320G, 400G Satin / Hairline
Packing:
With strong wood structure box packing by containers loading and shipping.
Or as customer's requirement.
