C10200 Cold Drawn Seamless Low Fin Tube For Boiler And Heat Exchanger

Brand Name:	TORICH
Model Number:	ASTM A 179
MOQ:	5 Tons
Price:	USD 650-750 Per Ton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang

Certification:

ISO

Model No.:

C10200

Standard:

DIN, JIS, ASTM, GB

Material:

C10200, C11000 Etc

Fin Thickness:

0.1mm - 2mm

Tube OD:

8mm - 55mm

Length:

Max 12m

Surface:

Copper Coated

Application:

For Boiler And Heat Exchanger

Packaging Details:

Anti Rust Oil Protection, in seaworthy packing

Supply Ability:

1000 Tons Per Month

Highlight:

high carbon steel tube

heat exchanger tubes

boiler cold finish fin tube

Product Description

Products Description

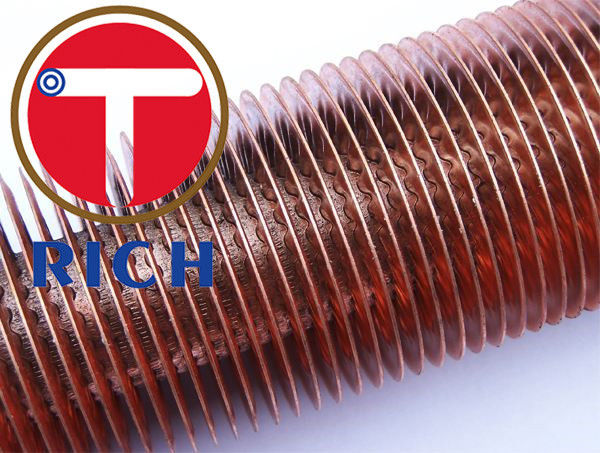

TORICH C10200 Cold Drawn Seamless Copper Low Fin Tube for Boiler and Heat Exchanger

Material	C10200, C11000 Etc
Size	Fin Thickness: 0.1-2mm; Tube OD: 8-55mm; Length: max 12m
Fin Pitch	Customize
Surface	Copper Coated
End protector	Plain End / Beveled End
Application	Oil&Gas Well Drilling, For Heat Exchanger
Test	Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test

Quick Detail:
Low Finned Tubes add short fin in the tube wall that greatly increase the surface area over smooth tube. The fins are formed into the tube wall so the outside diameter of the fins are not larger than the pre-finned smooth tube.Energy Transfer is solely focused on producing the largest variety and most complete solutions for finned tubing. Low finned tubes can be provided with a smooth or rifled tube inside surface.

Plain tube (mm)	Finned section dimensions (mm)				Ratio	De
D×t	Tp	dd	dr	di	η	mm
19×2	0.8	18.8	17	134	2.8	17.9
19×2	1	18.8	16.8	13.4	2.5	17.8
19×2	1.25	18.8	16.6	13	2.2	17.8
19×2	1.5	18.8	16.4	13	2	17.7
19×2	2	18.8	23	13	1.7	17.5
25×2.5	0.8	24.8	22.6	18.8	2.8	23.9
25×2.5	1	24.8	22.3	18.8	2.75	23.7
25×2.5	1.25	24.8	22.3	18	2.5	23.6
25×2.5	1.5	24.8	22.3	18	2.2	23.5
25×2.5	2	24.8	22	18	1.8	23.4
25×2.5	2.5	24.8	22	18	1.6	23.3
D------Outside diameter of plain end section Dof----Diameter of top fins Dr-----Root diameter of finned section Di-----Inside diameter of finned section T------Wall thickness of plain end section Tp-----Fin pitch De----Equivalent diameter of finned tube L------Plain tube end length

Product Show

QUALITY CONTROL:

1.Incoming Raw Material Inspection

2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

FAQ

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
