Precision Seamless Carbon Steel Mechanical Tubing 1045 4130 4140 Cold Drawn Gun Tube 25.25 x 7.5

Name: Precision Seamless Carbon Steel Mechanical Tubing 1045 4130 4140 Cold Drawn Gun Tube 25.25 x 7.5
Brand: TORICH INTERNATIONAL LIMITED
SKU: SAE1045
Price: 2,550.00 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	SAE1045
MOQ:	5 Tons
Price:	negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang

Certification:

ISO

OD:

6mm~350mm

WT:

1mm~50mm

Tolerance:

+/-0.1mm

Application:

For Auto Parts, Machinery Parts

Surface:

Anti Rust Oil

End Protector:

Plastic Pipe Cap

Packaging Details:

Anti Rust Oil Protection, in seaworthy packing

Supply Ability:

1000 Tons Per Month

Highlight:

cold drawn seamless tube

cold drawn steel tube

Product Description

Products Description

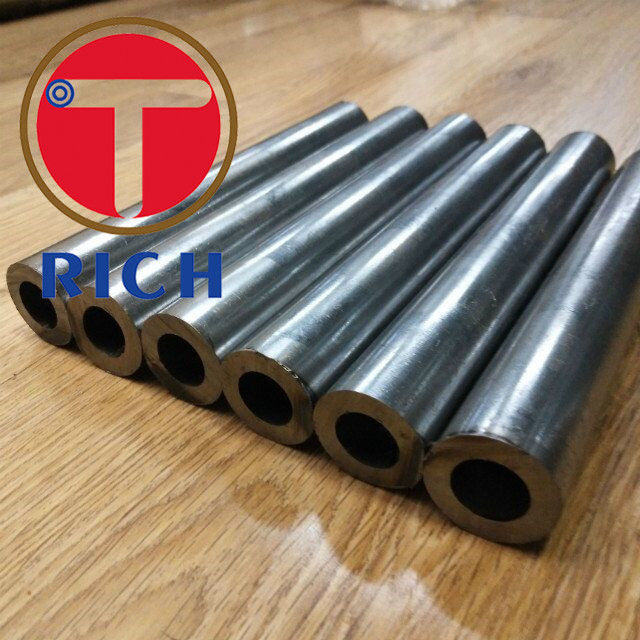

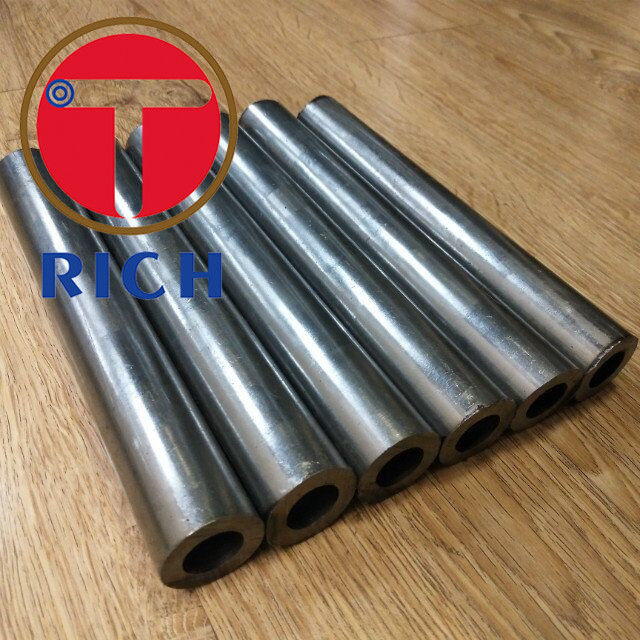

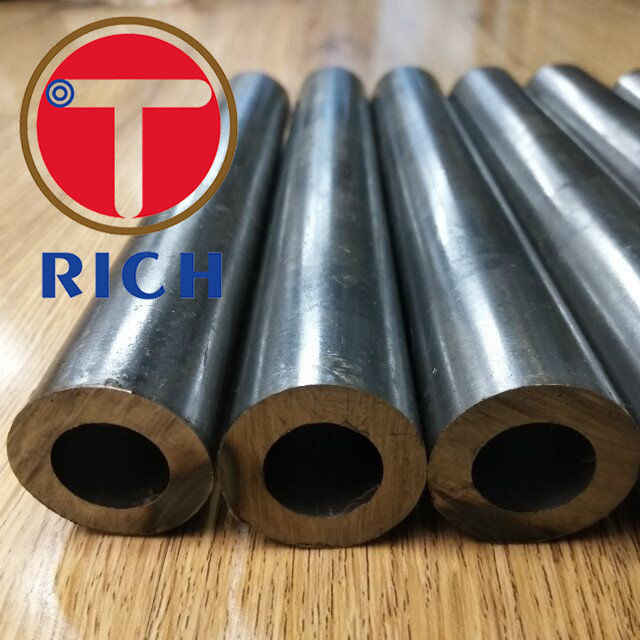

TORICH SAE1045/45# Precision Cold Drawn Seamless Carbon Steel Round Mechanical Tubing

Material	1045 4130 4140 etc
Size	OD: 1mm~50mm WT: 6mm~350mm Length: according to customer requirement
Technique	Cold Draw/Cold Rolled
Surface	Anti Rust Oil
End protector	Plastic Pipe Cap
Tolerance	It can be controled within OD/Thickness +/-0.1mm
Application	Auto Parts, Machinery Parts
Test	Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test

Chemical Requirements

Steel grade	C max	Mn	P max	S max	Si max	Cr max	Mo
1045	0.45-0.50	0.60-0.90	0.04	0.05
4130	0.28-0.33	0.40-0.60	0.04	0.04	0.15-0.35	0.80-1.10	0.15-0.25
4140	0.38-0.43	0.75-1.00	0.04	0.04	0.15-0.35	0.80-1.10	0.15-0.25

Mechanical properties

Steel Grade	Tensile Strength, min	Yield Strength, min	Enlongation %, min	Rockwell Hardness B Scale
1045 HR	75 ksi 517Mpa	45ksi 310Mpa	15%	80
1045CW	90ksi 621Mpa	80ksi 552Mpa	5%	90
1045SR	80ksi 552Mpa	70ksi 483Mpa	8%	85
1045A	65ksi 448Mpa	35ksi 241Mpa	20%	72
1045N	75ksi 517Mpa	48ksi 331Mpa	15%	80
4130 HR	90ksi 621Mpa	70ksi 483Mpa	20%	92
4130 SR	105ksi 724Mpa	85ksi 586Mpa	10%	95
4130A	75ksi 517Mpa	55ksi 379Mpa	30%	81
4130N	90ksi 621Mpa	60ksi 414Mpa	20%	89
4140 HR	120ksi 855Mpa	90ksi 310Mpa	15%	100
4140 SR	120ksi 855Mpa	100ksi 689Mpa	10%	100
4140 A	80ksi 552Mpa	60ksi 414Mpa	25%	85
4140 N	120ksi 855Mpa	90ksi 621Mpa	20%	100

Product Show

QUALITY CONTROL:

1.Incoming Raw Material Inspection

2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

FAQ

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not

in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us
