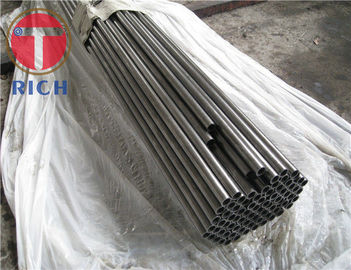

ASTM A519 1035 Seamless Carbon And Alloy Steel Mechanical Tubing For Hydraulic
Product Details:
|
|
Place of Origin: | ZHEJIANG, CHINA |
---|---|
Brand Name: | TORICH |
Certification: | ISO9001, ISO14001, TS16949 |
Model Number: | ASTM A192 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 5Tons |
Price: | negotiable |
Packaging Details: | Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing. |
Delivery Time: | 30-45 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 2000Tons per Year |
Detail Information |
|||
Keyword: | Carbon Steel Boiler Tubes | Standard: | ASTM A192 |
---|---|---|---|
Material: | 10# 20# Etc Carbon Steel | OD: | 12.7-177.8 Mm |
WT: | 1-25.4 Mm | Length: | Customer Requirement |
Surface: | Oiled | Usage: | Boilers/Superheaters |
High Light: | seamless steel pipe,precision stainless steel tubing |
Product Description
Standard
|
ASTM A192
|
Matrial
|
10# 20# etc Carbon Steel
|
Size
|
OD: 12.7-177.8mm WT: 1-25.4mm Length: according to customer requirement
|
Application
|
For Boilers,Superheaters, Heat-Exchangers, High-pressure Boilers
|
Production
|
Tubes are manufactured by seamless process and both hot finished and cold finished are applicable
|
Heat treatment
|
Hot finished tubes need not be heat treated.
Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher |
C
|
0.06-0.18
|
Mn
|
0.27-0.63
|
P
|
≤0.035
|
S
|
≤0.035
|
Si
|
≤0.25
|
Brinell Hardness
|
Rockwell Hardness Number
|
WT≥0.200 in (5.1mm)
|
WT≤0.200 in (5.1mm)
|
137 HRB
|
77HRB
|
Mechanical Properties Tests and Inspection
Tensil Streghth: min ksi[Mpa] 47[325] Flattening Test Flaring Test
Yield Point: min ksi[Mpa] 26[180] Flange Test Hardness Test
Elongation: ≥35% Hydrostatic Test
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
TORICH ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
