ASTM A789 Super Duplex 2507 Pipe Cold Drawn Stainless Steel Tube For Petrochemical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1 ton | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | In bundles with seaworthy packing | Delivery Time : | 45-60days |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram | Supply Ability : | 6000ton |
| Place of Origin: | China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | SO9001:2008 ，TS16949 | Model Number: | TP201 TP304 TP304L |
|
Detail Information |
|||
| Product Name: | Seamless Stainless Steel Tube | Standard: | ASTM A269 |
|---|---|---|---|
| Material: | TP201 TP304 TP304L | Type: | Seamless |
| Terms Of Trade: | FOB Or CIF | Brand: | TORICH |
| Transportation: | Ocean, Air | Certificate: | ISO9001, TS16949 |
| End Protector: | Plain | MTC: | En10204.3.2B |
| High Light: | stainless steel round tube,large diameter stainless steel tube |
||
Product Description

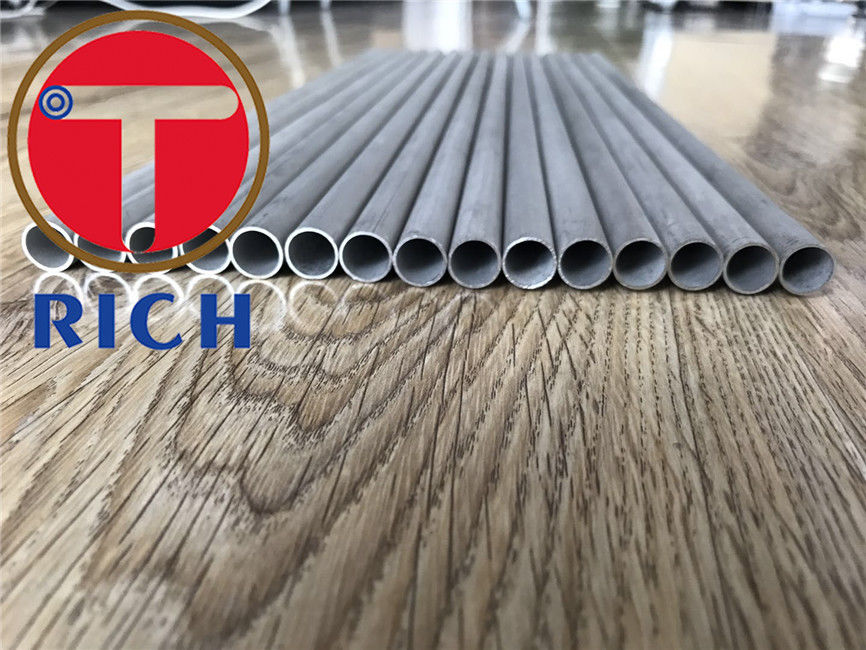

ASTM A269 TP201 TP304 TP304L Seamless Stainless Steel Tube
Size range: I.D.≥6.4mm W.T. ≥0.51mm L: according to customer requirement
Steel Grade and Chemical Compositions:
| Grade and chemical composition% | |||||||||
| C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni | Other | |
| 201 | ≤0.15 | ≤1.00 | 5.5-7.5 | 0.06 | 0.03 | 16-18 | - | 3.5-5.5 | N≤0.25 |
| 202 | ≤0.15 | ≤1.00 | 7.5-10.0 | 0.06 | 0.03 | 17-19 | - | 4.0-6.0 | N≤0.25 |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | - | 6.0-8.0 | - |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 8-10.0 | - |
| 303 | ≤0.15 | ≤1.00 | ≤2.00 | 0.2 | ≥0.015 | 17-19 | ≤0.6 | 8.0-10.0 | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 8-10.5 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 9-13 | - |
| 305 | ≤0.12 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 10.5-13 | - |
| 309S | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 22-24 | - | 12-15 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.00 | 0.045 | 0.03 | 24-26 | - | 19-22 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 | - |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 12-15 | - |
| 317 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
| 317L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 9-13 | Ti≥5×C |
| 405 | ≤0.08 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 11.5-14.5 | - | ≤0.6 | AL0.1-0.3 |
| 420F | 0.26-0.4 | ≤1.00 | ≤1.25 | 0.06 | ≥0.15 | 12-14 | ≤0.6 | ≤0.6 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | 0.04 | 0.03 | 16-18 | - | ≤0.6 | |
Manufacture:
Tubes are made by seamless process.
At the manufacturer’s option,, tubing may be furnished either hot finished or cold finished.
Surface Condition:
The tubes shall be pickled free of scale,. When bright annealing is used, pickling is not necessary.
Test and Inspection:
- Mechanical Test
- Tension Test
- Flaring Test
- Flange Test
- Reverse Test
- Hardness Test
- Hydrostatic or Nondestructive Electric Test
