Non - Alloy Hydraulic Cylinder Pipe Din2391 With Outer Diameter 40 - 600mm
Basic Properties
Place of Origin:
Zhejiang China
Brand Name:
TORICH
Certification:
ISO 9001
Model Number:
SAE1026
Trading Properties
Minimum Order Quantity:
10 Ton
Price:
1450 USD per Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Summary
Product Description SAE1026 ST52 E355 CK45 Honed Tube Hydraulic cylinder Pneumatic Cylinder 1. Manufacture Method: Cold drawn, hot rolled+deep hole bored 2. Size: 40mm*30mm - 600mm*500mm 3. Standard: DIN2391-2,EN10305-1,ASTM A519 4. Certification: ISO9001, SGS, Product Name: ST52/E355/CK45/SAE1026 ...
Product Details
Highlight:
honed hydraulic cylinder tubing
,hydraulic cylinder pipe
standard2::
DIN 2391
Grade Group::
10#-45#, ST35-ST52
Section Shape::
Round
Thickness::
4 - 50 Mm
Outer Diameter(Round)::
40 - 600 Mm
Technique::
Cold Drawn
Application::
Hydraulic Cylinder
Alloy Or Not::
Non-alloy
Product Description
Product Description
SAE1026 ST52 E355 CK45 Honed Tube Hydraulic cylinder Pneumatic Cylinder
1. Manufacture Method: Cold drawn, hot rolled+deep hole bored
2. Size: 40mm*30mm - 600mm*500mm
3. Standard: DIN2391-2,EN10305-1,ASTM A519
4. Certification: ISO9001, SGS,
Product Name:
ST52/E355/CK45/SAE1026 honed tube with high quality
Material:
Carbon steel,alloy steel, stainless steel
Standard&Grade:
DIN2391-2 ST52,EN10305-1 E355,C45E,25CrMo4,42CrMo4, CK45,E410, E470,ASTM A519 SAE1020,SAE1026,SAE1045,SAE1518,SAE1541, SAE4130,SAE4140,SAE4145,SAE4340,etc.
Manufacture Method:
Cold Drawn, Hot rolled+Deep Hole Bored
Internal Surface Treatment:
Honing, Skiving&roller burnishing
Size Range:
ID of 300mm max for cold drawing, ID of 500mm for deep hole boring
Delivery Condition:
As rolled, Stress relieved,Annealed,Normalized,Quenched+Tempered
ID Tolerance:
ISO H8
Bore Roughness:
Ra0.35um max for honed tubes, Ra0.25um Max for Skived&roller burnished tubes
End finish:
Plain ends with square cuts,free of burrs
Usage:
Hydraulic cylinder, Pneumatic Cylinder

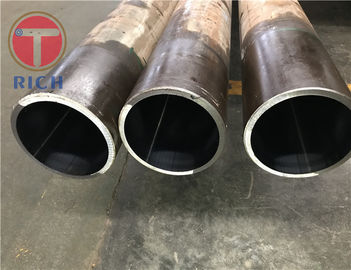

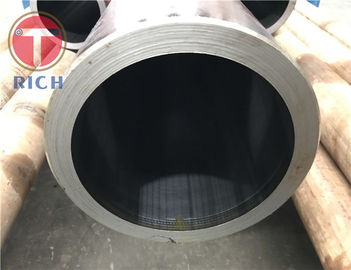

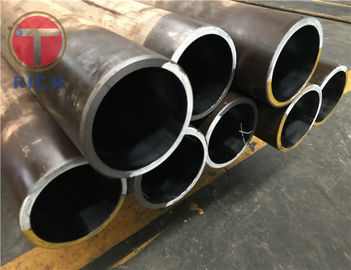

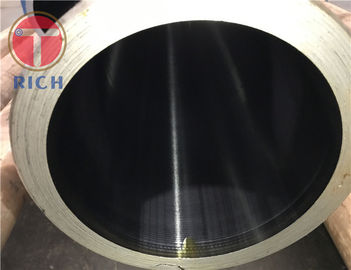

Detailed Images
Who We are ?
-------A professional steel pipes materials inventor, manufacturer and solution provider
Torich International Co.,Ltd is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.
Our factory was established since 1997, with the name of Haiyan Sanxin Steel Pipe Co., Ltd. The factories' technicians are of great engineering experience in steel pipe industry for more than 20 years, which are in great command of production technology for Cold Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.
