GB 28883 Stainless Steel Tube Composite Stainless Seamless Steel Tubes For Pressure
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 1 Tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | In wooden boxes | Delivery Time : | 30-35 Days |
Payment Terms : | D/A, L/C, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 50000Tons/Years |
Place of Origin: | China | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO 9001,ISO 14001,TS 16949 | Model Number: | ASTMA270 |
Detail Information |
|||
Product Name: | ASTM A270 Bright Annealed Stainless Steel Welded Tubes OD 4mm - 1200mm | Key Word: | Stainless Steel Pipes |
---|---|---|---|
OD: | 4-1200mm | WT: | 1-13mm |
Length: | 1-12m | Payment: | L/C T/T D/P D/A |
Materail: | Tp304 Tp310 | Shape: | Round |
Highlight: | stainless steel round tube,stainless tube steel |
Product Description

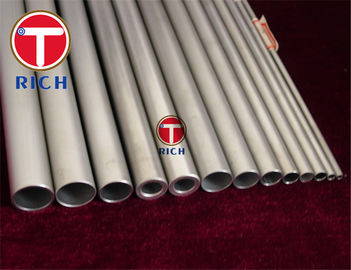

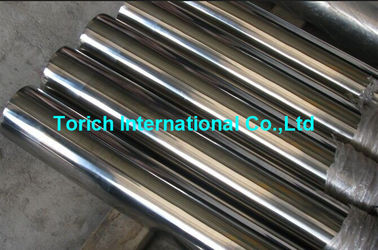

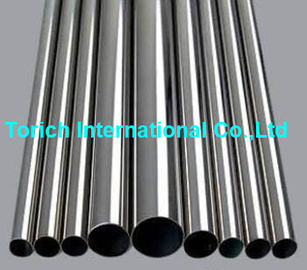

ASTM A270 Bright Annealed Stainless Steel Welded Tubes OD 4mm - 1200mm
Applications: sanitary tubing in the dairy and food industry, and having special surface finishes
Size range: O.D.: 4.0-305mm W.T.:1-50mm L: according to customer requirement
Chemical Requirement
Grade: | TP304 | TP304L | … | TP316 | TP316L | … | … | … |
UNS | S30400 | S30403 | S31254 | S31600 | S31603 | N08926 | N08367 | S31803 |
C, max | 0.08 | 0.035 | 0.020 | 0.08 | 0.035 | 0.020 | 0.030 | 0.030 |
Mn, max | 2.00 | 2.00 | 1.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
P, max | 0.045 | 0.045 | 0.030 | 0.045 | 0.045 | 0.030 | 0.040 | 0.030 |
S, max | 0.030 | 0.030 | 0.010 | 0.030 | 0.030 | 0.010 | 0.030 | 0.020 |
Si, max | 1.00 | 1.00 | 0.80 | 1.00 | 1.00 | 0.50 | 1.00 | 1.00 |
Ni | 8.0-11.0 | 8.0-12.0 | 17.5-18.5 | 10.0-14.0 | 10.0-15.0 | 24.0-26.0 | 23.5-25.5 | 4.5-6.5 |
Cr | 18.020.0 | 18.020.0 | 19.520.5 | 16.018.0 | 16.0-18.0 | 19.0-21.0 | 20.0-22.0 | 22.0-23.0 |
Mo | … | … | 6.0-6.5 | 2.003.00 | 2.00-3.00 | 6.0-7.0 | 6.0-7.0 | 3.0-3.5 |
Ni | … | … | 0.18-0.22 | … | … | 0.15-0.25 | 0.18-0.25 | 0.140.20 |
Copper | … | … | 0.50-1.00 | … | … | 0.50-1.5 | 0.75 max | … |
Grade: | … | … | 2003 |
UNS | S32205 | S32750 | S32003 |
C, max | 0.030 | 0.030 | 0.030 |
Mn, max | 2.00 | 1.20 | 2.00 |
P, max | 0.030 | 0.035 | 0.030 |
S, max | 0.020 | 0.020 | 0.020 |
Si, max | 1.00 | 0.80 | 1.00 |
Ni | 4.5-6.5 | 6.0-8.0 | 3.0-4.0 |
Cr | 22.0-23.0 | 24.0-26.0 | 19.5-22.5 |
Mo | 3.0-3.5 | 3.0-5.0 | 1.5-2.0 |
Ni | 0.14-0.20 | 0.24-0.32 | 0.14-0.20 |
Copper | … | 0.50 max | … |
Group | Size, Outside Diameter, in(mm) | Permissible Variations in Outside Diameter, in.[mm]Over Uder | Permissible Variations in WT, % | Permisible Variations in Cut Length, in[mm] OverUnder | |
1 | 1.000(25.4) and under | ±0.005[0.13] | ±15 | 1/8[3.2] | 0 |
2 | Over 1(25.4) to2(50.8) | ±0.005[0.20] | ±10 | 1/8[3.2] | 0 |
3 | Over 2 (50.8) to3(76.2) | ±0.010[0.25] | ±10 | 1/8[3.2] | 0 |
4 | Over 3(76.2) to4(101.6) | ±0.015[0.38] | ±10 | 1/8[3.2] | 0 |
5 | Over 3(101.6) to 5½(139.7) excl | ±0.015[0.38] | ±10 | 3/16[4.8] | 0 |
6 | 5 ½(139.7) to 8(203.2) excl | ±0.030[0.76] | ±10 | 3/16[4.8] | 0 |
7 | 8(203.2) to 12(304.8) | ±0.050[1.27] | ±10 | 3/16[4.8] | 0 |
Grade | UNS | Tensile Strength min, ksi (Mpa) | Yield strength min ksi [Mpa] | Elongation in 2in or 50mm min % | Rockwell Hardness Number max |
TP304 | S30400 | 75(515) | 30(205) | 35 | B90 |
TP304L | S30403 | 70(485) | 25(170) | 35 | B90 |
TP316 | S31600 | 75(515) | 30(205) | 35 | B90 |
TP316L | S31603 | 70(485) | 25(170) | 35 | B90 |
S31803 | 90(620) | 65(450) | 25 | C30.5 | |
2205 | S32205 | 95(655) | 70(485) | 25 | C30.5 |
2507 | S32750 | 116(800) | 80(550) | 15 | C32 |
2003 | S32003 | 90(620) | 65(450) | 25 | C30 |
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
.
