Welded Precision Steel Tubes EN10305-2 +C +LC +SR +A +N Precision Steel Pipe

Name: Welded Precision Steel Tubes EN10305-2 +C +LC +SR +A +N Precision Steel Pipe
Brand: TORICH INTERNATIONAL LIMITED
SKU: EN10305-2
Price: 2,000.00 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	EN10305-2
MOQ:	5 tons
Price:	USD 1000-3000 ton
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	60000tons per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001 ISO 14001 EN 10204.3.1 TS 16949

Material:

Carbon Steel

Standard:

EN10305-2

Steel Grade:

E155,E195,E235,E275,E355, Other Materials Upon Agreement With Customers.

Size Range:

O.D.:20-350mm W.T.:1-35mm L:max12000mm

Deliver Condition:

+C +LC +SR +A +N

Production Method:

Seamless + Cold Drawn

Characteristic:

High Accuracy

MTC:

EN10204 3.1B

Packaging Details:

oil antirust In hexagonal bundles or per request

Supply Ability:

60000tons per year

Highlight:

precision steel pipe

precision seamless pipe

Product Description

Welded Precision Steel Tubes EN10305-2 +C +LC +SR +A +N Precision Steel Pipe

EN10305-2 E155,E195,E235,E275,E355 +C +LC +SR +A +N Cold Drawn Welded Precision Steel Tubes,

is produced by cold drawing over mandrel and die on the ERW welded steel tube,

to achieve better tolerance and good concentricity,

both outside and inside weld seam is completely removed during the cold drawing process.

Production Process:
Cold rolling by Cold pilger machine and Cold rolling machine

Cold drawing by cold drawn machine
Size: 20-350mm

Please specifiy the final heat treatment when sending the enquiry.

1. Standard:
EN10305-2 Cold Drawn Precision Seamless Steel Pipes

2. Steel Grade:
E155,E195,E235,E275,E355,

other materials upon agreement with customers.

Steel Grade and Chemical Compositions:

Steel Grade		C	Si	Mn	P	S
Steel Name	Steel Number	max	max	max	max	max
E155	1.0033	0.11	0.35	0.70	0.025	0.025
E195	1.0034	0.15	0.35	0.70	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025
E275	1.0225	0.21	0.35	1.40	0.025	0.025
E355	1.0580	0.22	0.35	1.60	0.025	0.025

3. Production method:
Cold drawn on the weled steel tubes, to reach high accuracy on the OD and WT tolerance

4.Size range:
O.D.:20-350mm W.T.:1-35mm L:max12000mm

5. Packing:
In Hexagonal Bundles, with anti-rust oil protection, with seaworthy packing

6.Delivery condition:

1). +C No heat treatment after the final cold drawig process

2). +LC After the final heat treatment there is a suitable drawing pass

3). +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere

4). +A After the final cold drawing process the tubes are annealed in a controlled atmosphere
5). +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere

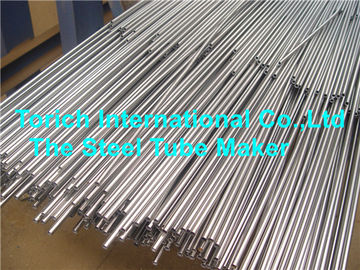

Welded Precision Steel Tubes EN10305-2 +C +LC +SR +A +N Precision Steel Pipe 0

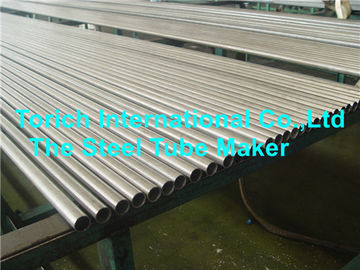

Welded Precision Steel Tubes EN10305-2 +C +LC +SR +A +N Precision Steel Pipe 2

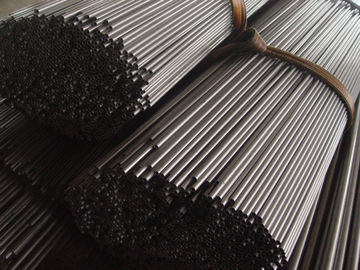

Packing and ready to ship for Welded Precision Steel Tubes EN10305-2

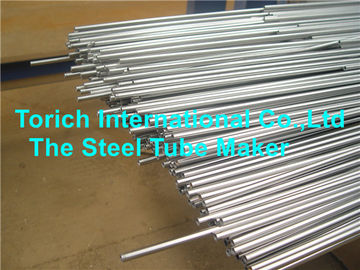

Welded Precision Steel Tubes EN10305-2 +C +LC +SR +A +N Precision Steel Pipe 4
