A333 Gr.6 Large Diameter Thick Wall Low Temperature Alloy Seamless Steel Pipe
TORICH is a professional low temperature steel tubes manufacturer of precision steel tubes
for Low temperature service and other application with required Notch Toughness ,
which is equipped with 20 lines of pipe production. Low temperature tubes is usually
produced by Gr1,Gr2,Gr3,Gr4,Gr6,Gr7 ,Gr8,Gr9,Gr10,Gr11 ,09DG,09MnVDG,16MnDG,
10MnDG etc ,production method can be cold drawning or cold rolled. Low temperature tubes is
usually based on technical standard
GB/T 18984,A333 etc .
TORICH low temperature steel tubes is usually produced based on the following technical standard
and Grade:
Standards:A333,GB/T 18984 or similar technical standard.
Steel Grade:Gr1,Gr2,Gr3,Gr4,Gr6,Gr7 ,Gr8,Gr9,Gr10,Gr11 etc
TORICH A333 Gr.6 tubes can produce the Carbon steel and alloyed steel Sizes Range:
OD: 8-1240×1-200mm
WT:1/8"-48"×SCH5S-SCH160,STD,XS,XXS
Wall Thickness: can be by mutual agreement with customer.
Main Features for Alloy hot-rolled seamless pipes :
1.High accuracy on tolerance
2.Good Mechanical properties
3.Bear Low Temperature
4. Ductility-brittleness transition temperature is lower than service temperature
5. Strength to meet design requirements
6. Structure stability at service temperature
7.Good weldability and formability; Some special applications also require very low permeability, cold shrinkage and so on.
Production Process for A333 Gr.6 steel tubes:
Inspection of RM
Surface Inspt
Size&Tolearance Inspt
Chem.composition inspt
Inspt during production
Surface inspt
Size&Tolearance Inspt
Inspt for mfg technique
Inspt for insh tubes
Surfaceinspt
Size&Tolearance Inspt
Lgth straightness check
Physical a chem.test
NDT test and Hydro test
Test for smooth finish
Impact temperature:
| Steel grade | Min Impact test temperature | |
| ℉ | ℃ | |
| 16MnDG | -- | -45 |
| 10MnDG | -- | -45 |
| 09DG | -- | -45 |
| 09Mn2VDG | -- | -70 |
| 06Ni3MoDG | -- | -100 |
| A333 Grade1 | -50 | -45 |
| A333 Grade3 | -150 | -100 |
| A333 Grade4 | -150 | -100 |
| A333 Grade6 | -50 | -45 |
| A333 Grade7 | -100 | -75 |
| A333 Grade8 | -320 | -195 |
| A333 Grade9 | -100 | -75 |
| A333 Grade10 | -75 | -60 |
| A333 Grade11 | -- | -- |
A333 Gr.6 steel tubes are usually used in the following scope:

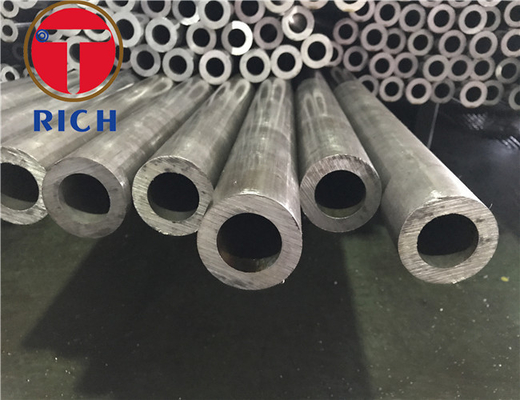

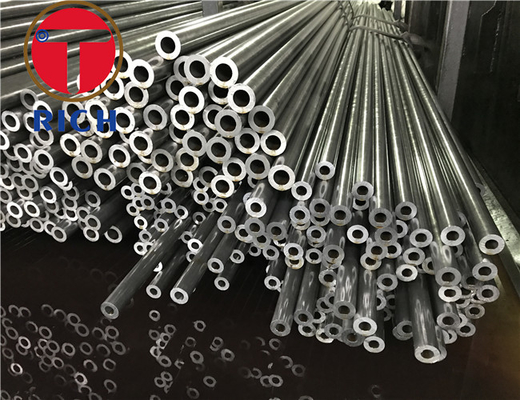

Product show:
