EN10305-1 Precision Cold Drawn Steel Tube Seamless E355 E235 Steel Pipe

Name: EN10305-1 Precision Cold Drawn Steel Tube Seamless E355 E235 Steel Pipe
Brand: TORICH INTERNATIONAL LIMITED
SKU: EN10305-1
Price: 15,000.30 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	EN10305-1
MOQ:	1 ton
Price:	Negotiated
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	250000 tons/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Product Name:

EN10305-1 Precision Cold Drawn Steel Tube Seamless E355 E235 Steel Pipe

WT:

0.5-50mm

OD:

4-420mm

Length:

5.8m-11.8m

Standard:

EN10305-4

Usage:

Hydraulic And Pneumatic Power System

Shape:

Round Shape

Surface Finish:

Oiled

Packaging Details:

Packing in hexagon with woven bags covered

Supply Ability:

250000 tons/year

Highlight:

High Pression Cold Drawn Steel Pipe

E355 Cold Drawn Steel Pipe

BKS Cold Drawn Steel Pipe

Product Description

EN10305-1 Precision Cold Drawn Steel Tube Seamless E355 E235 Steel Pipe

TORICH is a professional supplier and exporter of precision seamless cold drawn steel tube with 20 years.

1.Brief introduction of Precision Cold Drawn Steel Tube:

Standard: EN10305-1

Size: 4mm-260mm

W.T.: 0.5mm-25mm

Shape: Round

Production type: Cold drawn or cold rolled

Length: Single random length/ Double random length or as customer’s actual request max length is 1.8m to fit container length.

Grade: E215, E235, E355

2.Delivery Conditions:

The tubes shall be manufactured from hot finished seamless tubes by cold drawing or other suitable processes.

The tubes shall be supplied in one of the delivery conditions as follows:

Designation	Symbol	Description
Cold drawn/hard	+C	No heat treatment after the final cold drawing process.
Cold drawn/soft	+LC	After the final heat treatment there is a suitable drawing pass.
Cold drawn and stress relieved	+SR	After the final cold drawing process there is a stress relief heat treatment in a controlled atmosphere.
Annealed	+A	After the final cold drawing process the tubes are annealed in a controlled atmosphere.
Normalized	+N	After the final cold drawing operation, the tubes are normalized in a controlled atmosphere.

3.Delivery Condition Symbol in accordance with EN10305 and DIN2391:

Symbol in accordance with EN 10305	Symbol in accordance with DIN2391
+C	BK
+LC	BKW
+SR	BKS
+A	GBK
+N	NBK

4.Mechanical Properties:

Mechanical properties at room temperature
Steel Grade		Minimum values for the delivery condition
Steel Name	Steel Number	+C		+LC		+SR			+A		+N
Steel Name	Steel Number	Rm Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
E215	1.0212	430	8	380	12	380	280	16	280	30	290 to 430	25	30
E235	1.0308	480	6	420	10	420	350	16	315	25	340 to 480	235	25
E355	1.0580	640	4	580	7	580	450	10	450	22	490 to 630	355	22

QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

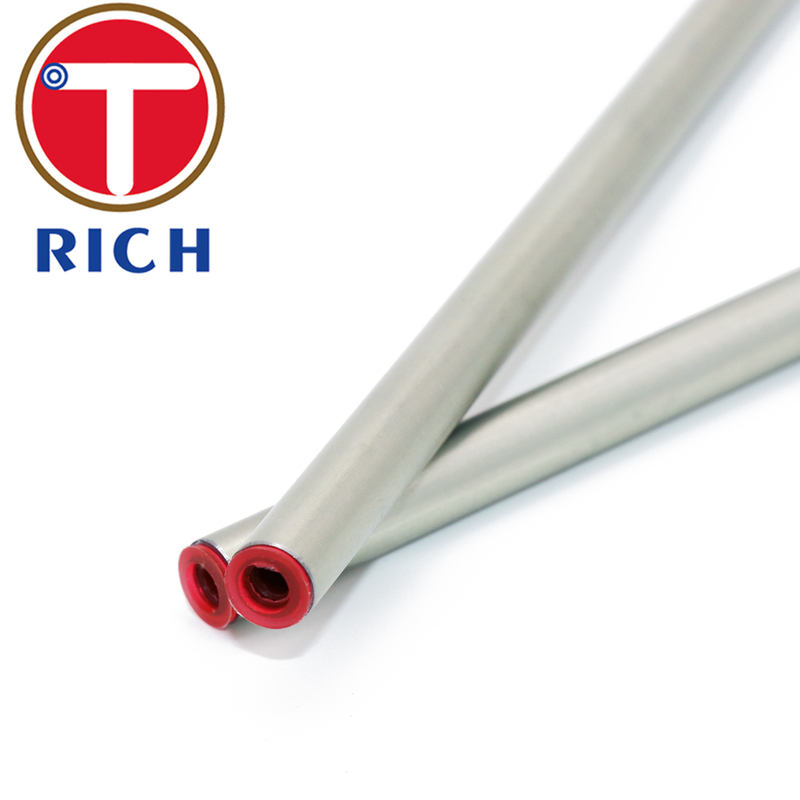

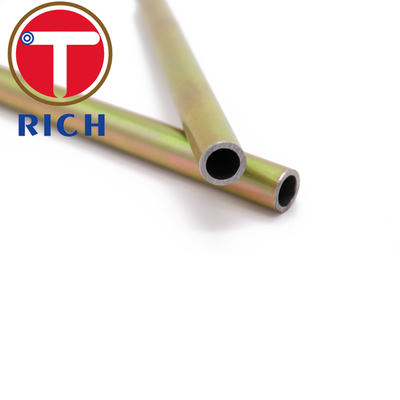

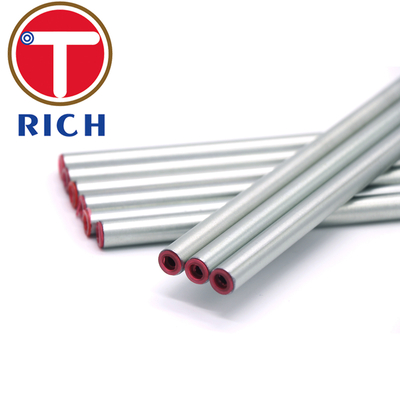

5.Precision Cold Drawn Steel Tube Show:

6.Packing method:

7.A&Q

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
