Seamless Round Structural Steel Tubing EN10216-1 1-30mm Wall Thickness

Name: Seamless Round Structural Steel Tubing EN10216-1 1-30mm Wall Thickness
Brand: TORICH INTERNATIONAL LIMITED
SKU: EN10216-1
Price: 750.00 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	EN10216-1
MOQ:	5Tons
Price:	USD600-900/ton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000Tons per Year

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJIANG, CHINA

Certification:

ISO9001, ISO14001, TS16949

Keyword:

Structural Steel Tubing

Material:

P195TR1 , P195TR2 , P235TR1 , P235TR2

OD:

10.2mm-711mm

WT:

1mm-100mm

Length:

Max12000mm

Technique:

Cold Drawn Seamless

Manufacture:

The Tubes Are Manufactured By A Seamless Process

Applications:

For Manufacturing Pipelines, Vessel. Euqipment. Steel Structure

Packaging Details:

Structural Steel Tubings are packed in wooden boxes or hexagonal bundles in seaworthy packing.

Supply Ability:

2000Tons per Year

Highlight:

structural steel tubing

structural steel square tubing

Product Description

Products Description

TORICH EN10216-1 1-30mm Wall Thickness Structural Steel Pipe Seamelss Round Structural Steel Tubing

Key Word	Seamelss Structural Steel Tubing
Material	P195TR1 , P195TR2 , P235TR1 , P235TR2
Size	OD: 10.2-711mm; WT: 1-100mm; Length: max12000mm
Technique	Cold Drawn Seamless
Application	For Manufacturing Pipelines, Vessel. Euqipment.pipt Fittings And Steel Structure
Manufacturing	The tubes are manufactured by a seamless process
Appearance	The tubes are free from exernal and internal suface defects that can be detect by visual examination
Delivery condition	Hot formed: TR1 As formed or normalized or normalising-formed TR2 Normalized or normalising-formed Hot formed + cold finished: TR1 and TR2 Normalized

Chemical Requirement

Steel Grade	C, max	Si, max	Mn, max	P, max	S, max	Cr, max	Mo, max
P195TR1	0.13	0.35	0.70	0.025	0.020	0.30	0.08
P195TR2	0.13	0.35	0.70	0.025	0.020	0.30	0.08
P235TR1	0.16	0.35	1.20	0.025	0.020	0.30	0.08
P235TR2	0.16	0.35	1.20	0.025	0.020	0.30	0.08
P265TR1	0.20	0.40	1.40	0.025	0.020	0.30	0.08
P265TR2	0.20	0.40	1.40	0.025	0.020	0.30	0.08

Mechanical Property

Steel Grade	Tensile properties Upper yield strength ReH min for Wall Thickness T mm			Tensil Strength Rm	Elongation A min.%
	T≤16	16＜T≤40	40＜T≤60	Tensil Strength Rm	Elongation A min.%
	MPa	MPa	MPa	MPa	I	t
P195TR1	195	185	175	320-440	27	25
P195TR2	195	185	175	320-440	27	25
P235TR1	235	225	215	360-500	25	23
P235TR2	235	225	215	360-500	25	23
P265TR1	265	255	245	410-570	21	19
P265TR2	265	255	245	410-570	21	19

Product Show

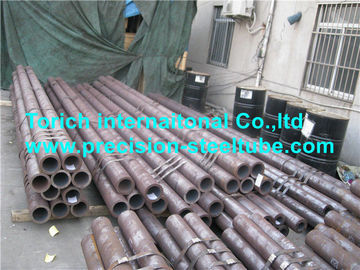

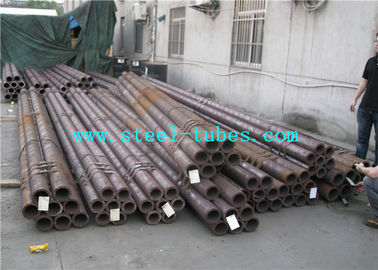

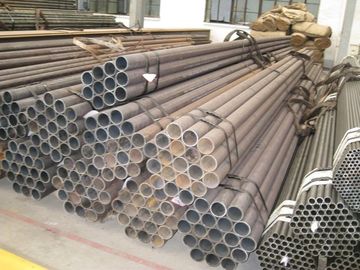

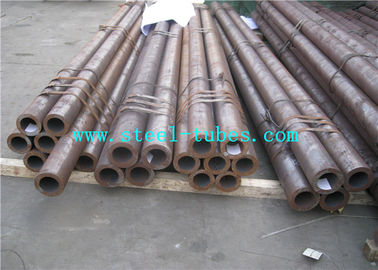

Seamless Round Structural Steel Tubing EN10216-1 1-30mm Wall Thickness 0

QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us
