Round Seamless Coil Stainless Steel Tube Heat Exchanger 304 316 High Performance

Basic Information
Place of Origin: China
Brand Name: Torich
Certification: ISO 9001 ISO14001 TS16949
Model Number: ASTM A213 etc
Minimum Order Quantity: 1 tons
Price: negotiable
Packaging Details: In plywood case, In wooden box.
Delivery Time: 30-45 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60000 Ton per Year
Detail Information
Characteristic: Stainless Steel Tube Material: 304, 316 Etc
Production Method: Seamless Package: In Bundles Or As Per Requests
End Protector: Plain / Beveled Length: 2-12m
Type: Cold Drawn Or Cold Rolled MTC: EN10204.3.1
High Light:

stainless steel round tube

,

stainless tube steel


Product Description

TORICH High performance round seamless heat exchanger 304 316 stainless steel coil tube

Seamless Steel Tubes SA213 U tubes for boilers and heat exchangers applications

heat exchanger stainless steel coil

SA213 long steel tubes, make to U bend tubes for boilers and heat exchangers.
With strong wood structure box packing by containers loading and shipping.

Heater tubes U TUBES with Stainless, Alloy steel grade available, Carbon Steel grade is also available.

xchanger stainless steel coil tube

Size Range:
OD:6-127mm
WT:0.5-12mm



Grade:

T2 [T"(small-caliber tube)

TP304

TP304L

Tp316

TP316L

TP317

TP317L

Tp321

Etc



Usage: for kinds of boilers and Heat exchangers.



Mechanical Properties:

Material Mechanical Properties
Tensile Strength ≥ MPa yield strength ≥ MPa Elongation ≥ %
T12 415 220 30
TP304 515 205 35
TP304L 458 170 35
TP316 515 205 35
TP316L 485 170 35
TP317 515 205 35
TP317L 515 205 35
TP321 515 205 35

Acknowledge:



Gauge-Inch-mm Gauge 12 14 15 16

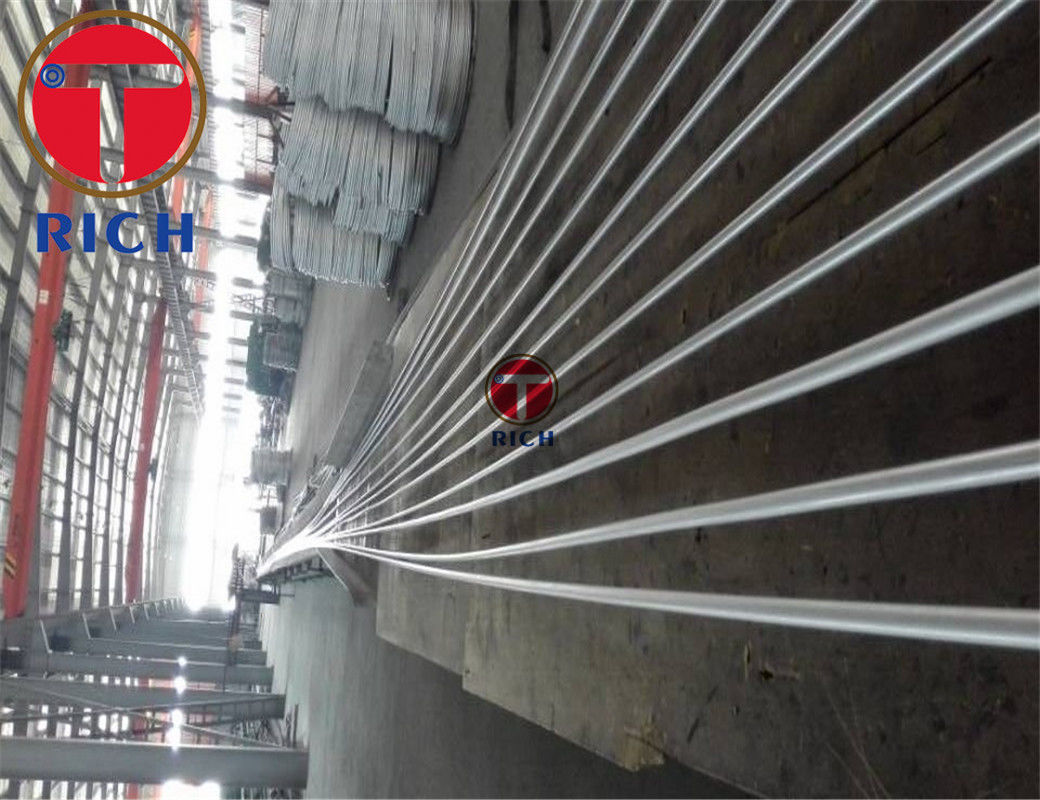

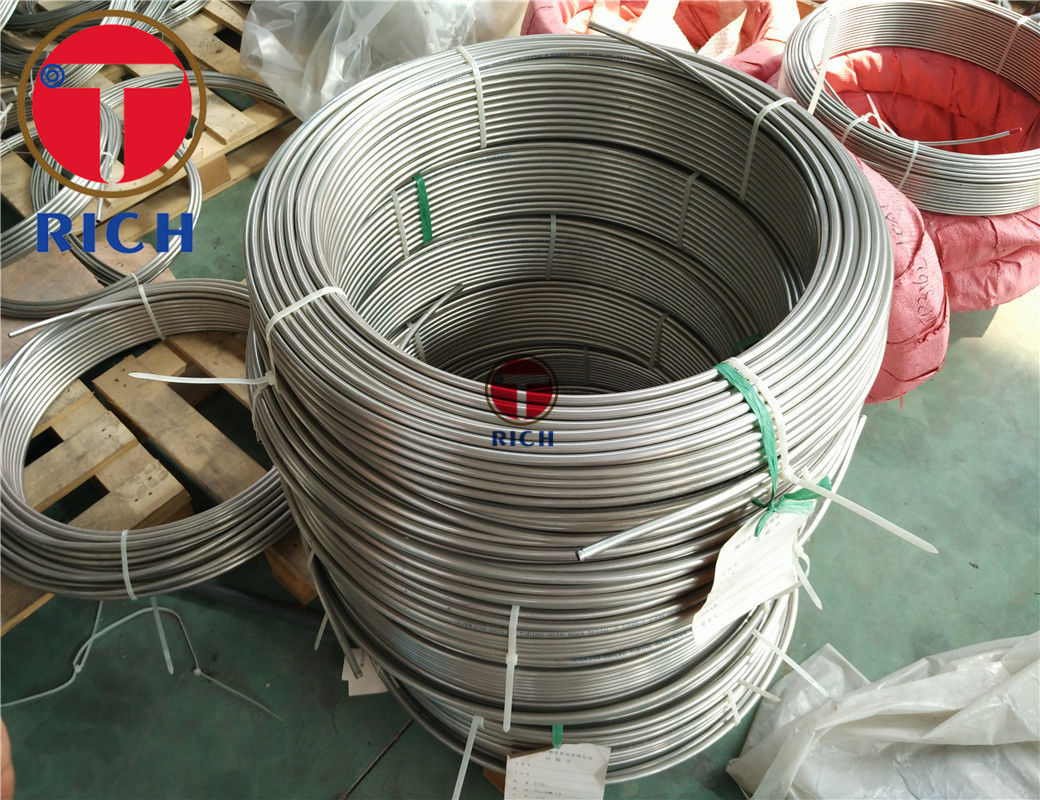

Production Steel Tube:
Round Seamless Coil Stainless Steel Tube Heat Exchanger 304 316 High Performance 0



Round Seamless Coil Stainless Steel Tube Heat Exchanger 304 316 High Performance 1


Eddy Current Test and Ultrasonic Test:
Round Seamless Coil Stainless Steel Tube Heat Exchanger 304 316 High Performance 2

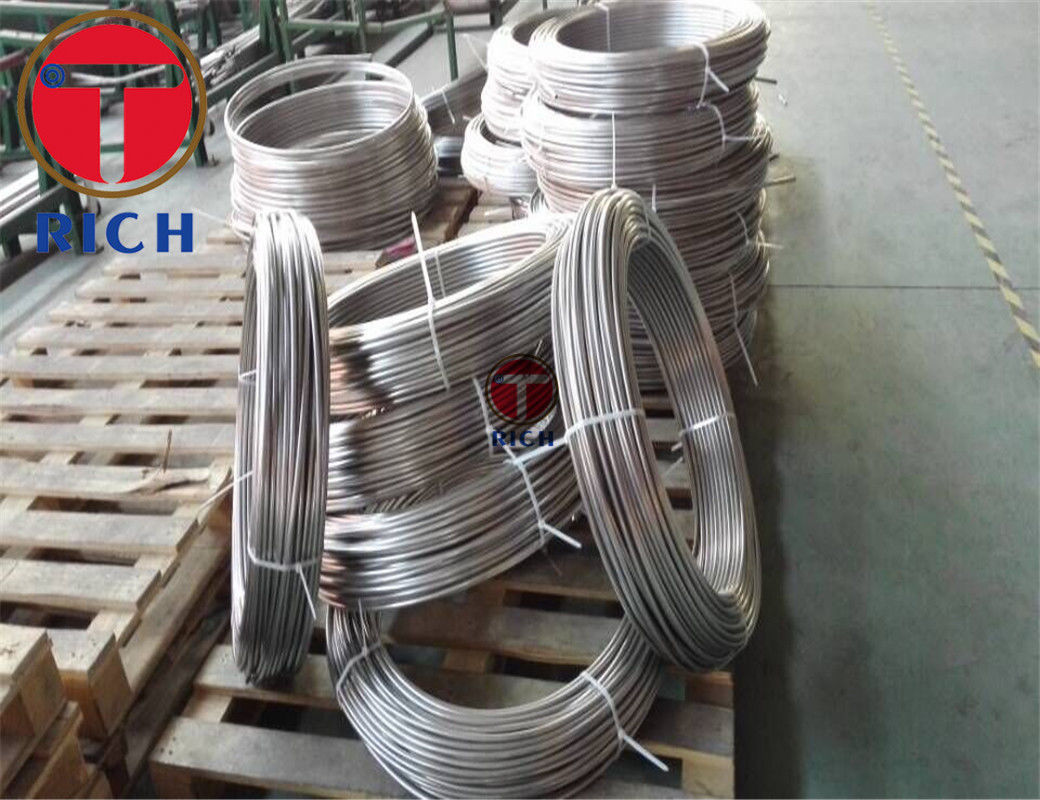

Packing:
Round Seamless Coil Stainless Steel Tube Heat Exchanger 304 316 High Performance 3
