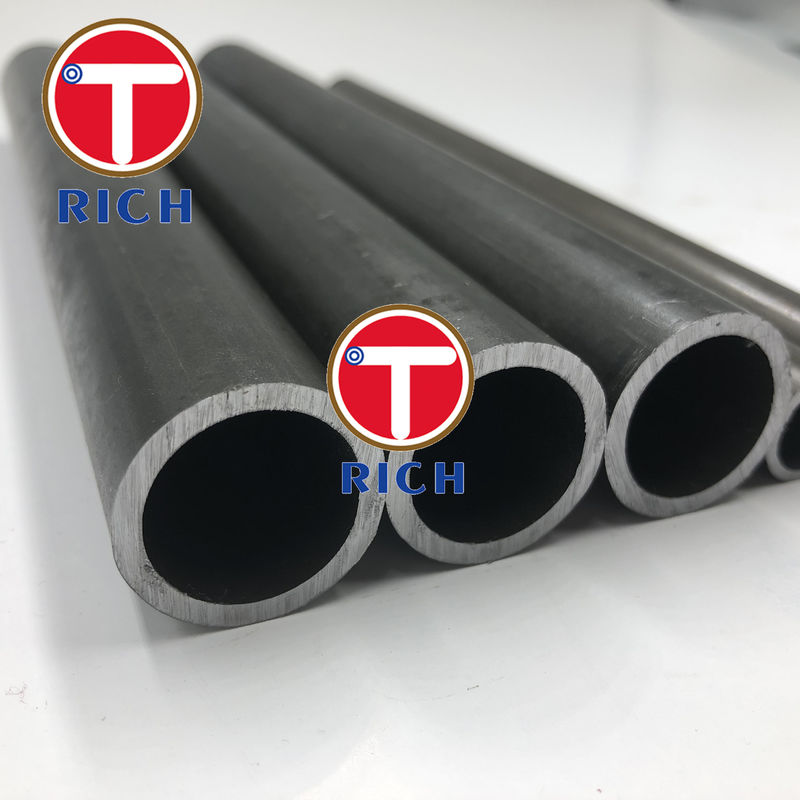

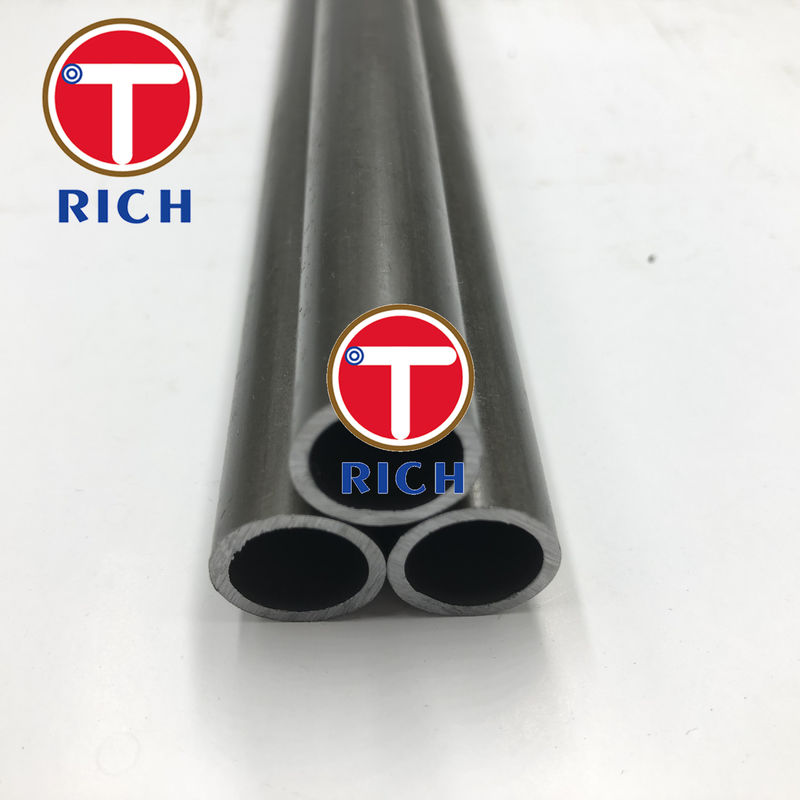

Thick Wall Stainless Steel Tube E355 Steel Tube High Precision Steel Tube
Steel Grade and Chemical Compositions of cold drawn precision steel tube :
| Steel Grade | C | Si | Mn | P | S | Al |
| Steel Name | Steel Number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
Application : Hydraulic tubes.
Material: E235 St35 St45 St52 E355
Standard : DIN 2391 EN10305-1
Surface treatment: Galvanizing, to protect material from rust.
Steel Grade and Chemical Compositions according to En 10305-1 high precision seamless steel pipe:
| Steel Grade | C | Si | Mn | P | S | Al |
| Steel Name | Steel Number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
Steel Grade and Chemical Compositions according to DIN 2391 EN10305 E355 Precision Steel Tube:
| Steel grade | C max | Si max | Mn max | P max | S max |
| St 35 | 0.17 | 0.35 | 0.4 | 0.025 | 0.025 |
| St 45 | 0.21 | 0.35 | 0.4 | 0.025 | 0.025 |
| St 52 | 0.22 | 0.55 | 1.6 | 0.025 | 0.025
|
OD : 4- 20mm
WT :0.5-10 mm
Main size list of precision cold drawn steel tube :
| Outside Diameter | Wall Thickness Imperial | Wall Thickness Metric |
| 6.35mm / 0.250″ | 20swg | 0.90mm |
| 6.35mm / 0.250″ | 18swg | 1.20mm |
| 6.35mm / 0.250″ | 16swg | 1.60mm |
| 6.35mm / 0.250″ | 14swg | 2.03mm |
| 7.94mm / 0.313″ | 20swg | 0.90mm |
| 7.94mm / 0.313″ | 18swg | 1.20mm |
| 7.94mm / 0.313″ | 16swg | 1.60mm |
| 7.94mm / 0.313″ | 14swg | 2.03mm |
| 9.53mm / 0.375″ | 20swg | 0.90mm |
| 9.53mm / 0.375″ | 18swg | 1.20mm |
| 9.53mm / 0.375″ | 16swg | 1.60mm |
| 9.53mm / 0.375″ | 14swg | 2.03mm |
| 9.53mm / 0.375″ | 12swg | 2.64mm |
| 9.53mm / 0.375″ | 11swg | 2.95mm |
| 9.53mm / 0.375″ | 10swg | 3.20mm |
| 11.11mm / 0.437″ | 20swg | 0.90mm |
| 11.11mm / 0.437″ | 18swg | 1.20mm |
| 11.11mm / 0.437″ | 16swg | 1.60mm |
| 11.11mm / 0.437″ | 14swg | 2.03mm |
| 11.11mm / 0.437″ | 12swg | 2.64mm |
| 11.11mm / 0.437″ | 11swg | 2.95mm |
| 11.11mm / 0.437″ | 10swg | 3.20mm |
| 12.70mm / 0.500″ | 20swg | 0.90mm |
| 12.70mm / 0.500″ | 18swg | 1.20mm |
| 12.70mm / 0.500″ | 16swg | 1.60mm
|
Characteristic of precision cold drawn steel tube:
1. Bright annealing treatment on steel tubes, have a clean in side and out size diameter,Besides, what is suitable for bending any angle for your produce your production.
2. Galvanizing on tubes can bear the Salt spray test above 72 hours.
3. Steel tubes produce by cold drawn and cold rolled many times ,With a good tolerance on OD and WT.
4.The inner and outer walls of the steel pipe have no oxide layer.
5.withstand high pressure, no leakage, high precision.
6high brightness.
7.no deformation after cold bending, no cracks in flaring, flattening.
8.anti-rust treatment on the surface, and its mechanical performance is excellent.
