GB/T 3093 High Pressure Precision Steel Tube for Diesel Engine , Length 1.5-6m

Basic Information
Place of Origin: Zhejiang China
Brand Name: TORICH
Certification: ISO 9001 ISO 14001 TS 16949
Model Number: GB/T 3093
Minimum Order Quantity: 5 Ton
Price: USD 400-800/Ton
Packaging Details: Packing in wooden box,hexagonal bundles or other seaworthy ways.
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 Ton/Year
Detail Information
Product Name: High-Pressure Seamless Steel Tubes For Diesel Engine GB/T 3093 Material: 10A 20A Q345A
Surface: With Anti Rust Protection Application: Diesel Engine
Shape: Round OD: 4-1200mm
WT: 0.3-200mm Length: 1.5-6m
High Light:

precision steel pipe

,

precision pipes and tubes


Product Description

High-Pressure Seamless Steel Tubes for Diesel Engine GB/T 3093

Spec:
Material:10A 20A Q345A
Size Range:OD:4-1200mm
                     WT:0.3-200mm
                     General Length:1.5-6m
Tolerance:
According to the following tables or customers’ request.

Characteristic:Technical Requirements

Chemical component:

Name



Grade Chemical component(mass fraction )%
C Si Mn P S Cr Ni Cu
Max
U20103 10A 0.07-0.13 0.17-0.37 0.35-0.65 0.03 0.03 0.15 0.30 0.20
U20203 20A 0.17-0.23 0.17-0.37 0.35-0.65 0.03 0.03 0.25 0.30 0.20
L03451 Q345A 0.20Max 0.55Max 1.00-1.60 0.03 0.30 0.30 0.30 0.20



Mechanical Properties:

Grade Tensile strength /Mpa Yeild strength/Mpa Elongation/%
Max
10A 335-470 205 30
20A 390-540 245 25
Q345A 470-630 345 22





Producing Method:cold drawn

Technical Delivery Conditions:Cold drawn + Heat treatment

Widely used in the field of/Application:Diesel engine

Product Images

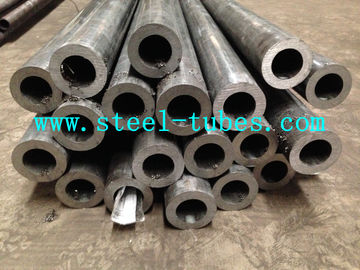

:GB/T 3093 High Pressure Precision Steel Tube for Diesel Engine , Length 1.5-6m 0

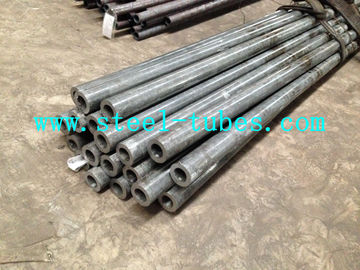

GB/T 3093 High Pressure Precision Steel Tube for Diesel Engine , Length 1.5-6m 1

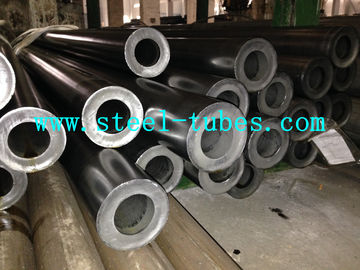

GB/T 3093 High Pressure Precision Steel Tube for Diesel Engine , Length 1.5-6m 2





GB/T 3093 High Pressure Precision Steel Tube for Diesel Engine , Length 1.5-6m 3
