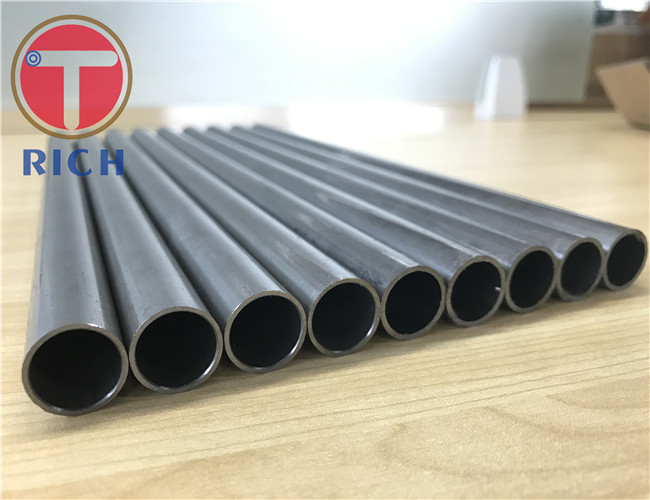

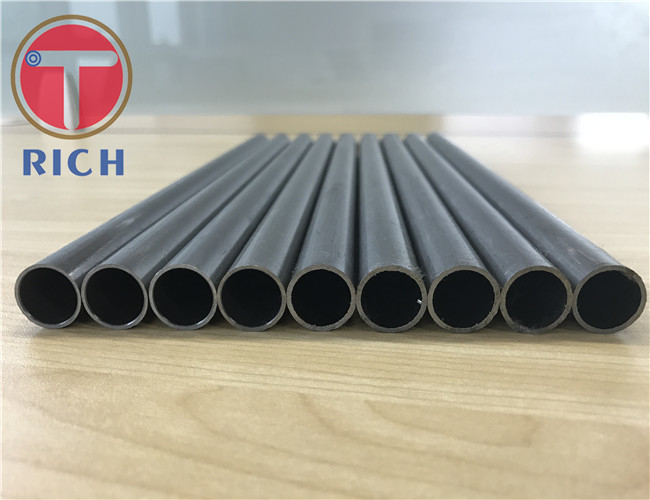

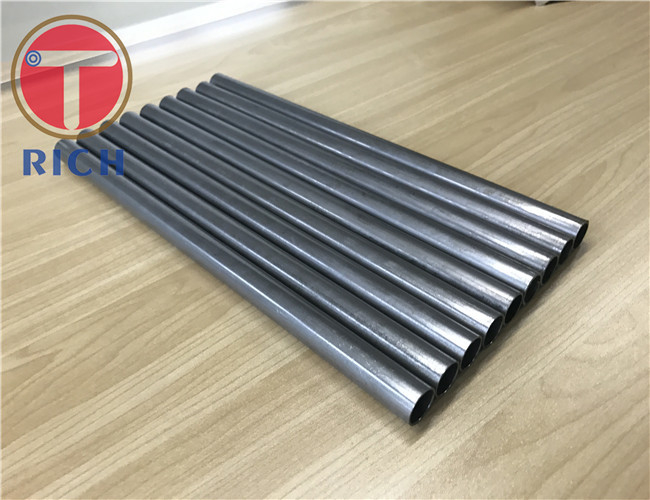

12M Carbon Small Diameter Precision Seamless Steel Tube

small diameter precision seamless steel tube

carbon precision seamless steel tube

precision carbon seamless steel tube

Place of Origin:

China

Brand Name:

Torich

Certification:

ISO9001

Request A Quote

Product Details

Application:

Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OI

Section Shape:

Round

Outer Diameter:

20mm, 13.7mm-1219.2 Mm

Thickness:

2.24 - 45.24 Mm

Length:

12M

Material:

ASTM A106/A53 Gr.B

Highlight:

small diameter precision seamless steel tube

carbon precision seamless steel tube

precision carbon seamless steel tube

Payment & Shipping Terms

Minimum Order Quantity

2Ton

Packaging Details

PACKING WOODEN CASE

Payment Terms

D/A,D/P,Western Union,MoneyGram

A500 Carbon Steel Square Tube High Strength Carbon Steel Structural Tubing For Building Structure

Get Best Price

video

AISI 4140 Seamless Tubing Medium Carbon Alloy Steel Seamless Pipe For Mechanical

Get Best Price

video

TP409 Ferritic Stainless Steel Seamless Tube For General Service

Get Best Price

video

ASME SA179 Seamless Carbon Steel Tubing Cold-Drawn Low-Carbon Steel Tube For Heat-Exchanger

Get Best Price

86-574-88086983

Contact Now

Product Description

carbon small diameter precision seamless steel tube

Product name	Material	Standard	Size(mm)	Application
Low temperature tube	16MnDG 10MnDG 09DG 09Mn2VDG 06Ni3MoDG ASTM A333	GB/T18984- 2003 ASTM A333	OD:8-1240* WT:1-200	Apply to - 45 ℃ ~ 195 ℃ low temperature pressure vessel and low temperature heat exchanger pipe
High-pressure boiler tube	20G ASTMA106B ASTMA210A ST45.8-III	GB5310-1995 ASTM SA106 ASTM SA210 DIN17175-79	OD:8-1240* WT:1-200	Suitable for manufacturing high pressure boiler tube, header, steam pipe, etc
Petroleum cracking tube	10 20	GB9948-2006	OD: 8-630* WT:1-60	Used in oil refinery furnace tube, heat exchanger tube
Low medium pressure boiler tube	10# 20# 16Mn,Q345	GB3087-2008	OD:8-1240* WT:1-200	Suitable for manufacturing various structure of low and medium pressure boiler and locomotive boiler
General structure of the tube	10#,20#,45#,27SiMn ASTM A53A,B 16Mn,Q345	GB/T8162- 2008 GB/T17396- 1998 ASTM A53	OD:8-1240* WT:1-200	Apply to the general structure, engineering support, mechanical processing, etc
Oil casing	J55,K55,N80,L80 C90,C95,P110	API SPEC 5CT ISO11960	OD:60-508* WT:4.24-16.13	Used for extraction of oil or gas in oil Wells casing, used in oil and gas well sidewall

Chemical Composition(%):
Standard	Steel Grade	C	Si	Mn	P	S
BS6323-4	CFS3	≤0.20	≤0.35	≤0.9	≤0.050	≤0.050
	CFS4	≤0.25	≤0.35	≤1.20	≤0.050	≤0.050
	CFS5	≤0.23	≤0.50	≤1.50	≤0.050	≤0.050
	CFS8	0.40-0.55	≤0.35	0.50-0.90	≤0.050	≤0.050
ASTM A519	SAE 1010	0.08-0.13	/	0.30-0.60	≤0.04	≤0.05
	SAE 1020	0.18-0.23	/	0.30-0.60	≤0.04	≤0.05
	SAE1045	0.43-0.50	/	0.60-0.90	≤0.04	≤0.05
JIS G3445	STKM11A	≤0.12	≤0.35	≤0.60	≤0.040	≤0.040
JIS G3445	STKM13A	≤0.25	≤0.35	0.30-0.90	≤0.040	≤0.040

DIN2391 standard steel and heat treatment process delivery conditions:
Delivery Condition	Heat Treatment Process
+C	Cold drawn / hard. After the final cold forming no heat treatment.
+LC	Cold drawn / soft. After the final heat treatment limiting deformation cold drawn, allowing a degree of cold deformation
+SR	Steel heat treatment is applied after the last cold deformation process, the result of state steel after due process, the residual stress deformation and machining makes a certain degree of difficulty increases.
+A	In the final step of the steel pipe after cold deformation, placed in a controlled atmosphere furnace for annealing.
+N	In the final step of the steel pipe after cold deformation, placed in a controlled atmosphere furnace at a temperature above the phase transition point to continue annealing.
