GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation

GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation

Brand Name: TORICH
Model Number: GOST 8732
MOQ: 1Tons
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Tons per Year
Detail Information
Place of Origin:
China,zhejiang
Certification:
ISO9001, ISO14001, TS16949
Thickness:
2.8 - 45 Mm
Standard:
GOST 8732
Grade:
20#
Grade Group:
10#-45#
Application:
Structure Pipe
Section Shape:
Round
Alloy Or Not:
Non-alloy
Technique:
Hot Rolled
Surface Treatment:
Galvanized
Secondary Or Not:
Non-secondary
Special Pipe:
Precision Seamless Pipe
Material:
20#
Usage:
Construction Structure
Shape:
Round Shape
Product Name:
Seamless Steel Tube
Packaging Details:
in bundles or in wooden box
Supply Ability:
5000Tons per Year
Highlight:

Gas Transportation Galvanized Carbon Steel Tube

,

GOST 8732 Seamless Steel Tube

,

Hot Formed Galvanized Seamless Steel Tube

Product Description

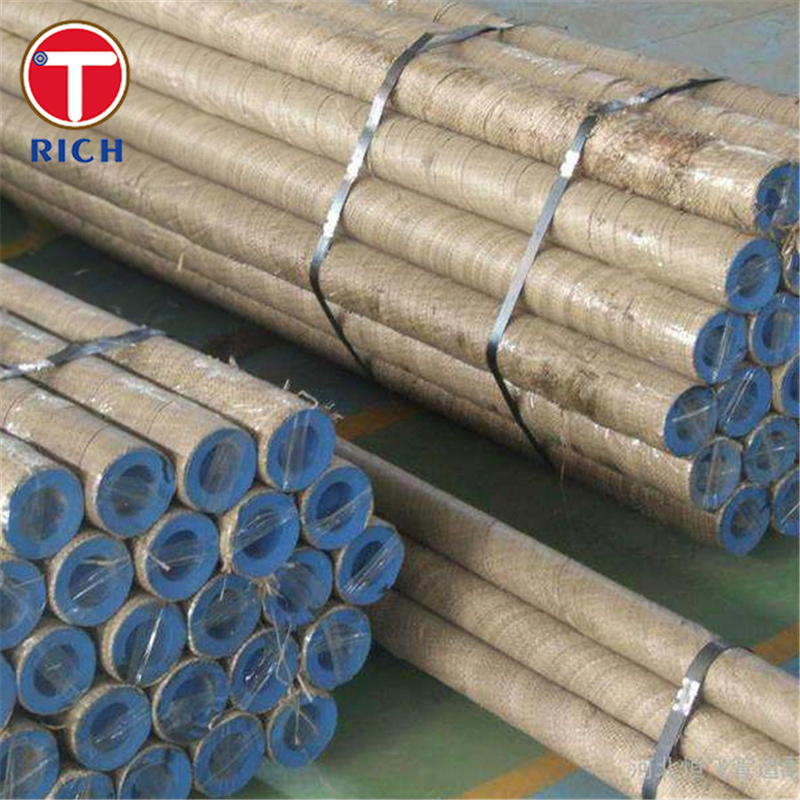

GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 0

GOST 8732 Seamless Steel Tube: Hot-Formed Galvanized Surface Carbon Steel Tube For Gas Transportation

Introduction

The GOST 8732 standard specifies the requirements for seamless hot-formed steel tubes with a galvanized surface, designed primarily for gas transportation applications. These tubes are manufactured using high-quality carbon steel, ensuring durability and reliability in gas transportation systems.

Material and Specification

Property Value
Standard GOST 8732
Material Carbon Steel
Surface Galvanized
Manufacturing Method Hot-Formed
Outer Diameter Range 10mm - 426mm
Wall Thickness Range 1.5mm - 40mm
Length 4m - 12m

Chemical Composition

The chemical composition of the GOST 8732 seamless steel tubes with galvanized surface is as follows:

Element Composition Range
Carbon (C) 0.07% - 0.13%
Silicon (Si) 0.17% - 0.37%
Manganese (Mn) 0.35% - 0.65%
Sulfur (S) 0.035% max
Phosphorus (P) 0.035% max

Mechanical Properties

The mechanical properties of these carbon steel tubes conform to the standards set by GOST 8732:

Property Minimum Value
Yield Strength (Rt) 235 MPa
Tensile Strength (Rm) 410 - 550 MPa
Elongation (A) 24% min
Impact Toughness No less than 27 J/cm²

Steel Grade

The steel grade used for GOST 8732 seamless steel tubes with galvanized surface is 10, 20, 35, 45, 10G2, and 20Ch.

Application

These seamless steel tubes find extensive application in gas transportation systems. Due to their hot-formed galvanized surface and robust carbon steel composition, they are well-suited for conveying gases under various temperatures and pressures. Their durability, corrosion resistance, and high mechanical properties make them a reliable choice for gas transmission pipelines.

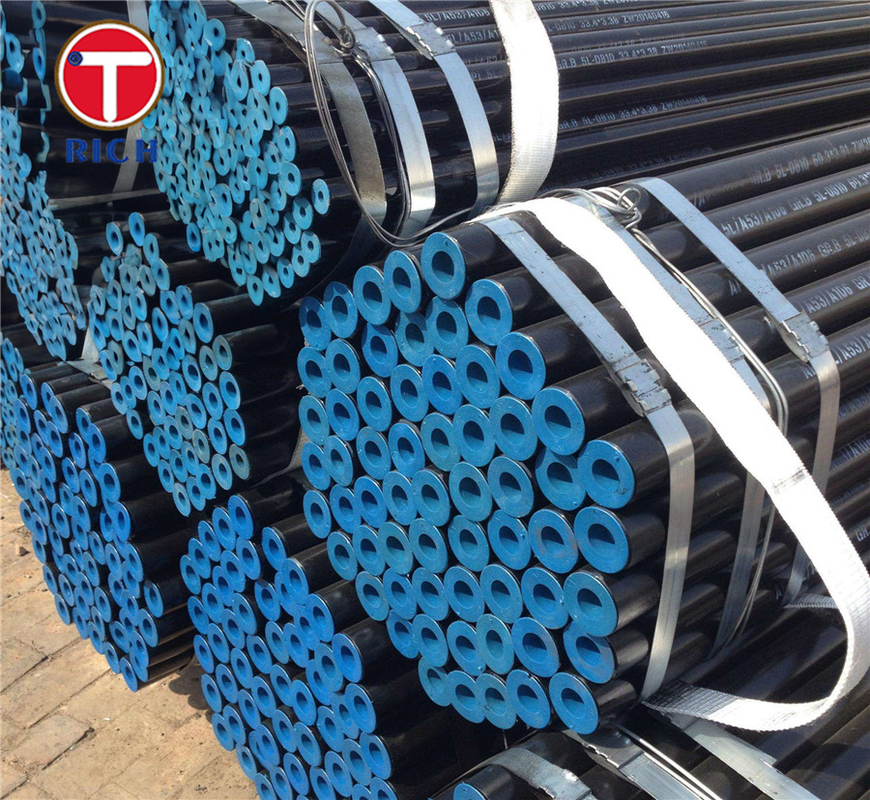

GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 1

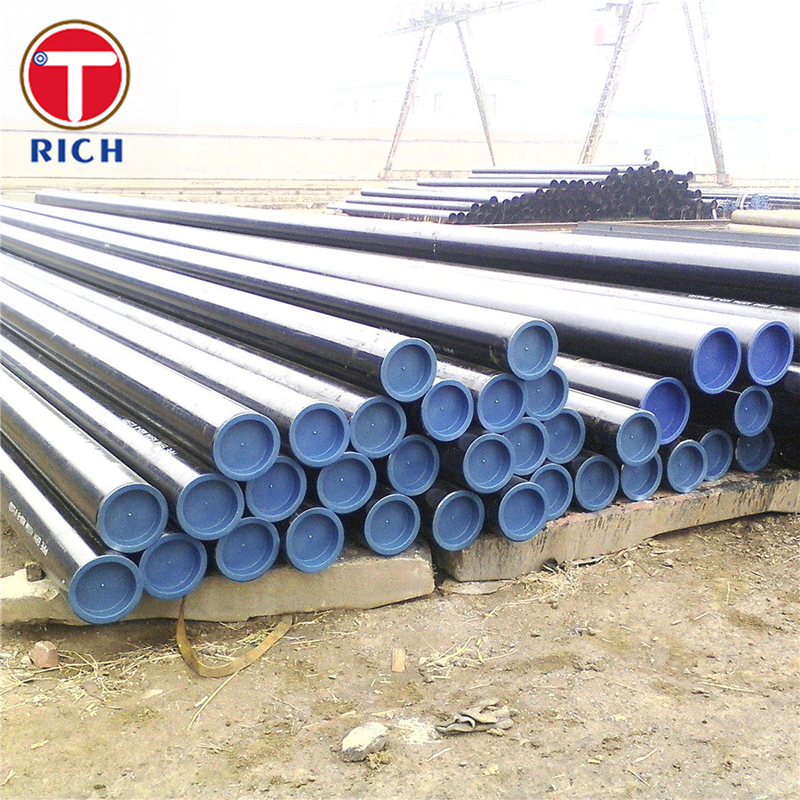

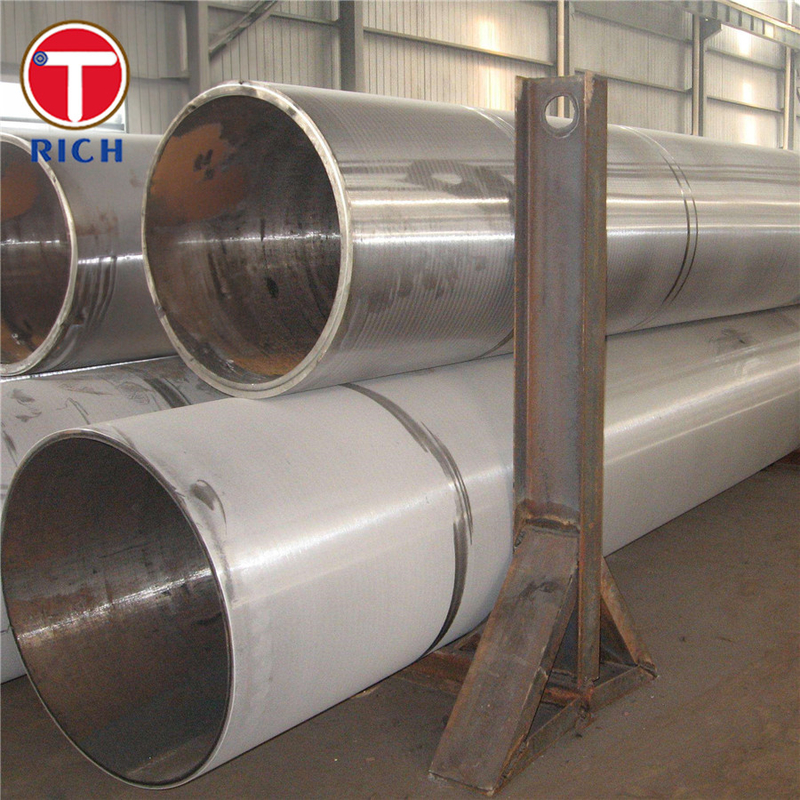

GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 2     GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 3



GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 4     GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 5



GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 6







GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 7

GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 8

Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.

Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.

At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.

GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 9

GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 10

GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 11

GOST 8732 Seamless Steel Tube Hot Formed Galvanized Carbon Steel Tube For Gas Transportation 12



Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.



Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
