Erw Automotive Steel Tubes JIS-G 3445 EN 10305-3 STKM11 STKM12 Supporting Auto Seat Headrest
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5Tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | Mechanical Steel Tubes are packed in wooden boxes in seaworthy packing. | Delivery Time : | 30-45 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5000Tons per Year |
Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001, ISO14001, TS16949 | Model Number: | GOST9567 |
Detail Information |
|||
Keyword: | Mechanical Steel Tubing | Material: | 10, 20, 35, 45, 40X |
---|---|---|---|
WT: | 1mm~15mm | OD: | 6mm~168mm |
Length: | Max12000mm | Usage: | Automobile, Machinery Engineering, Autoparts Etc |
High Light: | low carbon steel pipe,steel mechanical tubing |
Product Description
Standard
|
GOST9567 Precision steel tubes
|
Material
|
10, 20, 35, 45, 40X, 30ХГСА
|
Size
|
WT: 1-15mm; OD: 6-168mm; Length: max 12000mm
|
Manufacturer
|
Pipes shall be made by the Cold Drawn seamless process.
|
Applications
|
For Automobile, Machinery Engineering, Autoparts etc.
|
Test
|
Tension Test, Flaring Test, Flange Test,
Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test etc |
Chemical Composition
Steel Grade
|
C
|
Si
|
Mn
|
Cr
|
Ni
|
Mo
|
S
|
P
|
Cu
|
10
|
0.07-0.14
|
0.17-0.37
|
0.35-0.65
|
0.15
|
0.3
|
-
|
-
|
-
|
-
|
20
|
0.17-0.24
|
0.17-0.37
|
0.35-0.65
|
0.25
|
0.25
|
-
|
0.03
|
0.025
|
0.3
|
35
|
0.32-0.40
|
0.17-0.37
|
0.50-0.80
|
0.25
|
0.3
|
-
|
0.04
|
0.035
|
0.3
|
45
|
0.42-0.45
|
0.17-0.37
|
0.50-0.80
|
0.25
|
-
|
-
|
-
|
-
|
-
|
40X
|
0.36-0.44
|
0.17-0.37
|
0.50-0.80
|
0.80-1.10
|
0.3
|
-
|
0.035
|
0.035
|
0.3
|
30ХГСА
|
0.28-0.34
|
0.90-1.20
|
0.80-1.10
|
0.80-1.10
|
0.3
|
-
|
0.005
|
0.25
|
-
|
Mechanical Properties
Steel Grade
|
Tensile strength, N/mm2 (min)
|
Yield strength, N/mm 2 (min)
|
Elongation, %(min)
|
10
|
343
|
206
|
24
|
20
|
412
|
245
|
21
|
35
|
510
|
294
|
17
|
45
|
589
|
323
|
14
|
40X
|
618
|
-
|
14
|
30ХГСА
|
491
|
-
|
18
|
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

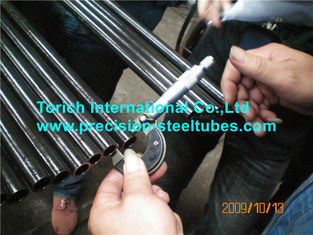

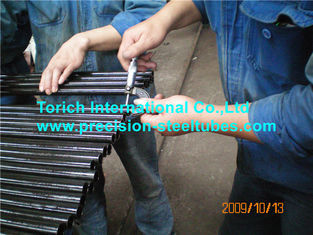

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
