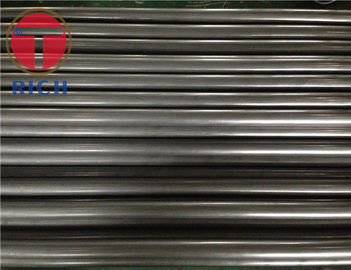

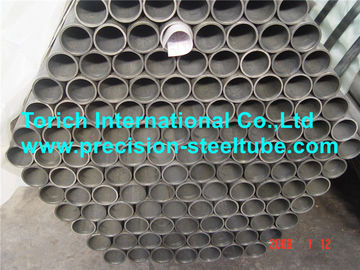

SA178a Annealed ASTM A178 ERW Heat Exchanger Tubes
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5Tons | Price : | USD700-900/ton |
|---|---|---|---|
| Packaging Details : | Heat Exchanger Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing. | Delivery Time : | 30-45 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5000Tons per Year |
| Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001, ISO14001, TS16949 | Model Number: | ASTM A179 |
|
Detail Information |
|||
| Keyword: | Heat Exchanger Tube | Material: | Carbon Steel |
|---|---|---|---|
| OD: | 6 - 168 Mm | WT: | 1 - 15 Mm |
| Length: | Max 32000mm | Usage: | For Boiler And Heat Exchanger |
| High Light: | carbon steel tube,heat exchanger tubes |
||
Product Description
|
Standard
|
ASTM A179, ASTM A192
|
|
Material
|
Carbon Steel
|
|
Size
|
WT: 1-15mm; OD: 6-168mm; Length: max 32000mm
|
|
Applications
|
For Boilers,Superheaters, Heat-Exchangers, High-pressure Boilers, Steam Boilers
Cold Condensers and High-Pressure Services, High-Temperature Services for Boiler Constructions |
|
Manufacture
|
Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.
|
|
Heat treatment
|
Hot finished tubes need not be heat treated.
Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher |
|
Test
|
Tension Test, Flaring Test, Flange Test,
Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test etc |
Chemical Composition
|
C
|
Mn
|
P
|
S
|
Si
|
|
0.06-0.18
|
0.27-0.63
|
≤0.035
|
≤0.035
|
≤0.25
|
Mechanical Properties
|
Tensile Streghth, min
ksi [Mpa]
|
Yield Point, min
ksi [Mpa]
|
Elongation, %
|
|
47[325]
|
26[180]
|
≥35%
|
Hardness
|
Brinell Hardness
|
Rockwell Hardness Number
|
|
WT≥0.200in(5.1mm)
|
WT<0.200in(5.1mm)
|
|
137HRB
|
77HRB
|
Tolerance for OD and WT(SA-450/SA-450M)
|
OD in(mm)
|
+
|
-
|
WT in(mm)
|
+
|
-
|
|
<1''(25.4)
|
0.10
|
0.10
|
≤1.1/2''(38.1)
|
20%
|
0
|
|
1''~1.1''(25.4~38.1)
|
0.15
|
0.15
|
>1.1/2''(38.2)
|
22%
|
0
|
|
>1.1/2''~<2''(38.1~50.8
|
0.20
|
0.20
|
|
|
|
|
2''~<2.1/2''(50.8~63.5)
|
0.25
|
0.25
|
|
|
|
|
2.1/2''~<3''(63.5~76.2)
|
0.30
|
0.30
|
|
|
|
|
3''~<4''(76.2~101.6)
|
0.38
|
0.38
|
|
|
|
|
4''~<7.1/2''(101.6~190.5)
|
0.38
|
0.64
|
|
|
|
|
>7.1/2~9''(190.5~228.6)
|
0.38
|
1.14
|
|
|
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
PACKING:
Each tube in a plastic bag, then put tubes in a seaworthy woven bag ,each unit weight 400kg-500kg/bundle.
With strong wood structure box packing by containers loading and shipping.
Or as customer's requirement.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Height) ------ Max Gross Weight: 27MT/container.
Port Shanghai
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
