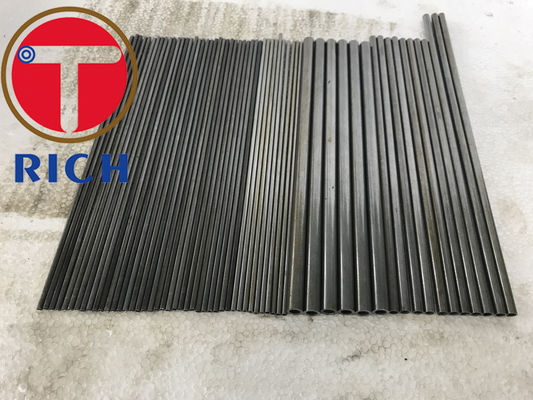

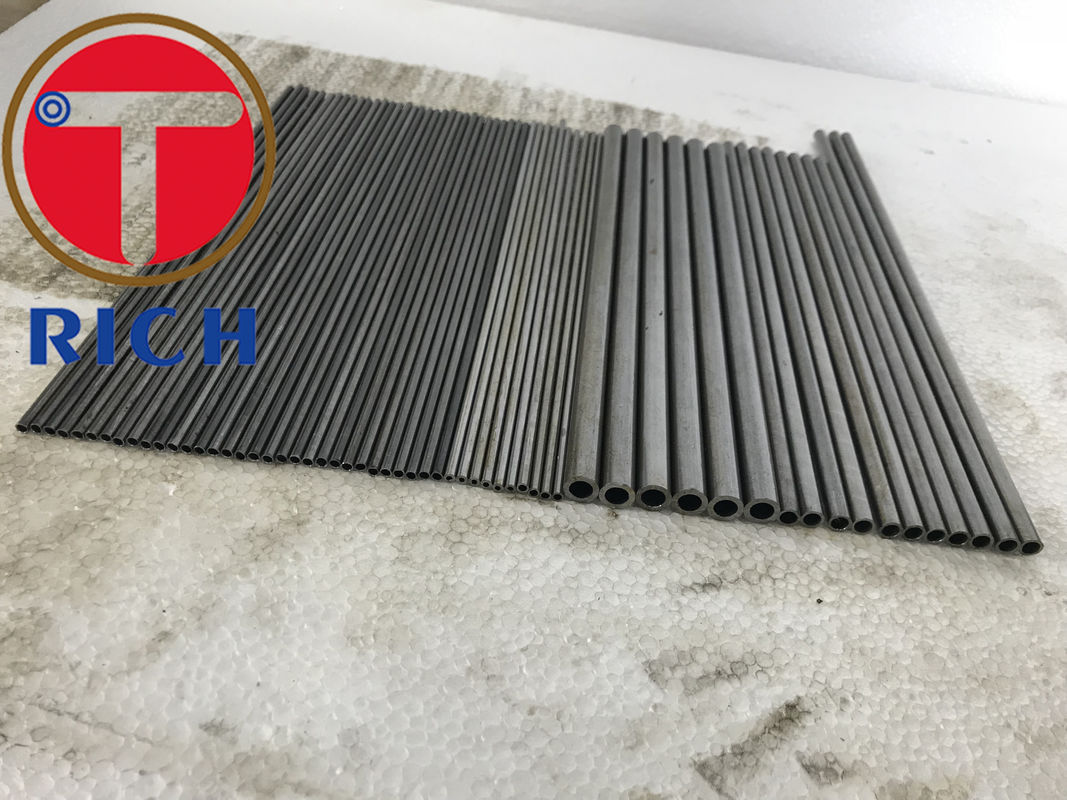

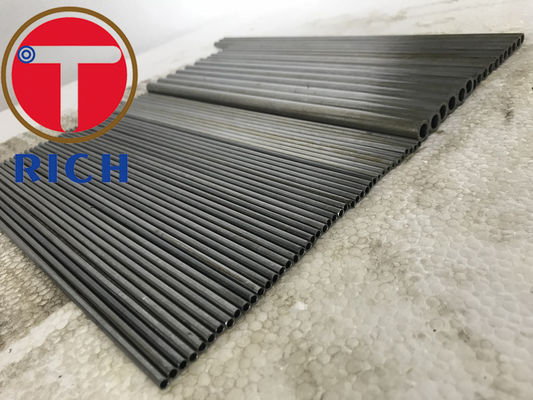

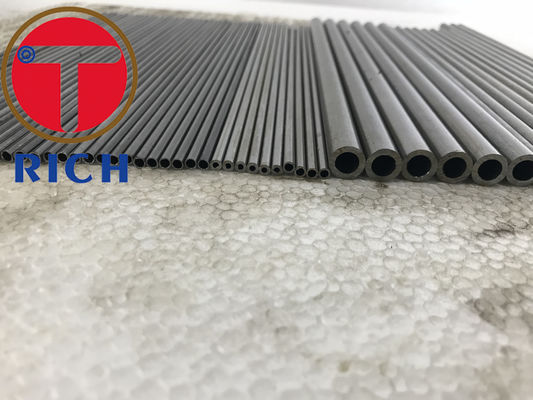

EN10305 E235 E355 Precision Seamless Steel Tube For Hydraulic Pneumatic System

Name: EN10305 E235 E355 Precision Seamless Steel Tube For Hydraulic Pneumatic System
Brand: TORICH INTERNATIONAL LIMITED
SKU: E235 E355
Price: 2,500.00 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	E235 E355
MOQ:	0.5 Ton
Price:	USD 2000-3000 Per Ton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang China

Certification:

ISO 9001

Technical Standard:

EN10305

Material:

Carbon Steel

MOQ:

500Kg

Surface:

Black Or Galvanized

Packaging Details:

In bundles

Supply Ability:

500 Tons Per Month

Highlight:

E355 Precision Seamless Steel Tube

E235 Precision Seamless Steel Tube

EN10305 Precision Seamless Steel Pipe

Product Description

EN10305 E235 E355 Precision Seamless Steel Tube For Hydraulic Pneumatic Systems

Steel Grade		C	Si	Mn	P	S	Al
Name	Number	max	max	max	max	max	max
E215	1.0212	0.1	0.05	0.7	0.025	0.015	0.025
E235	1.0308	0.17	0.35	1.2	0.025	0.015	-
E355	1.0580	0.22	0.55	1.6	0.025	0.015	-

Steel Grade		Yield Strength	Tensile Strength	Elongation
Name	Number	Min Mpa	Min Mpa	%
E215	1.0212	215	290-430	30
E235	1.0308	235	340-480	25
E355	1.0580	355	490-630	22

OD	Allowed Tolerance		Special Tolerance
	GB/T3639	DIN2391	OD	WT
4mm-20mm	±0.1mm	±0.08mm	±0.05mm	±0.05mm
20mm-30mm	±0.1mm	±0.08mm	±0.08mm	±0.08mm
31mm-40mm	±0.15mm	±0.15mm	±0.10mm	±0.08mm
41mm-60mm	±0.2mm	±0.20mm	±0.15mm	±0.15mm
61mm-80mm	±0.3mm	±0.30mm	±0.20mm	±0.20mm
81mm-120mm	±0.45mm	±0.45mm	±0.30mm	±0.30mm
