Name: TORICH GB/T3093 Q345 High Pressure Steel Tubes For Diesel Engine
Brand: TORICH INTERNATIONAL LIMITED
SKU: GB/T 3093
Price: 2,550.00 USD
Availability: InStock

Home > products > Seamless Steel Tube >

TORICH GB/T3093 Q345 High Pressure Steel Tubes For Diesel Engine

seamless steel pipe

seamless carbon steel tube

Place of Origin:

China

Brand Name:

TORICH

Certification:

ISO 9001,ISO 14001,TS 16949

Model Number:

GB/T 3093

Request A Quote

Product Details

Keyword:

Seamless Steel Tubes

Type:

Seamless Steel Tubes

Surface:

Oiled

Shape:

Round

Length:

3-12m

OD:

4-420m

Material:

10# 45# Q345

Terms Of Trade:

CIF FOB CFR

Highlight:

seamless steel pipe

seamless carbon steel tube

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiable

Packaging Details

In plywood case,In wooden box.

Delivery Time

30days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

50000tons/year

EN10305-4 Seamless Cold Drawn Steel Tube Oiled Surface 0.5 - 50mm WT ISO9001 TS16949

Get Best Price

video

Chrome Moly Alloy Seamless Cold Drawn Steel Tube ASTM A335 P11 P12 P91

Get Best Price

video

Cold Drawn EN10305 E235 E355 Precision Applications Seamless Steel Tube

Get Best Price

video

WT 3.5mm DIN 2391 Cold Drawn St37 St45 Precision Seamless Steel Tube

Get Best Price

86-574-88086983

Contact Now

Product Description

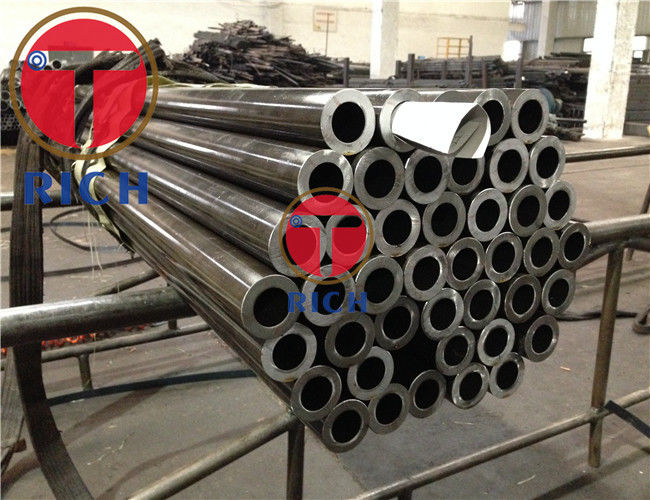

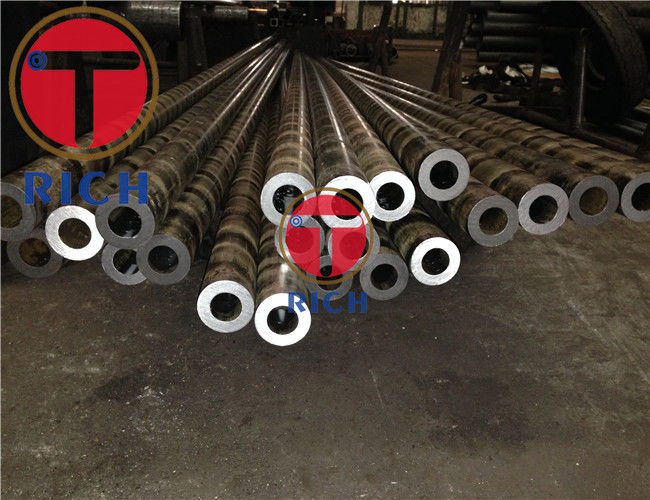

TORICH GB/T3093 Q345 High-Pressure Seamless Steel Tubes For Diesel Engine

size:OD:6-530mm

WT:0.5-38.1mm

Length:1.5-6m

Steel Grade And Chemical component

Unified digital code	Grade	Chemical Component(Quality Fraction)/%
		C	Si	Mn	P	S	Cr	Ni	Cu
		C	Si	Mn	No More Than
U20103	10A	0.07~0.13	0.17~0.37	0.35~0.65	0.030	0.030	0.15	0.30	0.20
U20203	20A	0.17~0.23	0.17~0.37	0.35~0.65	0.030	0.030	0.25	0.30	0.20
L03451	Q345A	≤0.20	≤0.55	1.00~1.60	0.030	0.030	0.30	0.30	0.20

The tolerance of OD and WT unit:mm

Accuracy class	OD	Tolerance	ID	Tolerance
A	all	±0.10	≤3.0	+0.10 -0.20
			>3.0	+0.10 -0.30
B	all	±0.10	<2.0 ≥2.0	±0.05 ±0.10
C			≤3.0 >3.0	±0.025 ±0.050
D	6.0	+0.05 0
	7.0

Steel Grade and Chemical Component

Unified digital code	Grade	Chemical Component(Quality Fraction)/%
		C	Si	Mn	P	S	Cr	Ni	Cu
		C	Si	Mn	No more than
U20103	10A	0.07~0.13	0.17~0.37	0.35~0.65	0.030	0.030	0.15	0.30	0.20
U20203	20A	0.17~0.23	0.17~0.37	0.35~0.65	0.030	0.030	0.25	0.30	0.20
L03451	Q345A	≤0.20	≤0.55	1.00~1.60	0.030	0.030	0.30	0.30	0.20

Mechanical Properties Of Pipes

Grade	Strength of extension MPa	Yield Point MPa	Elongation %
Grade	Strength of extension MPa	No more than
10A	335~470	205	30
20A	390~540	245	25
Q345A	470~630	345	22

Manufacturing Method:Steel should be manufactured in electric or oxygen converter.Steel Pipe should be manufactured by cold drawn seamless method.

Delivery State:After final cold drawn,steel tubes will be deliveried with heat treatment.

Test Item:Tensile test ,Cold head forging, test Hydraulic test, Eddy current test

Main Features:

high accuracy, excellent brightness, no oxidization on the outer and inner walls after heat treatment, high cleanness inside wall. The steel tube is able to stand high pressure. No deformation after cold bending, no crack after flaring and flattening . The complicated geometrical forming and machining can be realized.

Main Application:
to be used in hydraulic system, automobile parts and in the occasion where the high precision, brightness, cleanness and mechanical properties of the tube are required.
