TORICH DIN17175 engineering and agricultural machinery Seamless Steel Honed Tube

TORICH DIN17175 engineering and agricultural machinery Seamless Steel Honed Tube

seamless steel pipe

seamless carbon steel tube

Place of Origin:

ZHEJIANG, CHINA

Brand Name:

TORICH

Certification:

ISO9001, ISO14001, TS16949

Model Number:

DIN 17175

Contact Us
Request A Quote
Product Details
Keyword:
Seamless Steel Honed Tube
Standard:
DIN 17175, DIN2391
Material:
20#, 45#, 16Mn, Q345
OD:
5 - 120 Mm
WT:
0.5 - 50 Mm
Length:
3m - 9m
Usage:
Hydraulic Pipe
Delivery Condition:
+ Cc + LCc + SR + Ad + N
Surface:
Chrome Plating
Production:
ID Honed
Highlight:

seamless steel pipe

,

seamless carbon steel tube

Payment & Shipping Terms
Minimum Order Quantity
5Tons
Price
negotiable
Packaging Details
Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing.
Delivery Time
30-45 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2000Tons per Year
Product Description
Products Description

TORICH DIN17175 engineering and agricultural machinery Seamless Steel Honed Tube
Standard
DIN17175, DIN2391
Material
20#, 45#, Q345
Size
OD: 5-120mm WT: 0.5-50 Length: 3-9m
Delivery Condition
+ Cc + LCc + SR + Ad + N
Test
Tensile Test, Hydraulic Test, Eddy Current Test etc
Application
Hydraulic Pipe

Mechanical Requirements
Delivery Condition
Cold Finished (Hard) (BK)
Cold Drawn and Stress-Relieved (BK+S)
Hardness HB
Parameters
T.S. Rm N/mm2
Elongation A5%
T.S. Rm N/mm2
Y.S. ReH N/mm2
Elongation A5%
20# (A106)
≥550
≥8
≥520
≥470
≥12
175
45# (CK45)
≥650
≥5
≥600
≥520
≥12
207
16Mn (ST52, E355)
≥640
≥5
≥600
≥520
≥15
190
25Mn
≥640
≥5
≥600
≥510
≥15
195
27SiMn
≥840
≥5
≥800
≥720
≥10
230

The company also committed to the production of the high quality grinding tube.

Core Technology: the automatic chroming line
The features of the automatic chroming line
1The Chroming process developed by German experts, learned from the auto industry experience, the process is advanced
2The chroming process is controlled by the computer, the stability is good
3All of the chemicals are imported, good quality and stability



Production Show

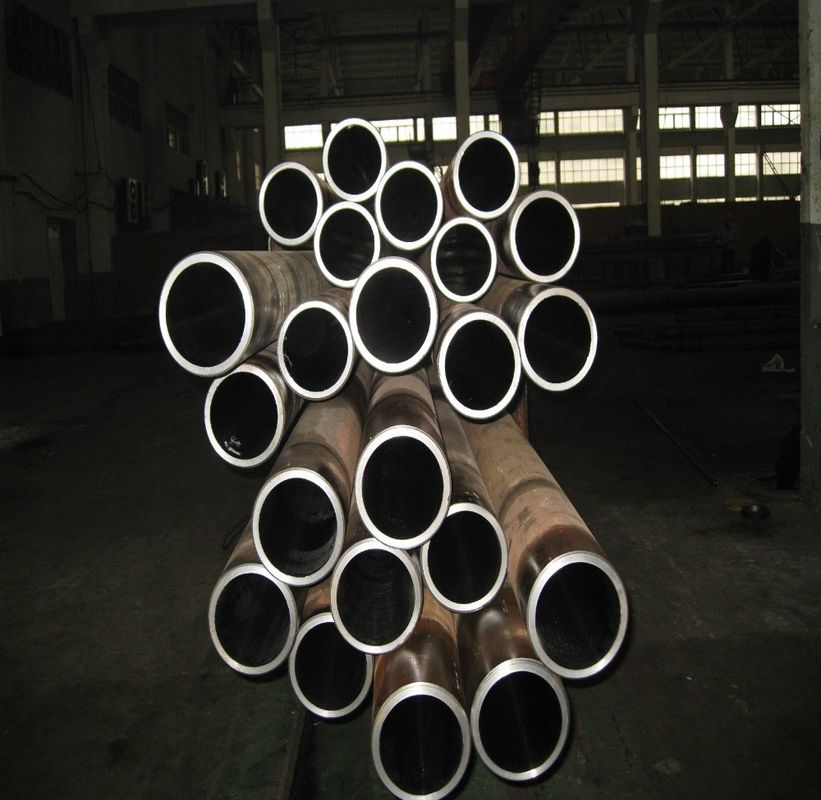

TORICH DIN17175 engineering and agricultural machinery Seamless Steel Honed Tube 0TORICH DIN17175 engineering and agricultural machinery Seamless Steel Honed Tube 1



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us

TORICH DIN17175 engineering and agricultural machinery Seamless Steel Honed Tube
