Name: 0.5mm ASTM A213 T5 Alloy Steel Tube For Boilers
Brand: TORICH INTERNATIONAL LIMITED
SKU: ASTM A213
Price: 25,002.00 USD
Availability: InStock

Home > products > Alloy Steel Pipe >

0.5mm ASTM A213 T5 Alloy Steel Tube For Boilers

ASTM A213 alloy steel tube

T5 alloy steel tube

0.5mm alloy steel tube

Place of Origin:

zhejiang, China

Brand Name:

Torich

Model Number:

ASTM A213

Request A Quote

Product Details

Product Name:

ASTM A213 T5 Alloy Steel Tube For Boilers

Tolerance:

±10%

Section Shape:

Round

Alloy Or Not:

Is Alloy

Category:

Welded Steel Pipe

Brand:

Torich

Certificate:

ISO9001,ISO14001,TS16949

Place Of Origin:

China

Application:

Boiler Pipe

Secondary Or Not:

Non-Secondary

Highlight:

ASTM A213 alloy steel tube

T5 alloy steel tube

0.5mm alloy steel tube

Payment & Shipping Terms

Packaging Details

In hexagonal bundles or wooden box

Delivery Time

30-45days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Min Mpa Extruded Titanium Alloy Steel Pipe , Hot Rolled Steel TubingTA1 240

Get Best Price

video

Seamless Alloy Steel Tubing , Hot Rolled Steel Pipe 4140 / 4130 / 4140 / 42CrMo

Get Best Price

video

SCH10 ASTM B407 Nickel Iron Chromium Alloy Steel Pipe

Get Best Price

video

UNS N08825 ASTM B163 Standard Nickel Alloy Steel Pipe

Get Best Price

86-574-88086983

Contact Now

Product Description

ASTM A213 grade T5 Alloy Steel Tube for Heat exchangers

Products Description: Alloy steel tube

Application: For boiler pipes and heat exchangers

Steel Grade/Steel Material: T5

Size Range:

OD	5-420mm
WT	0.5-50mm
Length	According to customer requirement

Characteristic:

Good concentricity

Good OD and ID tolerance

High Precision

Stable quality

Smooth Roughness

TORICH QUALITY ASSURANCE

Chemical Composition:

Grade	UNS	C, %	Mn, %	P, %	S, %	Si, %	Cr, %	Mo, %
T5	K41545	0.15 max	0.30-0.60	0.025 max	0.025 max	0.50 max	4.00-6.00	0.45-0.65

Mechanical Proporties:

Tensile Strength , MPa	Yield Strength, MPa	Elongation, %	Hardness, HB
415 min	205 min	30 min	163 max

Outside Diameter and Tolerance:

Outside Diameter	OD Tolerance	WT Tolerance	Ovality Tolerance	Cut Length Tolerance
OD≤ 12, 7 mm	± 0, 13 mm	± 15 %	–	+ 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm	± 0, 13 mm	± 10 %	max, 1, 65 mm	+ 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm	± 0, 25 mm	± 10 %	max, 2, 41 mm	+ 4, 76 mm, – 0 mm

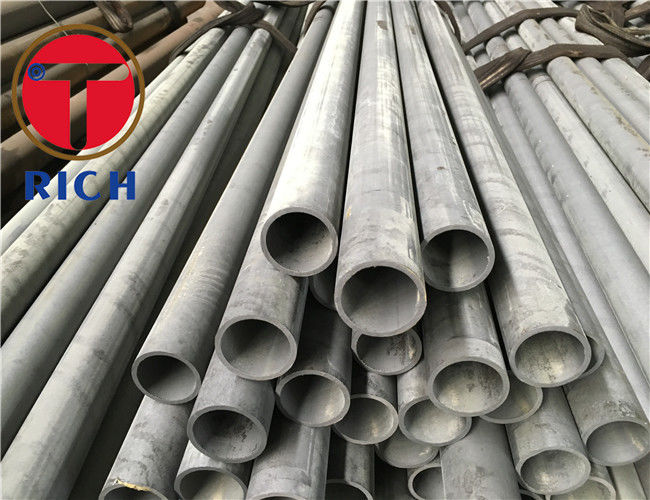

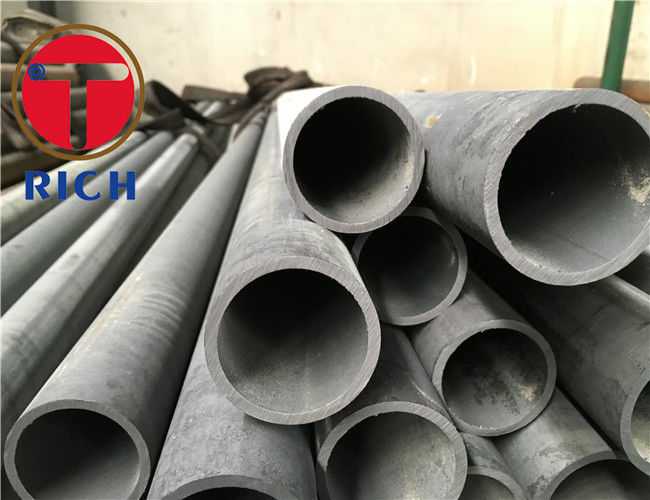

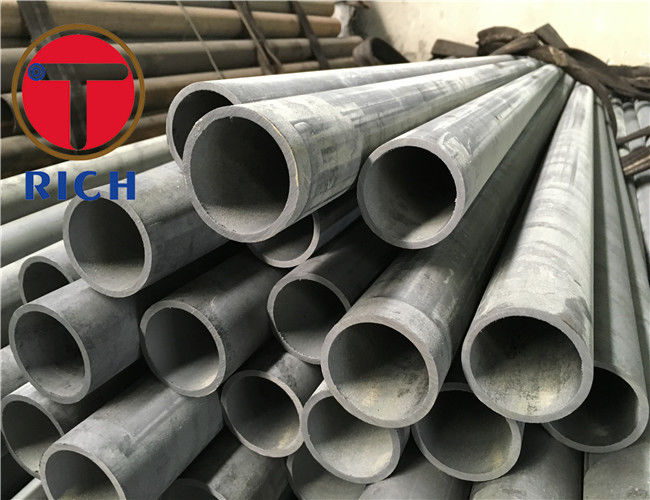

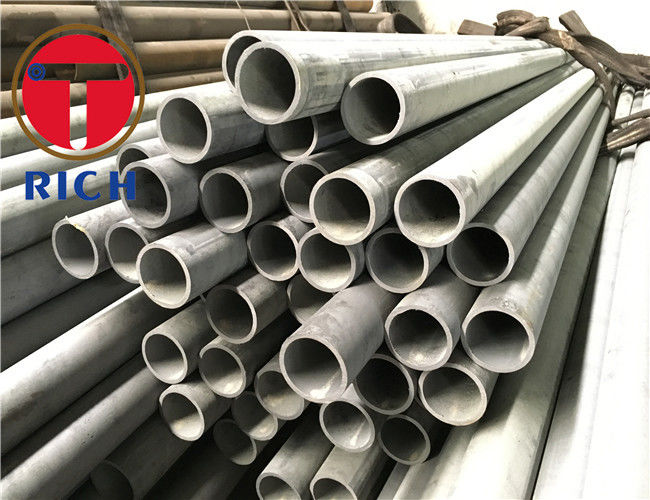

Product Pictures

0.5mm ASTM A213 T5 Alloy Steel Tube For Boilers 0

0.5mm ASTM A213 T5 Alloy Steel Tube For Boilers 1

Company Introduction

0.5mm ASTM A213 T5 Alloy Steel Tube For Boilers 2

QUALITY CONTROL

1. Incoming Raw Material Inspection

2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects
