Mechanical Cold Drawn Welded DOM Steel Tube ASTM A513 Type 5 Carbon Steel

China Mechanical Cold Drawn Welded DOM Steel Tube ASTM A513 Type 5 Carbon Steel supplier
Mechanical Cold Drawn Welded DOM Steel Tube ASTM A513 Type 5 Carbon Steel supplier Mechanical Cold Drawn Welded DOM Steel Tube ASTM A513 Type 5 Carbon Steel supplier Mechanical Cold Drawn Welded DOM Steel Tube ASTM A513 Type 5 Carbon Steel supplier Mechanical Cold Drawn Welded DOM Steel Tube ASTM A513 Type 5 Carbon Steel supplier

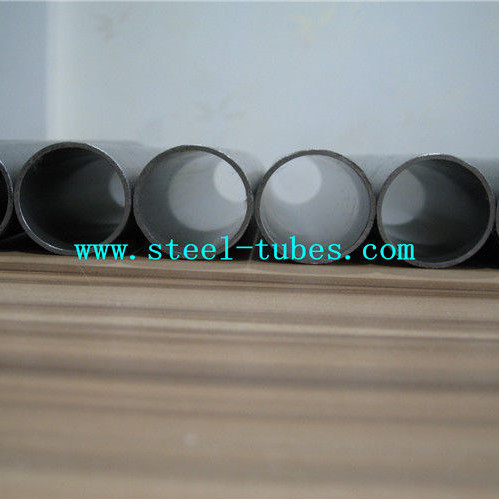

Large Image :  Mechanical Cold Drawn Welded DOM Steel Tube ASTM A513 Type 5 Carbon Steel

Product Details:

Place of Origin: ZHEJIANG, CHINA
Brand Name: TORICH
Certification: ISO9001, ISO14001, TS16949
Model Number: ASTM A513

Payment & Shipping Terms:

Minimum Order Quantity: 5Tons
Price: USD600-1200/ton
Packaging Details: DOM Steel Tubes are packed in wooden boxes in seaworthy packing.
Delivery Time: 30-45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Tons per Year
Contact Now
Detailed Product Description
Keyword: DOM Steel Tube Material: 1008 1010 1018 4130 4140 Etc
OD: 6mm-350mm WT: 1mm-12.5mm
Length: Max 12000mm Usage: For Machinery, Automotive Parts Industry
Production Method: ERW And Cold Drawn Delivery Condition: Sink-drawn, Normalizing,mandrel-drawn

Products Description

TORICH Mechanical Cold Drawn Welded Steel Tube ASTM A513 Type 5 Carbon Steel DOM Tube
Standard
ASTM A513
Material
1008 1010 1018 1020 1026 1035 4130 4140
Size
WT: 1-12.5mm; OD: 6-350mm; Length: max 12000mm
Applications
For Machinery, Mechanical Engineer, Automotive Parts
Production Method
Electric-Resistance-Welded And Cold Drawn
Delivery Condition
Sink-drawn, Normalizing,mandrel-drawn
Test
Tension Test, Flaring Test, Flange Test,
Reverse Test, Hardness Test,
Hydrostatic or Nondestructive Electric Test etc
Advantage
Cutting For Customer
Good Packing with Pallet
Better Concentricity



Chemical Composition

Steel Grade
C
max
Mn

P
max
S
max
Si
max
Cr
min
Mo
1008
0.10
0.5
0.035
0.035



1010
0.08-0.13
0.30-0.60
0.035
0.035



1018
0.14-0.20
0.30-0.60
0.035
0.035



1020
0.17-0.23
0.30-0.60
0.035
0.035



1026
0.22-0.28
0.60-0.90
0.035
0.035



1035
0.31-0.38
0.60-0.90
0.035
0.035



4130
0.28-0.33
0.40-0.60
0.035
0.035
0.15-0.35
0.80-1.10
0.08-0.25
4140
0.38-0.43
0.75-1.00
0.035
0.035
0.15-0.35
0.80-1.10
0.15-0.25



Mechanical Properties

Steel Grade
Yield Strength ksi Mpa
Ulitmate Strength ksi Mpa
Elongation %
RB min
RB max
1008
30 207
42 290
15
50

1010
32 221
45 310
15
55

1020
38 262
52 359
12
62

1026
45 310
62 427
12
68

1035
50 345
66 455
10
75

4130
55 379
72 496
10
80

4140
70 485
90 621
10
85


Product Use
Mechanical Cold Drawn Welded DOM Steel Tube ASTM A513 Type 5 Carbon SteelMechanical Cold Drawn Welded DOM Steel Tube ASTM A513 Type 5 Carbon Steel



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



PACKING:
Each tube in a plastic bag, then put tubes in a seaworthy woven bag ,each unit weight 400kg-500kg/bundle.
With strong wood structure box packing by containers loading and shipping.
Or as customer's requirement.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Height) ------ Max Gross Weight: 27MT/container.
Port Shanghai



FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
