Product Details:
Payment & Shipping Terms:
|
| Material: | HC420 HC340 | Type: | Electric-Resistance-Welded Steel Pipe |
|---|---|---|---|
| Outer Diameter: | 5 - 420 Mm | Production Technology: | Cold Draw/Cold Rolled/Hot Rolled |
| Surface Treatment: | Black Varnish Painted,oil Painted,Galvanized | Alloy Or Not: | Not Alloy |
Standard:
ASTM A135 Standard Specification for Electric-Resistance-Welded Steel Pipe

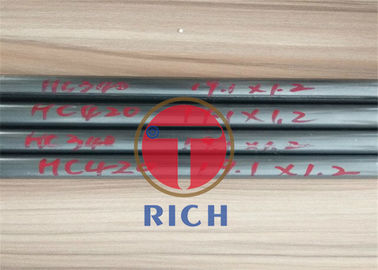

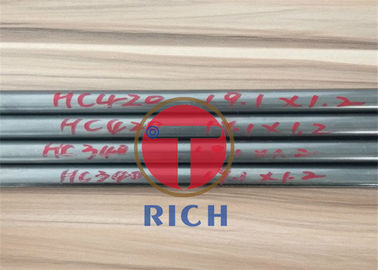

Material:HC420 HC340
| Table TUBING WALL THICKNESS TOLERANCE | |||||||
| Nominal Wall Thickness |
Nominal OD Through 22mm ±mm |
Nominal OD 22-48mm ±mm |
Nominal OD 48-100mm ±mm |
||||
| 0.89 | 0.05/0.05 | 0.05/0.05 | 0.05/0.05 | ||||
| 1.00 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.25 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.50 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.65 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.00 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.11 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.410 | 0.05/0.05 | 0.05/0.08 | 0.08/0.08 | ||||
| 2.500 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 2.770 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.000 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.050 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.40 | - | 0.05/0.10 | 0.08/0.08 | ||||
| 3.75 | - | 0.05/0.10 | 0.08/0.08 | ||||
| 4.00 | - | 0.08/0.10 | 0.08/0.10 | ||||
| 4.19 | - | 0.08/0.10 | 0.08/0.10 | ||||
| 4.57 | - | 0.10/0.10 | 0.08/0.13 | ||||
| 5.00 | - | 0.10/0.13 | 0.10/0.13 | ||||
| Table 2- CHEMICAL REQUIREMENTS | |||||||
| Element | % | ||||||
| Carbon | 0.06-0.18 | ||||||
| Manganese | 0.30 to 0.60 | ||||||
| Phosphprus | 0.040 max | ||||||
| Sulfur | 0.050 max | ||||||
| Table 3- MECHANICAL PROPERTIES | |||||||
| Properties | Value | ||||||
| Yield Strength,min | 170 Mpa | ||||||
| Ultimate Strength,min | 310 Mpa | ||||||
| Elongation in 50mm, min | 35% | ||||||
| Hardness ( Rockwell B),max | 65.00 | ||||||
Description:
MechaniCal tubing made from hot or cold-rolled steel.
Covers electric-resistance-welded low carbon steel tubing for use as mechanical tubing
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
