Name: TORICH Grade 304 Od6mm Large Diameter Stainless Steel Pipe
Brand: TORICH INTERNATIONAL LIMITED
SKU: 304 316
Price: 2,999.10 USD
Availability: InStock

Home > products > Stainless Steel Tube >

TORICH Grade 304 Od6mm Large Diameter Stainless Steel Pipe

large diameter ss304 pipe

Od6mm Large Diameter Stainless Steel Pipe

TORICH Large Diameter Stainless Steel Pipe

Place of Origin:

ZHEJIANG, CHINA

Brand Name:

TORICH

Certification:

ISO9001, ISO14001, TS16949

Model Number:

304 316

Request A Quote

Product Details

Keyword:

Stainless Steel Tube Industrial Pipe

Material:

304, 304L, 316, 316L, 410 Etc Stainless Steel

OD:

6-914mm

WT:

0.5-60mm

Length:

Customers' Requirements

Usage:

Industrial Use

Delivery Condition:

Annealed And Pickled

Type:

Welded

Highlight:

large diameter ss304 pipe

Od6mm Large Diameter Stainless Steel Pipe

TORICH Large Diameter Stainless Steel Pipe

Payment & Shipping Terms

Minimum Order Quantity

10 Tons

Packaging Details

Tubes are packed in bundles or wooden boxes in seaworthy packing.

Delivery Time

20-30 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

5000Tons per Year

304 Stainless Steel PVC Coated Coiled Tubing For Insulation

Get Best Price

304 PVC Coated BA Stainless Steel Coiled Tubing For Water Supply

Get Best Price

Schedule 40 SCH 40S Stainless Steel Seamless Pipe For General

Get Best Price

ASTM A270 Stainless Sanitary Tubing Welded Austenitic Stainless Steel Tube For Healthcare

Get Best Price

86-574-88086983

Contact Now

Product Description

TORICH Large Diameter Grade 304 Stainless Steel Tube Industrial Pipe

Material Available

Material	Grade
Austenitic Stainless Steel	310S, 309S, 316L, 321, 304, 304L
Duplex	S32750, S32760, S31803, S32205
Nickel-Based Alloy	N08904, N06600, N08825
Copper Nickel Alloy	C70600, C70620
Ferrite	430, 409L
Other Special Material	254SMO, 253MA
High-Temp Material	310S, 309S, S30815
Titanium Alloys	TA2, TA10, TC4

Chemical Composition

Chemical composition
Grade	C	Si	Mn	Cr	Ni
304	≤0.07	≤1.00	≤2.0	18.00~20.00	8.00~10.50
304L	≤0.030	≤1.00	≤2.0	18.00~20.00	9.00~13.00
310S	≤0.08	≤1.00	≤2.0	24.00~26.00	19.00~22.00
316	≤0.08	≤1.00	≤2.0	16.00~18.00	10.00~14.00
316L	≤0.03	≤1.00	≤2.0	16.00~18.00	12.00~15.00
321	≤0.08	≤1.00	≤2.0	17.00~19.00	9.00~13.00
904L	≤0.02	≤1.00	≤2.0	19.00~23.00	23.00~28.00
2205	≤0.03	≤1.00	≤2.0	22.00~23.00	4.5~6.5
2507	≤0.03	≤0.08	≤1.20	24.00~26.00	6.00~8.00

Size

Seam Type	OD	WT
Single Seam	6-914mm	0.5-60mm
Double Seam	630-1524mm	2-80mm
Circular Seam	over 630mm	2-100mm

Density

Grade

ρ (kg/dm³)

Calculation Formula

0Cr18Ni9 (06Cr19Ni10)

SUS304

TP304

00Cr19Ni10 (022Cr19Ni10)

SUS304L

TP304L

7.93

7.9

W=0.02491 t(D-t)

W=0.02482 t(D-t)

0Cr17Ni12Mo2

SUS316

TP316

00Cr17Ni14Mo2

SUS316L

TP316L

8.0

W=0.02513 t(D-t)

Production process of JCOE large diameter straight seam welded pipe:

Steel Coil→ Re-test→ Flat Open and Transverse Shear→ Shear (Longitudinal Shear)→ Edge Planning and Milling→

Butt Welding of Plate→ Forming (Bending/Reeling)→ End Squaring&Tack Welding→ Welding Seam Cleaning→

Automatic Welding→ Radiographic Test→ Solution Treatment→ Rounding→ Straightening→ End Facing Treatment→

Hydrostatic Test→ Pickling Passivation→ Rinse and Dry→ Radiographic Test→ Finished Product Testing→ Marking→

Packing→ Finished Product Warehousing→ Shipping

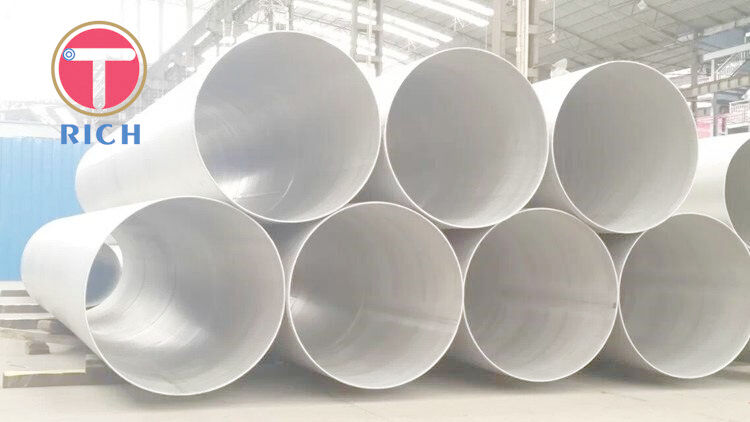

TORICH Grade 304 Od6mm Large Diameter Stainless Steel Pipe 0

Application:

Electric Power, Oil Refining, Nuclear Power, Drinking Water, Offshore Engineering&Shipbuilding, Natural Gas,

Paper Making, Construction

Characteristic:

Good concentricity

Good OD and ID tolerance

High Precision

Stable quality

Smooth Roughness

TORICH QUALITY ASSURANCE

Product Show:

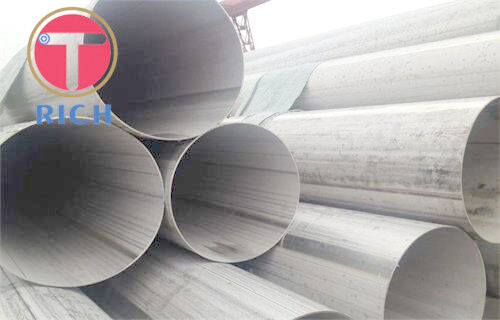

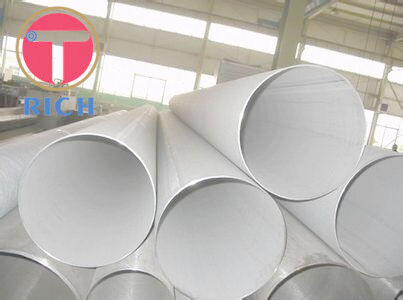

TORICH Grade 304 Od6mm Large Diameter Stainless Steel Pipe 2
