TORICH Fin Embedded Stainless Steel Fin Tube ASTM A213 304 316 1100

TORICH Fin Embedded Stainless Steel Fin Tube ASTM A213 304 316 1100

stainless tube steel

large diameter stainless steel tube

Place of Origin:

ZHEJIANG, CHINA

Brand Name:

TORICH

Certification:

ISO9001, ISO14001, TS16949

Model Number:

ASTM A213

Contact Us
Request A Quote
Product Details
Keyword:
Stainless Steel Fin Tube
Standard:
ASTM A213
Material:
A213, A179 Etc
Production Method:
Seamless Or Welded
Finish:
Annealed
Length:
2-20m
Fin Material:
Aluminum, Copper Alloy, Stainless Steel, Carbon Steel
Finned:
Extruded Fin, Spiral Fin, Embedded G Fin, Low Fin, H Fin, L Fin Etc
Highlight:

stainless tube steel

,

large diameter stainless steel tube

Payment & Shipping Terms
Minimum Order Quantity
5Tons
Price
negotiable
Packaging Details
Stainless Steel Fin Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing.
Delivery Time
30-45 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2000Tons per Year
Product Description
Products Description

TORICH ASTM A213 304 316 Stainless Steel Fin Tube 1100 Aluminum Fin Embedded
Standard
ASTM A213, ASTM A178, ASTM A179, ASTM A192 etc

Fin Material
Aluminum, Copper Alloy, Stainless Steel, Carbon Steel
Finned
Extruded fin, Spiral fin, Embedded G fin, Low fin, H fin, L fin etc

Base Tube
Copper, Aluminum, Steel, Monel, etc

Application
Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc



Size Range:                                 Steel Tube Characteristic:
Bare tube OD: 8-51mm                 High Anti-corrosion
Fin pitch: 1.6-10mm                      Anti-wear
Fin height: less than 17mm           Lower Contact Resistance
Fin thickness: 0.2-0.4mm              Higher Stability
Tube length: 2-20m                       Ability to Prevent Dust



Chemical Requirements
Steel Grade
C
Si
Mn
P
S
Ni
Cr
Mo
etc
SUS 304TB
0.08max
1.00max
2.00max
0.040max
0.030max
8.00-11.00
18.00-20.00
-
-
SUS 304HTB
0.04-0.10
0.75max
2.00max
0.040max
0.030max
8.00-11.00
18.00-20.00
-
-
SUS 304LTB
0.03max
1.00max
2.00max
0.040max
0.030max
9.00-13.00
18.00-20.00
-
-
SUS 310TB
0.15max
1.50max
2.00max
0.040max
0.030max
19.00-22.00
24.00-26.00
-
-
SUS 310STB
0.08max
1.50max
2.00max
0.040max
0.030max
19.00-22.00
24.00-26.00
-
-
SUS 316TB
0.08max
1.00max
2.00max
0.040max
0.030max
10.00-14.00
16.00-18.00
2.00-3.00
-
SUS 316HTB
0.04-0.10
0.75max
2.00max
0.040max
0.030max
11.00-14.00
16.00-18.00
2.00-3.00
-
SUS 316LTB
0.03max
1.00max
2.00max
0.040max
0.030max
12.00-16.00
16.00-18.00
2.00-3.00
-
SUS 316TiTB
0.08max
1.00max
2.00max
0.040max
0.030max
10.00-14.00
16.00-18.00
2.00-3.00
Ti 5xC%max
SUS 317TB
0.08max
1.00max
2.00max
0.040max
0.030max
11.00-15.00
18.00-20.00
3.00-4.00

SUS 317LTB
0.03max
1.00max
2.00max
0.040max
0.030max
11.00-15.00
18.00-20.00
3.00-4.00

SUS 347TB
0.08max
1.00max
2.00max
0.040max
0.030max
9.00-13.00
17.00-19.00
-
Nb 10xC%max
SUS 347HTB
0.04-0.10
1.00max
2.00max
0.040max
0.030max
9.00-13.00
17.00-20.00
-
Nb 8xC%-1.00



Product Show

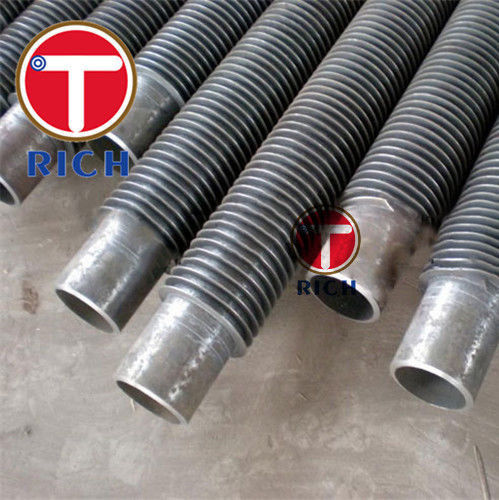

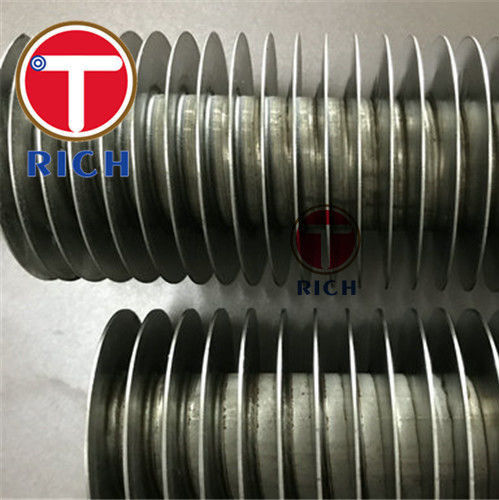

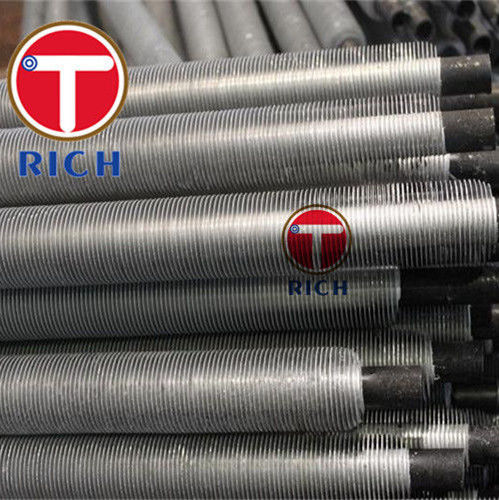

TORICH Fin Embedded Stainless Steel Fin Tube ASTM A213 304 316 1100 0TORICH Fin Embedded Stainless Steel Fin Tube ASTM A213 304 316 1100 1



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
