Modine Finned Copper Tube and Tubing for Radiator
Specifications:
| Fin Tube Max Design Temperature | <450°C |
| Fin Depth | 0.5~3 Mm |
| Product Processing | Extruded, Embedded, High Frequency Welding,etc. |
| Package | In Bundles, Plywood Cases, Wooden Cases With Water-proof Package, Etc. |
| Port | Shanghai |
Applications:
Widely Used In The Manufacture Of Structural And Mechanical Parts,
Such As Petroleum Drill Pipe Used In Automobile Transmission Shaft,
Bicycle Frame And Construction Of Steel Scaffolding, Etc.
With Steel Pipe Manufacturing Annular Parts, Can Improve Material Utilization,
Simplifying The Manufacturing Process, Material Saving And Processing Time,
Such As Rolling Bearing Ring, Jack Sets.
Key words:
Finned heat exchanger,finned heat pipe ,finned aluminum tubing,fin tube radiator

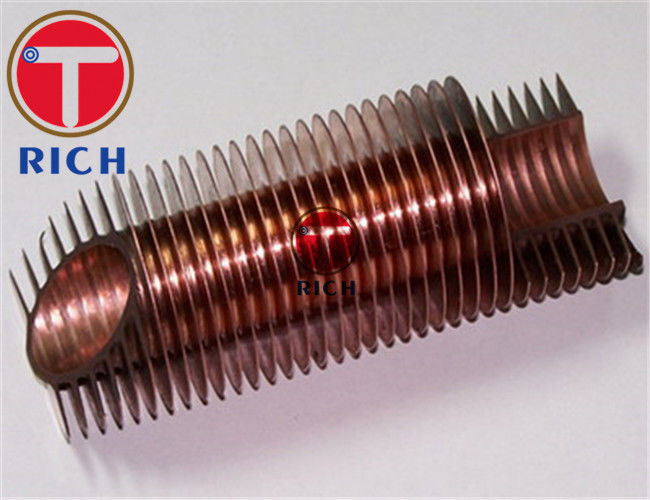

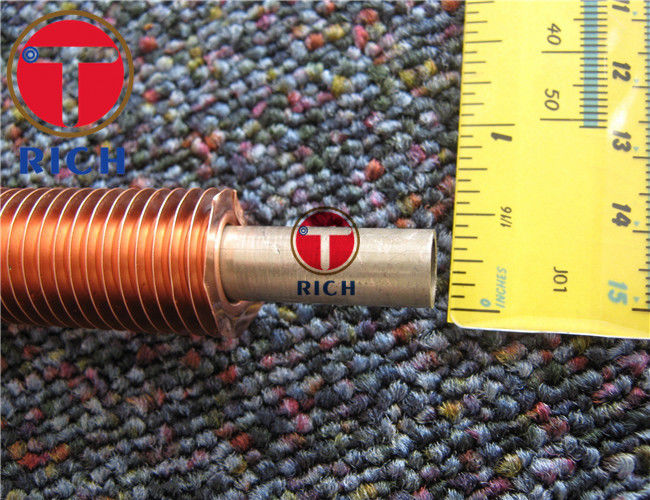

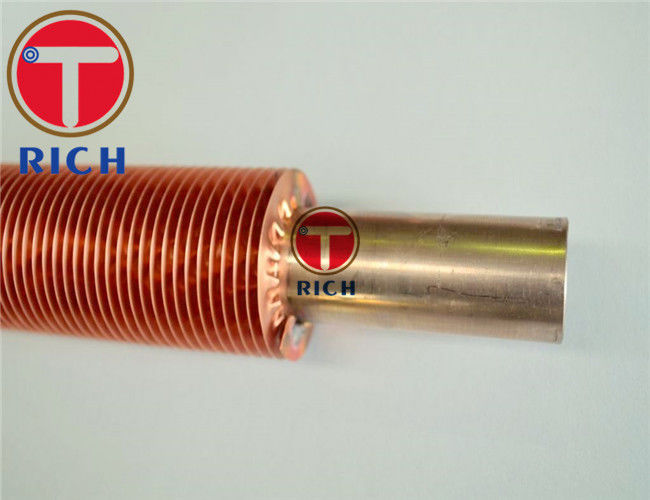

Product Pictures:
Eddy Current Test and Ultrasonic Test:
Quality Inspection in lab:
Packing:
QUALITY CONTROL
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects
BS 633-4 Seamless Cold Drawn Steel Pipes DOM Steel Tube
